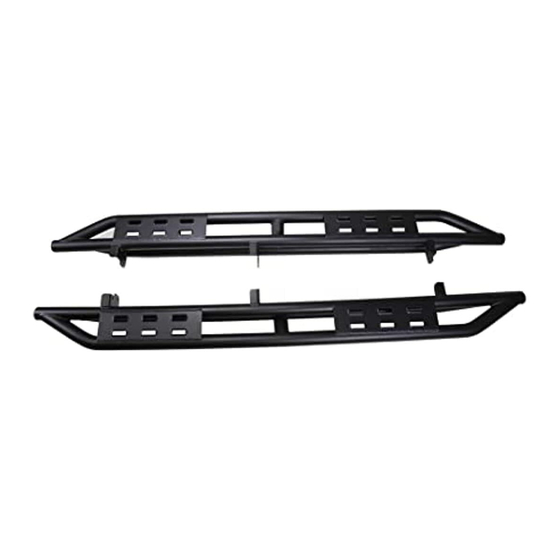

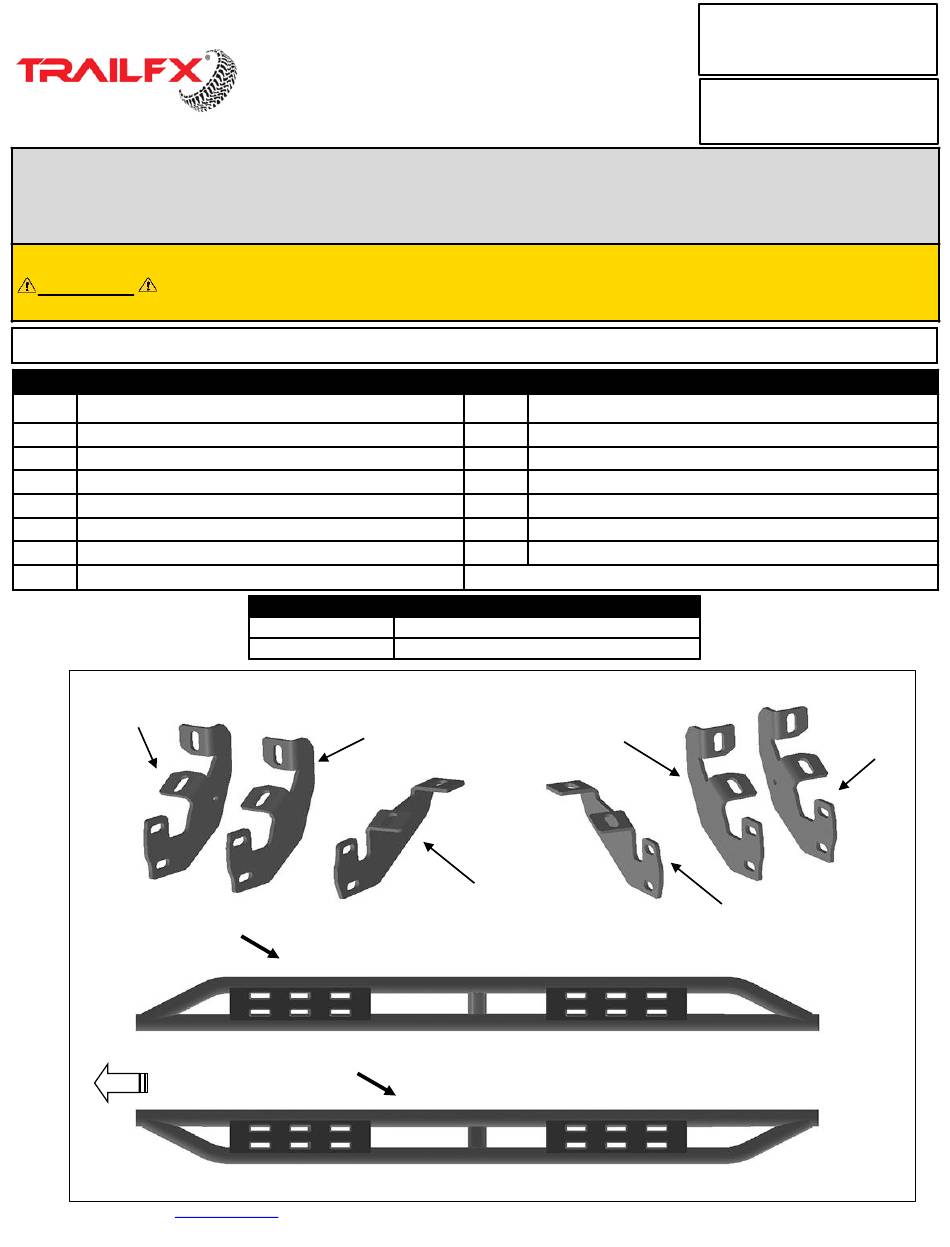

TrailFX BR011T Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer: Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
End User: Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
WARNING
decals from the product. Failure to follow these instructions can result in injury or death.
APPLICATION : 2021- 2022 FORD BRONCO 4DR
Qty
1 Driver/Left Side Armor
1 Passenger/Right Side Armor
1 Driver/Left Front Mounting Bracket
1 Passenger/Right Front Mounting Bracket
1 Driver/Left Center Mounting Bracket
1 Passenger/Right Center Mounting Bracket
1 Driver/ Left Rear Mounting Bracket
(1) Passenger/Right Rear
Mounting Brackets
Passenger/Right
Side Armor
FRONT
*Rear bracket has a small hole.
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
SIDE ARMOR STEPS
Part Description
TORQUE SPECIFICATION
Size
10 MM
(1) Passenger/Right Center
Mounting Brackets
Front Mounting Bracket
Driver/Left
Side Armor
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 03/29/2022-R01
PARTS LIST
Qty
1 Passenger/Right Rear Mounting Bracket
12 10-1.5mm x 35mm Hex Bolts
12 10-1.5mm x 30mm Hex Bolts
12 10mm Lock Washers
36 10mm x 27mm OD x 3mm Flat Washers
12 10mm Nylon Lock Nuts
Torque
34.5 ft/lbs
(1) Driver/Left Center
Mounting Brackets
(1) Passenger/Right
Part Number:
BR011T
60 - 180 minutes
Part Description
(1) Driver /
Left Rear
Mounting
Brackets
(1) Driver/Left Front
Mounting Bracket
Page-1-5
