TrailFX BR010T Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer: Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
End User: Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
WARNING
decals from the product. Failure to follow these instructions can result in injury or death.
: 2021- 2022 FORD BRONCO (FITS UP TO 37x13.5"TIRE W/ -18 TO +18 OFFSET WHEELS)

APPLICATION

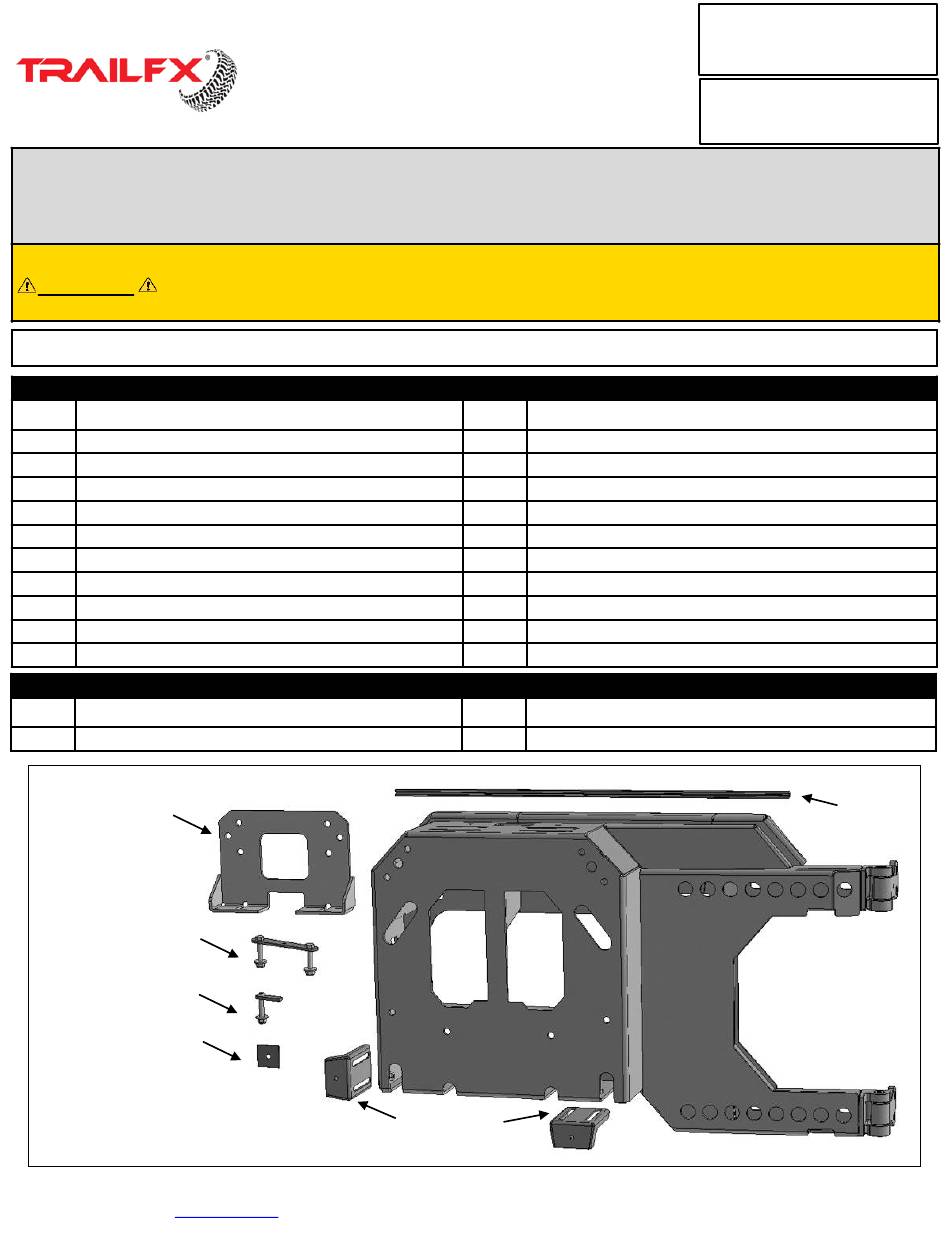

Qty

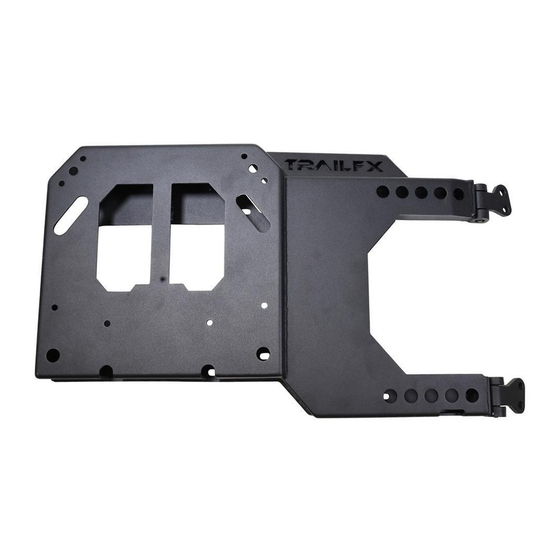

1 Spare Tire Carrier Assembly
1 Brake Light Relocation Bracket
2 Rubber Bumper Relocation Brackets
2 Plastic Plugs
1 Edge Trim
2 8mm Double Bolt Plates
4 8mm Single Bolt Plates
8 8mm Plastic Retainers
8 8-1.25mm x 25mm Hex Bolts
4 8-1.25mm x 35mm Hex Bolts
Size
6 MM
Brake Light
Relocation Bracket
(2) 8mm Double
Bolt Plates
(4) 8mm Single
Bolt Plates
(8) 8mm Plastic
Retainer Washers
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
SPARE TIRE CARRIER HINGE MOUNT
Part Description

TORQUE SPECIFICATION

Torque
102 in/lbs
(2) Rubber Bumper
Mounting Brackets
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 06/29/2022-R01

PARTS LIST

Qty
20 8mm x 22mm x 2mm Flat Washers
12 8mm Lock Washers
8 8mm Nylon Lock Nuts
4 6-1.0mm x 20mm Hex Bolts
10 6mm x 18mm x 1.6mm Flat Washers
4 6mm Lock Washers
4 6mm Hex Nuts
2 6mm x 25mm Self Tapping Screws
1 8mm Wrench
Size
8 MM
Part Number:
BR010T
120 minutes
Part Description
Torque
20 ft/lbs
Edge Trim
