TrailFX NERF BAR A0025S Quick Start Manual

Fits: 2011 - Current
EXCLUDES SXT MODEL
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.

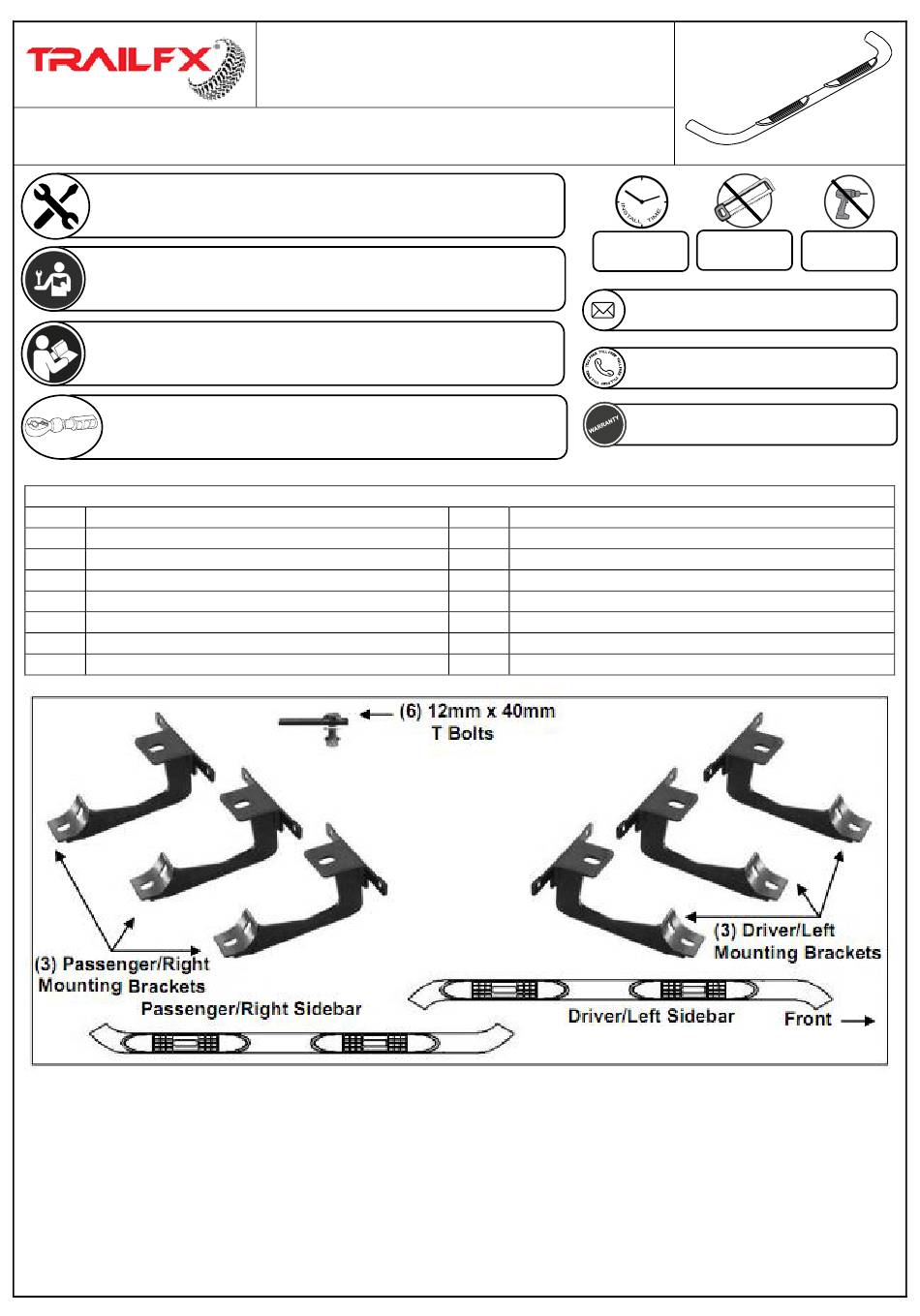

Qty
1 Driver/Left Sidebar
1 Passenger/Right Sidebar
3 Driver/Left Mounting Brackets
3 Passenger/Right Mounting Brackets
6 12-1.75mm x 40mm T Bolts
6 12mm Plastic Retainers
6 12mm x 24mm OD x 2.5mm Flat Washer
INSTALLATION PROCEDURE
1. Starting along the driver side of the vehicle, locate the 3 pairs of (2) small factory holes in the pinch weld, (Figure 1).
Remove the rubber plug filling the oval hole in the bottom of the rocker panel directly in front of the (2) holes, (Figure 1).
2. Select (1} 12mm Bolt Plate and (1} 12mm Plastic Retainer, (Figure 2A). Thread the Retainer part way onto the Bolt Plate.
NOTE: The Retainer will help hold the Bolt Plate in position during Bracket installation. Insert the Bolt Plate into the hole and
rotate 90-degrees to the slot, (Figures 28 & 3). Thread the Retainer down until it is tight against the sheet metal.
Page 1 of 4
Part No. A0025S/B
Dodge Durango 4DR.
Part Description

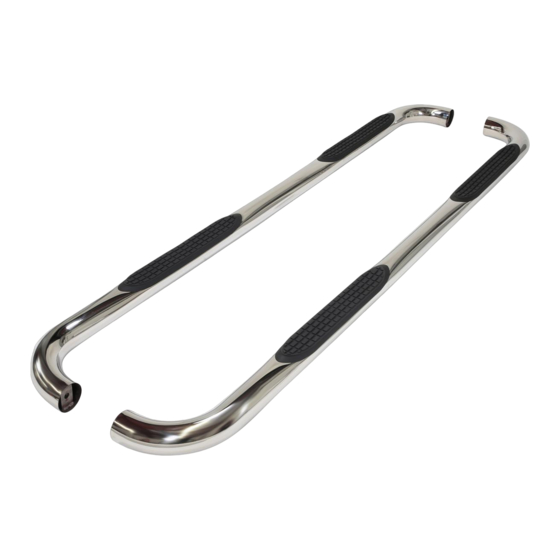

3" Side Bar
PARTS LIST:
Qty
6 12mm Serrated Flange Nuts
12 8-1.25mm x 25mm Hex Bolts
12 8mm x 24mm x 2mm Flat Washers
12 8mm Lock Washers
12 6-1.0mm x 25mm Hex Bolts
24 6mm x 18mm OD x 1.6mm Flat Washers
12 6mm Nylon Lock Nuts
www.TrailFX.com
Cutting Not
30-60 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 051418
