Fits: 2007-2013
2014-2015

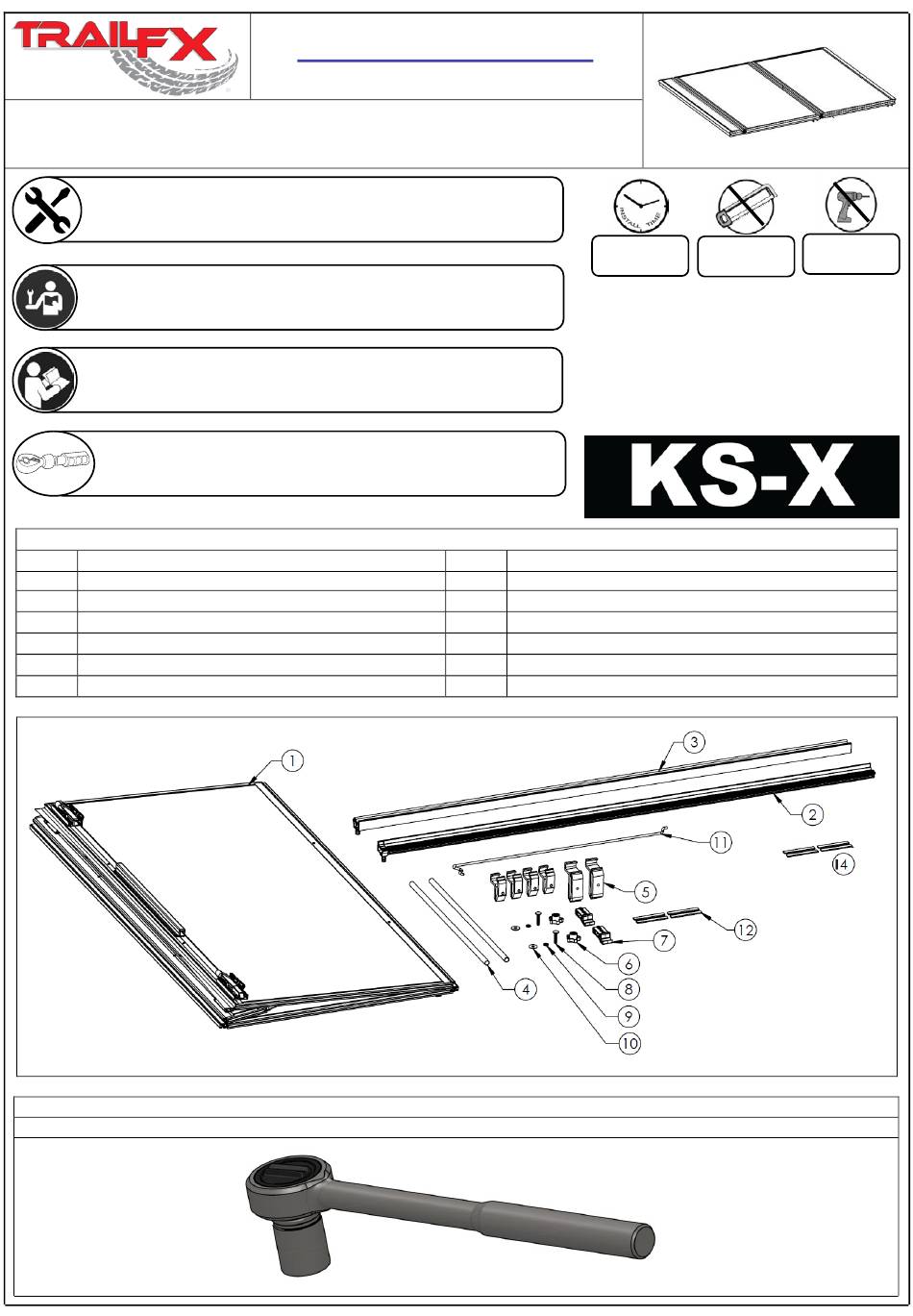

THE TRAILFX BI-FOLD TONNEAU COMES FULLY ASSEMBLED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. A TORQUE WRENCH IS NOT NECESSARY.
IF PREFERRED, TORQUE IS APX 75 INCH LBS.
Qty
1
Hard Folding Cover (1)
Driver (Left) Mounting Rail (2)
1
Passenger (Right) Mounting Rail (3)
1
Drain Tubes (4)
2
Clamps (5)
6
Star Knobs (6)
2
1.
Ratchet & 1/2" Socket
Bi-Fold Tonneau Cover
TFX1404 - Chevrolet Silverado/GMC Sierra 6.5'
TFX1406 - Chevrolet Silverado/GMC Sierra 5.7'
Part Description
Components
PARTS LIST:
Qty
2
Front Mounting Retainer (7)
Front Mounting Bolts (8)
2
2
Lock Washers (9)
2
Flat Washers (10)
1
Prop Rod (11)
4
Rubber Filler Strips (12)
Tools Required
Cutting Not
30-60 min
Required
Part Description
Drilling Not
Required
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX TFX1404
Summary of Contents for TrailFX TFX1404
- Page 1 Bi-Fold Tonneau Cover Fits: 2007-2013 TFX1404 - Chevrolet Silverado/GMC Sierra 6.5’ 2014-2015 TFX1406 - Chevrolet Silverado/GMC Sierra 5.7’ THE TRAILFX BI-FOLD TONNEAU COMES FULLY ASSEMBLED. Drilling Not Cutting Not 30-60 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
-
Page 2: Installation Procedure
INSTALLATION PROCEDURE For GMC 6.5’ Beds Only - Stick the rubber spacers between the plastic bed rail cap and the bed rail, adjacent to the front and center clamps. (Identify the location of the spacers by holding the mounting rail up to the bed rail of the truck and marking the location of the clamps on the truck. - Page 3 5 & 6. Slide the two front mounting bolts into the track on the underside of the tonneau cover. Place the tonneau onto the mounting rails with the smallest panel towards the cab of the truck and with the Front flap covering the bulkhead.
- Page 4 8. Carefully unfold the cover. Position the cover so it is centered side to side and front to back on the truck bed. Test the rear latching assembly for smooth operation as this is the best indicator of the cover being positioned correctly.
- Page 5 12 & 13. Once in the open position place a front retainer clamp, flat washer, lock washer and the star knob on the front mounting bolt underneath the cover and hand tighten. Be sure the front retainer clamp is clamping to the side rail correctly.
- Page 6 OPERATION INSTRUCTIONS 1 & 2. To open the cover: Lower the tailgate and pull the cable. While pulling on the cable lift the panel up and towards the cab. 3, 4 & 5. If this is as far as you would like to open the cover, you can secure it in this position. Release the strap from the stowed position by squeezing the tabs.
- Page 7 Failure to follow these care instructions will void warranty: Clean with soap and water only. Cover must be secured when vehicle is in motion. See instructions for recommended driving positions. An unsecured cover can result in damage not covered by this warranty. How difficult is it to install the tonneau cover? Installing of tonneau cover is easy, please follow the steps in installation manual carefully.
