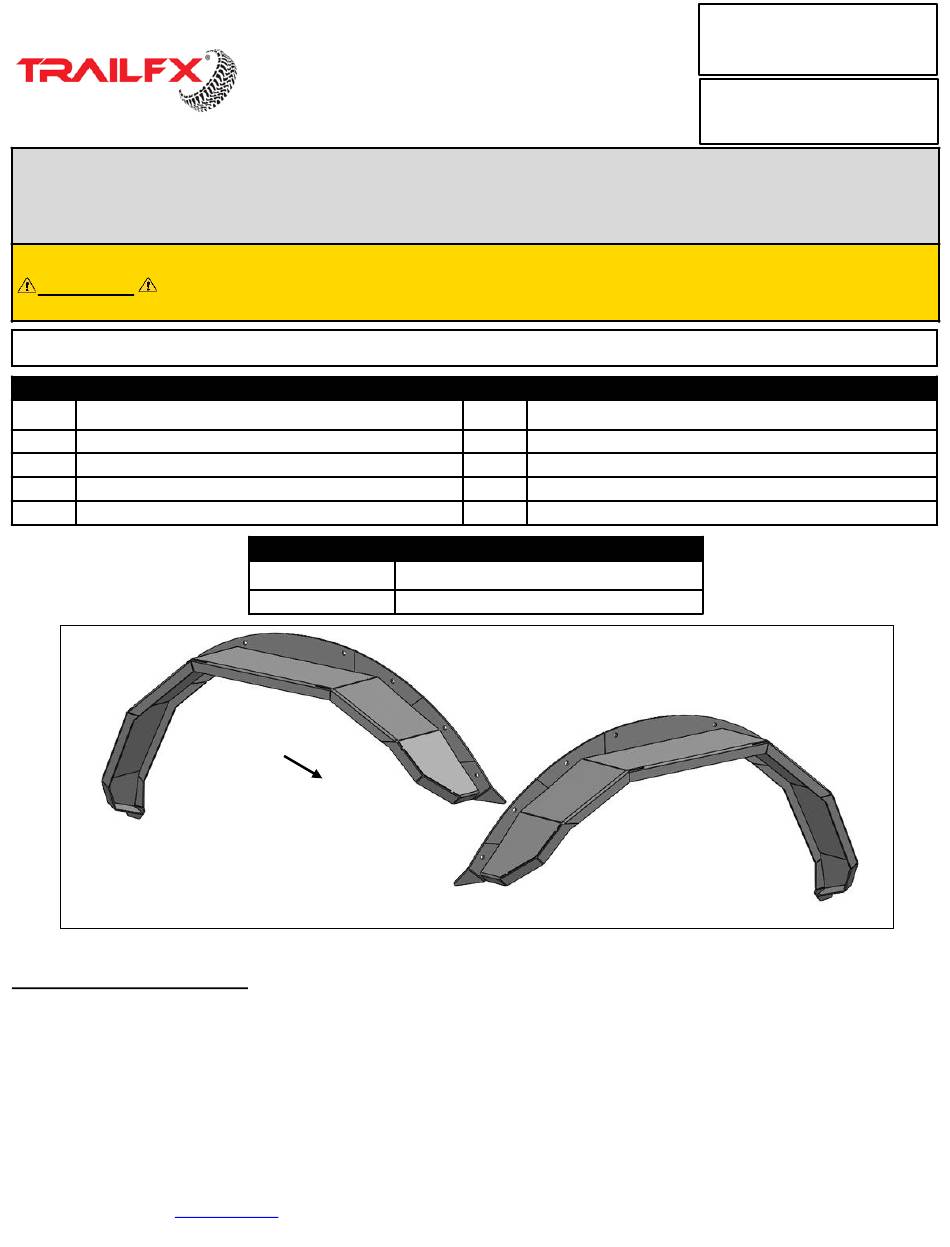

TrailFX BR007T Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer:
End User:
WARNING
APPLICATION
: 2021- 2022 FORD BRONCO 2DR & 4DR
Qty
1 Driver/Left Front Fender Flare
1 Passenger/Right Front Fender Flare
16 6mm x 25mm Button Head Bolts
16 6mm x 12mm OD x 1.6mm Flat Washers
Passenger/Right Fender
INSTALLATION PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY.
ASSISTANCE IS RECOMMENDED.
1. Start installation on the Driver/Left side of the vehicle. Locate the (5) plastic clips attaching the fender to the body of the
vehicle, (Figure 1). Rotate counterclockwise to release the clips. Carefully pry the fender away from the vehicle and place in
a safe location, (Figure 2).
2. Locate the hardware attaching the fender liner to the outer edge of the wheel well. Temporarily remove the hardware to
access the backside of the fender location.
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
FRONT ANGLE FENDER FLARES
Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
decals from the product. Failure to follow these instructions can result in injury or death.
Part Description
TORQUE SPECIFICATION
Size
6 MM
Front
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 05/20/2022-R01
PARTS LIST
Qty
16 6mm Lock Washers
16 6mm Nut Plates
1 4mm Hex Wrench
Torque
102 in/lbs
Driver/Left Fender
Part Number:
BR007T
60 - 180 minutes
Part Description
Page-1-4
