Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
End User:
Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
WARNING
decals from the product. Failure to follow these instructions can result in injury or death.
APPLICATION
: 2021- 2022 FORD BRONCO 2DR
Qty
1
Driver/Left Side Armor
1
Passenger/Right Side Armor
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
Passenger/Right
Sidebar
Visit
www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions

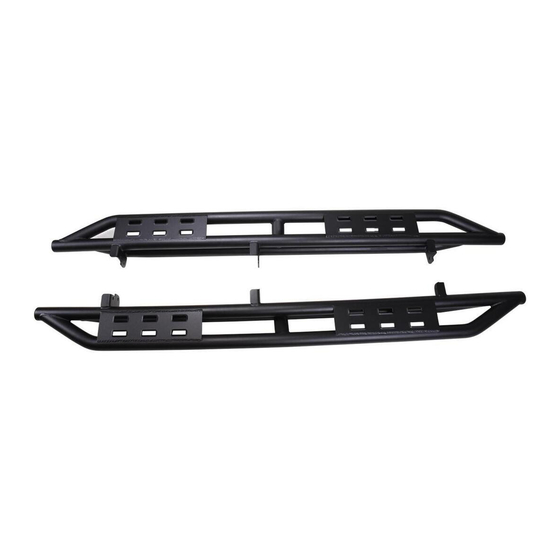

SIDE ARMOR STEPS
Part Description
TORQUE SPECIFICATION
Size
10 MM
(1) Passenger/Right Rear
Mounting Bracket
(1) Passenger/Right Front
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 05/20/2022-R01
PARTS LIST
Qty
8
10mm x 35mm Hex Bolts
8
10mm x 30mm Hex Bolts
8
10mm Lock Washers
24
10mm x 27mm OD x 3mm Flat Washers
8
10mm Nylon Lock Nuts
Torque
34.5 ft/lbs
(1) Driver/Left Rear
Mounting Bracket
Mounting Bracket
(1) Driver/Left Front
Mounting Bracket
Part Number:
BR012T
60 - 180 minutes
Part Description
FRONT
Page-1-4
