PRODUCT DETAILS:

Part Number:

ECU Number:

Tail Harness Length Required:

TBM/Lug Part Number:

FITTING DETAILS:

Towbar Installation Time:

Wiring Installation Time:

Total Installation Time:

Bumper Cut Required:

49-75 Pacific Drive Keysborough, VIC 3173

Phone: 1800 812 017

Email: info@haymanreese.com.au

03282RW

Maximum Towing Braked:

04826

Maximum Towing Unbraked:

1200 mm.

Maximum Static Ball Load:

21325

30 Mins.

Vehicle Coding Required:

50 Mins.

RPA Disable/Other:

80 mins.

Note:

Page 1

INSTALLATION INSTRUCTIONS

PART NUMBER

•

Use Tail Part Number to automatically disable

RPA where fitted.

TOWBAR

03282RW

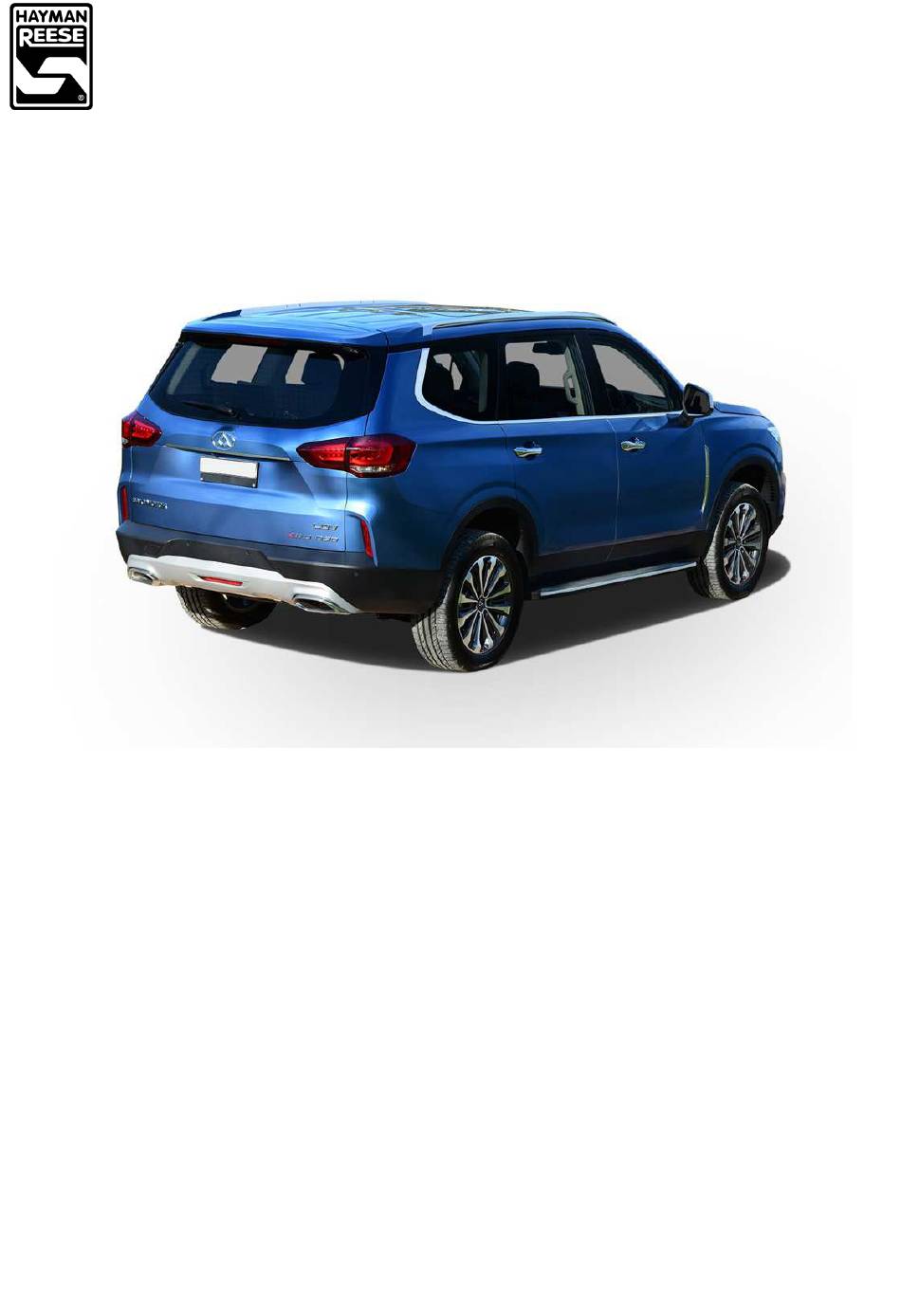

LDV D90

2000

750

200

YES

REV A 04-10-19

Need help?

Do you have a question about the 03282RW and is the answer not in the manual?

Questions and answers

Summary of Contents for Hayman Reese 03282RW

Page 1 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 PRODUCT DETAILS: Part Number: 03282RW Maximum Towing Braked: 2000 ECU Number: 04826 Maximum Towing Unbraked: Tail Harness Length Required: 1200 mm. Maximum Static Ball Load: TBM/Lug Part Number: 21325 FITTING DETAILS: Towbar Installation Time: 30 Mins.
Page 2 WARNING: Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing.
Page 3 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 TOWBAR ASSEMBLY DIAGRAM ITEM DESCRIPTION ITEM DESCRIPTION LDV D90 WELDED ASSEMBLY SET SCREW HEX HD M12x40x1.75P LHS SIDE ARM ASSEMBLY NUT HEX M12x1.75P RHS SIDE ARM ASSEMBLY WASHER PLAIN M14x28x3 BUMPER TAB...
Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 1. Drop spare wheel and exhausts from hangers; support exhausts with a sling if necessary. 2. Remove 2 x bumper brackets securing bumper in place, secured by 3 x screw per bracket.
Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 4. Attach 2 x bumper tabs to back of central welded assembly using 1 x tek screw per tab. 5. Using two people, raise centre section up to sidearms. Attach with 3 x M12 bolts per side, complete with nuts and washers.
Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 7. For the plug bracket, find an appropriate position on the bumper. Mark out and drill 2 x ø5mm holes 69mm apart on bumper skin to support plug bracket. 8. Reattach exhausts to hangers and raise spare wheel.
Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 10. In the luggage compartment, fold the rear row seats forward (1). 11. Remove the rear sunshade (2). 12. Remove the rear boot liner. 13. Remove the tool cover and tray (3).
Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 19. Dislodge the LHS (1) and RHS (2) luggage compartment trims. 20. Remove the two screws (1) securing the rear tail lights (2). 21. Dislodge the rear tail lights and disconnect the tail light wiring.
Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 25. Route the trailer patch connector through the grommet hole (1) and to the outside of the vehicle. 26. Seat the grommet (2) on the trailer patch in the vehicle hole. Note: Ensure grommet is seated correctly and makes a good seal.
Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 32. For auto RPA disable, locate the brown wire (1) on the RPA wiring loom running near the down to the floor. 33. Peel back the tape covering to expose the wires inside.
Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 42. Outside the vehicle, pick up the harness under the rear RHS. 43. Connect the power harness one way connector to the trailer patch. 44. Route the power harness (1) up the vehicle towards the vehicle battery.
Page 12 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03282RW LDV D90 52. Test the trailer patch function using a light board or multi-meter. 53. Re-fit all removed parts and secure all fasteners, ensuring there are no squeaks or rattles. 54. Place the fitting instructions in the glove box after fitment.
Page 13: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following.
Page 14 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
