UG-1952

PLUG-IN DETAILS

The full screen ADMV8913 chip plug-in with labels is shown in
Figure 7. The labels correspond to items listed in Table 1, which
describes the functionality of each section. For additional detailed
programming, refer to the
J1
A
Table 1. ADMV8913 Block Diagram Label Functions (See Figure 7)
Label Function
Use the CONFIGURATION section to initialize the ADMV8913-EVALZ.
A
Load Settings from CSV: click the ... button to select which CSV file to load into the CONFIGURATION section.
Check to Load Settings: once a file has been selected, select this check box to load the CSV file contents into the
CONFIGURATION section. Note that a check mark does not appear when the check box is selected.
WR Mode Settings: select the HPF and LPF settings for SPI write mode.
SFL Settings: select the SPI fast latch (SFL) settings that are used when the chip is placed into the SPI fast latch mode. Note that
this function is not shown in Figure 7. Scroll down in the CONFIGURATION section to view this function.
Lookup Table 0 to 15: define the configuration for lookup table (LUT)0 to LUT15.
Lookup Table 16 to 31: define the configuration for LUT16 to LUT31.
Lookup Table 32 to 47: define the configuration for LUT32 to LUT47.
Lookup Table 48 to 63: define the configuration for LUT48 to LUT63.
Lookup Table 64 to 79: define the configuration for LUT64 to LUT79.
Lookup Table 80 to 95: define the configuration for LUT80 to LUT95.
Lookup Table 96 to 111: define the configuration for LUT96 to LUT111.
Lookup Table 112 to 127: define the configuration for LUT112 to LUT 127.
Summary: click this button to review the settings for the initial setup.
Apply: click this button to apply the settings to the chip. Note that clicking Apply Changes (J1) does not update the changes in this
section. In addition, at startup, the main diagram user controls cannot be updated until the Apply button is clicked at least once.
Restore Software Defaults: click this button to zero out the CONFIGURATION section prior to loading a different CSV file.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
ADMV8913 data sheet.
J2 J3 J4 J5 J6

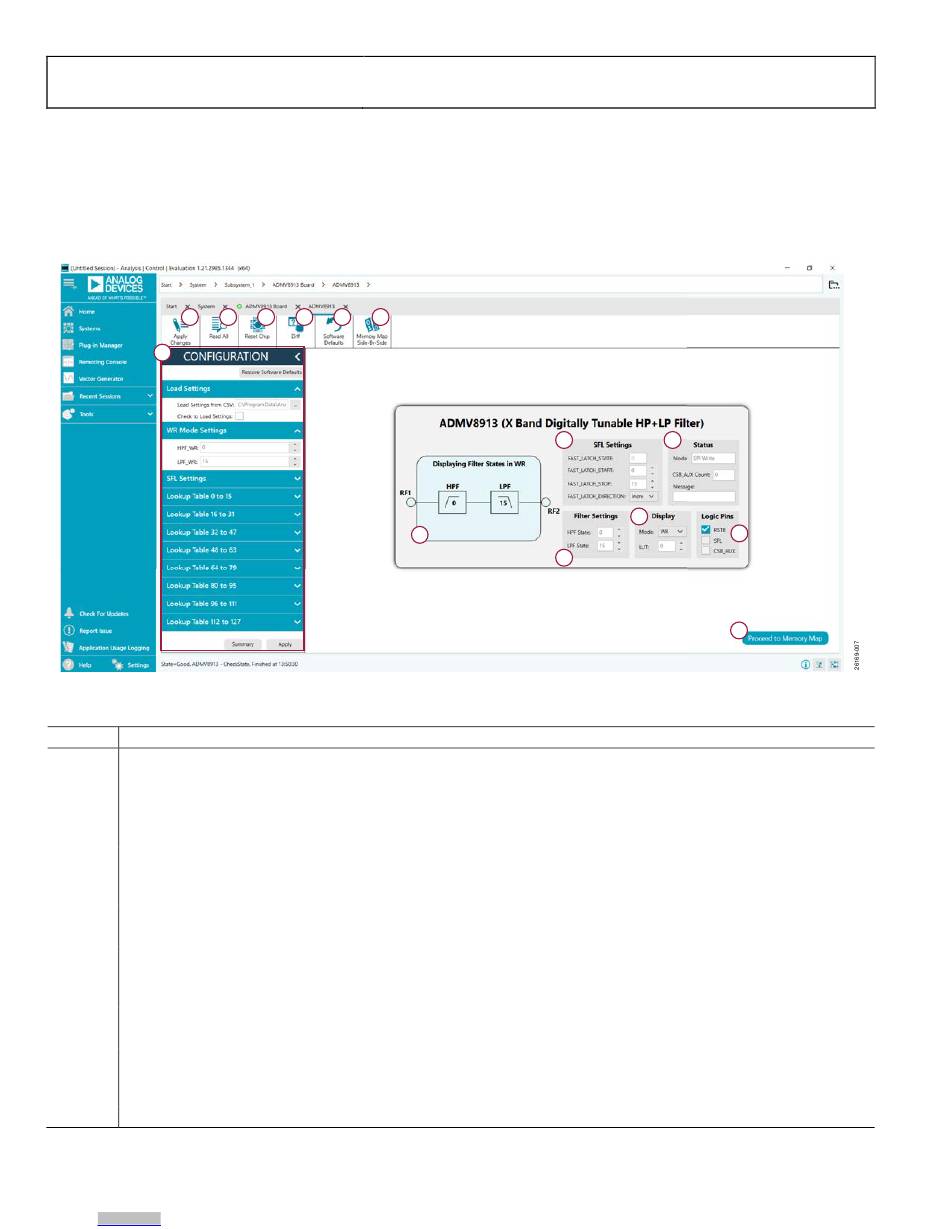

Figure 7. ADMV8913 Chip Plug-In with Labels
ADMV8913-EVALZ
B
D
E
Rev. 0 | Page 6 of 17
Evaluation Board User Guide
C
F
G
H
