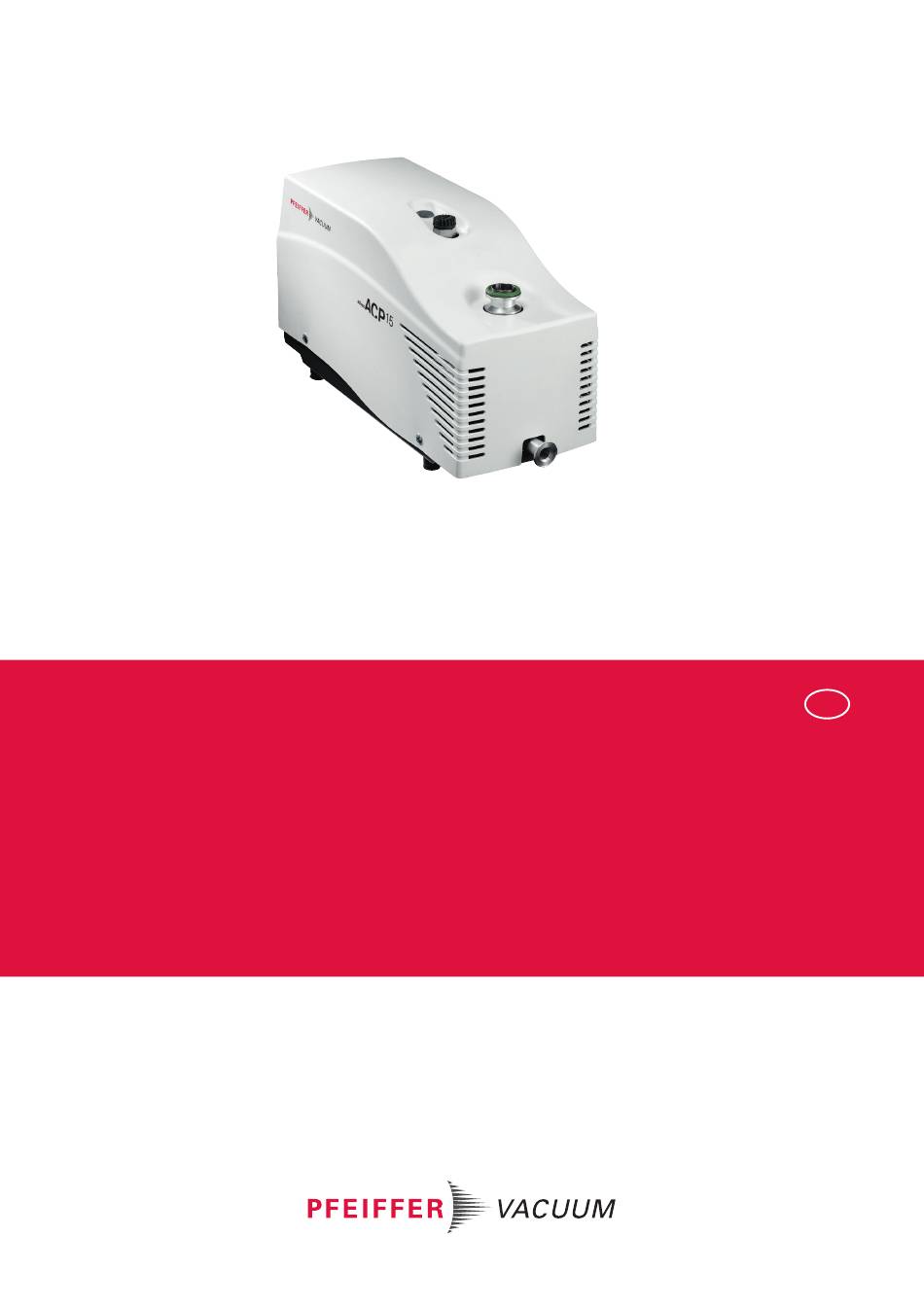

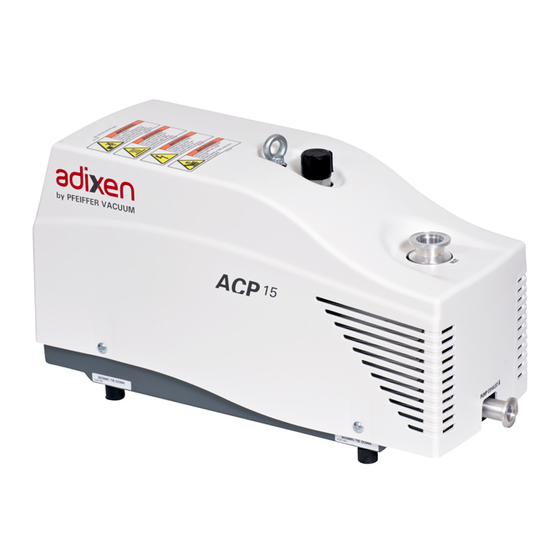

- Page 1 OPERATING INSTRUCTIONS Translation of the Original ACP 15 Multi-stage Roots pump, air cooled...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Products concerned 1.1.2 Applicable documents Conventions 1.2.1 Pictographs 1.2.2 Target group 1.2.3 Instructions in the text 1.2.4 Labels Safety General safety instructions 2.1.1 Safety instructions 2.1.2 Precautions Intended use Foreseeable misuse Transportation and Storage Receipt of the product... - Page 4 7.4.2 Preparing the pump for shipping Decommissioning Extended Immobilization Recommissioning Disposal Malfunctions Trouble at pump start-up The pump runs incorrectly Service solutions from Pfeiffer Vacuum Accessories Technical data and dimensions 12.1 General 12.2 Technical characteristics 12.2.1Environmental conditions 12.2.2Nitrogen characteristics 12.2.3Electrical characteristics 12.3 Dimensions...
- Page 5 List of tables List of tables Tbl. 1: Rotation speed Tbl. 2: S2 output wiring procedure: example Tbl. 3: Default serial link configuration Tbl. 4: LED meaning on a pump equipped with a three-phase frequency converter Tbl. 5: The various gas ballast models Tbl.
- Page 6 Remote control connector wiring Fig. 4: Male 15-pin RS-485 connector Fig. 5: Cover plug with strap for operation in local mode Fig. 6: Dimensions ACP 15 versions SD - G Fig. 7: Wheel set dimensions Fig. 8: Fastening set dimensions 6/46...
-
Page 7: About This Manual
Keep the manual for future consultation. 1.1 Validity These operating instructions are for customers of Pfeiffer Vacuum. They describe the function of the designated product and provide the most important information for safe usage of the product. The de- scriptions comply with applicable directives. All information provided in these operating instructions refer to the current development status of the product. -
Page 8: Labels
About this manual Sequence of multi-part action steps The numerical list indicates an action with multiple necessary steps. 1. Step 1 2. Step 2 3..1.2.4 Labels Pump Start/Stop INLET Pump inlet connection PUMP EXHAUST Pump exhaust This label indicates the voltage of the equipment to which the pump is to be P0385E4 Reference connected. - Page 9 About this manual Fig. 1: Safety label locations 1 Security warning Electric shock hazard 2 Electrical shock hazard Moving parts 3 Heavy object Seismic brackets anchor point 4 Hot surface 9/46...
-
Page 10: Safety
Safety 2 Safety 2.1 General safety instructions This document includes the following 4 risk levels and 1 information level. DANGER Imminent danger Indicates a hazardous situation which, if not avoided, will result in death or serious injury. ► Instructions on avoiding the hazardous situation WARNING Possibly imminent danger Indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 11 Safety WARNING Danger of electrocution by contact during maintenance or overhaul There is an electric shock hazard in case of contact with a product powered on and not electrically isolated. ► Before carrying out any work, set the main switch to O. ►...
-
Page 12: Precautions
Safety 2.1.2 Precautions Duty to provide information on potential dangers The product holder or user is obliged to make all operating personnel aware of dangers posed by this product. Every person who is involved in the installation, operation or maintenance of the product must read, understand and adhere to the safety-related parts of this document. -
Page 13: Transportation And Storage
Transportation and Storage 3 Transportation and Storage 3.1 Receipt of the product Condition of the delivery ● Check that the product has not been damaged during transport. ● If the product is damaged, take the necessary measures with the carrier and notify the manufacturer. -
Page 14: Storage
(see chapter “Dimensions”, page 41). 3.3 Storage Pfeiffer Vacuum recommends storing the products in their original transport packaging. Storing a new pump 1. Keep the pump wrapped in its protective envelope. 2. Always leave the inlet, the exhaust blanking plates in place. -
Page 15: Product Description
The pump is compatible with traces of corrosive gases. A purge gas stream protects low- and high- pressure ball bearings and dilutes trace amounts of corrosive gases. Please contact Pfeiffer Vacuum for more detailed information on specific applications. 4.2 Human/Machine Interface Fig. -
Page 16: Installation
Installation 5 Installation 5.1 Installation The pump needs to operate in a horizontal position resting on its feet, the pumping axis must be verti- cal, and the pump inlet must be on top. 1. Determine where the pump will be located. 2. Handle the pump using a hoist. 3. -
Page 17: Connection On The Pump Inlet Side
The gas purge consists of injecting an inert gas into the pump. In this manual, the inert gas will be called ‘nitrogen’, as it is the most commonly used gas. For more information about the type of purge gas, contact your Pfeiffer Vacuum service center. DANGER... -
Page 18: Check That The Installation Is Leaktight
Installation Version G A gas purge circuit protects the low- and high-pressure ball bearings and dilutes trace amounts of corro- sive gases. The pump must be connected to a dry and filtered nitrogen supply that has the required characteristics (see chapter “Nitrogen characteristics”). 1. -
Page 19: Customer Electrical Installation Protection
Installation Procedure for restarting the pump after a power failure To restart the pump: 1. switch off the main power (main switch at position O), 2. eliminate the cause of the fault, then 3. wait for about 15 seconds, 4. flip the main switch to position I. The pump has thermal sensors that prevent start-up at certain temperatures (see chapter “Preliminary precautions for use”). -
Page 20: Logic Input Wiring
Installation ● remotely control the start and stop functions, ● set the rotation speed. The connector wiring is the customer’s responsibility. 5.5.1 Logic input wiring There are dry contact inputs. Do not add more connections than those provided: S1, S3, S4 and S5. Fig. -
Page 21: Wiring The Rs-485 Serial Link
Installation NOTICE S2 output wiring precautions ► Do not connect a relay between contacts 5 and 6 of the S2 output: the relay coil could create an induced current which may damage the frequency converter. ► Do not apply a current greater than 35 mA to the output: a greater current would damage the frequency converter. -
Page 22: Setting
Installation Description Set Point Stop bit Echo Tbl. 3: Default serial link configuration V-(B) V+(A) (RS-485) (RS-485) +5 V-10 mA max. Fig. 4: Male 15-pin RS-485 connector Assignment RS-485: V- RS-485: V+ +5 VDC -10 mA max (only for RS-485) It is the user’s responsibility to use shielded links and connections in compliance with EMC and electri- cal safety standards. -
Page 23: Command List
100 Hz ting Set point speed can be set in steps of 10 min ● Minimum speed: 35 Hz for ACP 15 ● Maximum speed: 100 Hz for ACP 15 Note: Before changing the set point speed with the RPM or- der, the SBY order must be sent. - Page 24 Installation Order Description Functions rame- none Pump status Example: #adr,xxxxxx yyyyyy,zzzzzz,sssss,iiii,www,ppp,vvv,ttttt<CR> ● sssss = pump rotation speed (min ● ppp = frequency converter tem- ● iiii = motor power (W) perature (°C) ● vvv = reserved (by default 000) ● www = reserved (by default 000) ●...
-
Page 25: Operation
● Do not drain the pump: this operation is carried out during pump overhaul by our serv- ice centers. Safety data sheets You can obtain the safety data sheets for operating fluids from Pfeiffer Vacuum on request, or from the Pfeiffer Vacuum Download Center. -
Page 26: Matrix Gas/Applications
Operation 4. Check that the inlet pressure is not higher than atmospheric pressure. If the pressure is too high, it can damage the product. 5. Check that the ambient temperature is well within the permitted operating range. 6. Check the exhaust line during pumping to prevent the risks related to excess overpressure. 6.2 Matrix gas/applications You are advised to use the appropriate pump version according to the applications and the nature of the gases pumped and apply the usual precautions to guarantee the reliability and safety of the procedure. -
Page 27: Local Mode Operation
Operation ● LOCAL The pump is controlled by a switch: I/O. The pump runs independently of the equipment into which it has been integrated. ● REMOTE The pump is remote controlled by opening or closing different dry contacts. Its rotation speed is configured on the terminals of the remote control connector (see chapter “Remote mode opera- tion”. -
Page 28: Operation In Rs-485 Link Mode
Operation Note: when the S1 contact is closed, sending the 'ACPON' or 'ACPOFF' command via the serial link doesn’t disturb the operation (‘context error’ response on serial link). Influence of rotation speed on pump performances Pump performances are guaranteed for a nominal speed of 100 Hz. Changing the rotation speed affects the pumping speed and the ultimate pressure of the pump. -
Page 29: Operation Monitoring
Operation 1. Isolate the pump in the pumping line (isolation valve at pump inlet, closed) and let it run for 1 hour with gas ballast or purge open. 2. Send an ‘ACPOFF’ order via the serial link: the pump stops. Restarting after emergency stop (using the equipment) The emergency stop is managed by the equipment in which the pump is integrated. -
Page 30: Purge Operation
Operation The gas ballast function can be automated: this accessory is available upon request (see chapter “Ac- cessories”). Likewise, the gas ballast can be supplied with filtered dry air. Contact our service center. Gas ballast with permanent fil- Gas ballast closed with a plug ON/OFF manual gas ballast Tbl. -
Page 31: Maintenance
Maintenance 7 Maintenance 7.1 Maintenance safety instructions DANGER Risk to health posed by residual traces of process gases inside the pump Process gases are toxic and hazardous to health. They can cause poisoning and be fatal. Before dis- connecting the pump, any remaining traces of process gases must be eliminated. ►... -
Page 32: Maintenance Frequency
7.2 Maintenance frequency Operation Frequency ACP 15 Pump overhaul by the Pfeiffer Vacuum service center 22,000 hours or 4 years All versions Maintenance frequencies are typical values for non-corrosive applications. For applications using G ver- sion, values can be reduced. Contact our service center (see chapter “Service solutions from Pfeiff-... -
Page 33: Disconnecting The Pump From The Installation
● Connect the cover plug (delivered with the pump) to the remote connector. Product transport and shipping For product transport and shipping, pack it in the original packaging and follow the instructions from the Service procedure (see chapter “Service solutions from Pfeiffer Vacuum”, page 36). 33/46... -
Page 34: Decommissioning
The manufacturer shall only be required to take back equipment that is complete and unmodified, using Pfeiffer Vacuum SAS original spare parts, sold by Pfeiffer Vacuum and including all assemblies and sub-assemblies. -
Page 35: Malfunctions
Malfunctions 9 Malfunctions 9.1 Trouble at pump start-up Read the safety instructions for maintenance. Symptom Cause Remedy The pump does not start and the Main switch ● Check that the main switch is at the I position. fan does not run The pump supply voltage is ●... -
Page 36: Service Solutions From Pfeiffer Vacuum
We are consistently striving to perfect our core competence, service for vacuum components. And our service is far from over once you’ve purchased a product from Pfeiffer Vacuum. It often enough really just begins then. In proven Pfeiffer Vacuum quality, of course. - Page 37 Service solutions from Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the details in the declaration of contamination. a) Neutralize the product with nitrogen or dry air. b) Close all openings with airtight blank flanges. c) Seal the product in appropriate protective film.
-
Page 38: Accessories
Accessories 11 Accessories Refer to the accessory operating instructions to install the accessory. Accessory Description Model Dimension Inlet filter Stops particles and dust with a diameter greater IPF 25 111649 than 25 microns. DN 25 ISO-KF Exhaust silencer Reduces the noise level at the exhaust when the ES 25 S 109873 pump operates at high pressures on clean appli-... -
Page 39: Technical Data And Dimensions
Technical data and dimensions 12 Technical data and dimensions 12.1 General Basic principles for the Technical Data of Pfeiffer Vacuum dry compact multi-stage Roots pumps: ● Recommendations of PNEUROP committee PN5 ● ISO 21360; 2007: “Vacuum technology - Standard methods for measuring vacuum-pump perform- ance - General description”... -
Page 40: 1Environmental Conditions
Technical data and dimensions mbar Torr | mm Hg Torr | mm Hg 1.33 133.32 1.33 0.133 1.33 · 10 1 Pa = 1 N/m Tbl. 7: Conversion table: Pressure units mbar l/s sccm Torr l/s Pa m atm cm mbar l/s 59.2 0.75... -
Page 41: 3Electrical Characteristics
1.5 mm 1 mm 12.3 Dimensions Dimensions in mm Exh. Fig. 6: Dimensions ACP 15 versions SD - G 1. Inert gas purge connection (version G) 2. Hoisting ring (Single-Phase model) 3. Hoisting rings (Three-Phase model) ACP 15/ACP 15 G Single-Phase... -
Page 42: Weight Distribution And Center Of Gravity
Wheel set dimensions Fig. 8: Fastening set dimensions BA = 300 mm 12.4 Weight distribution and center of gravity Center of gravity Model Center of gravity (mm) Weight per foot (DaN) ACP 15/ACP 15 G Single-phase ACP 15/ACP 15 G Three-phase 42/46... -
Page 43: Load On Foot With Fastening Set
Pump frame M6 x 20 screw, qty 4, grade 12-9 Fastening plate, thickness: 6 mm (delivered in the fastening set) Model Load by foot (N) ACP 15/ACP 15 G Traction (Fa) Single-phase / Three-phase Shearing (Fr) 43/46... -
Page 45: Declaration Of Conformity
The person responsible for drawing up the technical file is Mr. Frédéric Rouveyre, Pfeiffer Vacuum SAS, 98, avenue de Brogny B.P.2069, 74009 Annecy cedex, France. Multi-stage Roots Pump, air cooled ACP 15 - ACP 15 G Harmonized standards and national standards and specifications applied: NF EN 1012-2: 2009...
