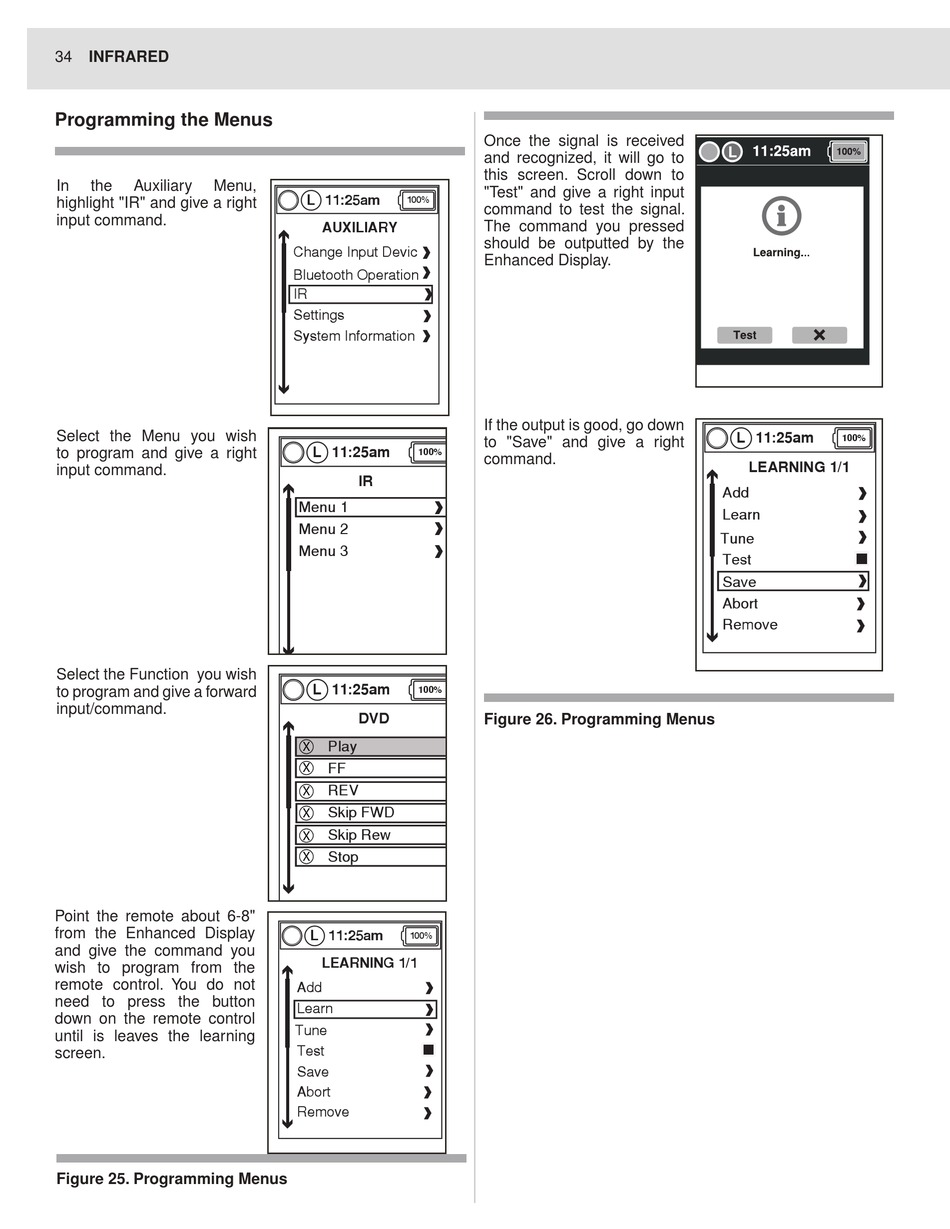

Quantum Q-LOGIC 3 Programming Manual page 34

34 INFRARED
Programming the Menus
In the Auxiliary Menu,
highlight "IR" and give a right
input command.
Select the Menu you wish
to program and give a right
input command.
Select the Function you wish
to program and give a forward
input/command.
Point the remote about 6-8"
from the Enhanced Display
and give the command you
wish to program from the
remote control. You do not
need to press the button
down on the remote control
until is leaves the learning
screen.
Figure 25. Programming Menus
 







 





 



X

X

X

X

X

X
 









Once the signal is received
and recognized, it will go to
this screen. Scroll down to
"Test" and give a right input
command to test the signal.
The command you pressed
should be outputted by the
Enhanced Display.
If the output is good, go down
to "Save" and give a right
command.
Figure 26. Programming Menus
 









