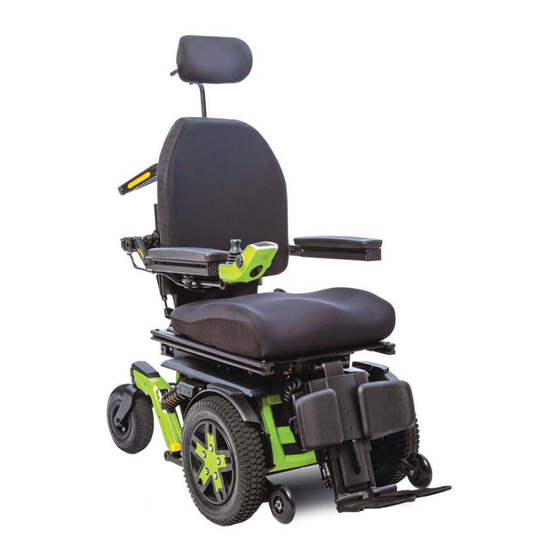

Quantum 4FRONT Illustrated Parts Breakdown

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Quantum 4FRONT

Summary of Contents for Quantum 4FRONT

  • Page 2 Introduction Your new Pride Illustrated Parts Breakdown (IPB) Manual has been compiled from the latest product information available at the time of publication. Pride ® Mobility Products Corporation reserves the right to make changes and updates to this manual and to the product(s) it represents. Any changes, updates, or improvements to the product(s) may result in slight differences between this manual and the product you purchased.

  • Page 3: Table Of Contents

    Table Of Contents SECTION I. Main Frame Assembly..............................4 SECTION II. Anti-tip Assembly ................................5 SECTION III. Suspension Assemblies ..............................6 SECTION IV. Rear Caster Arm Assembly............................8 SECTION V. Drive Motor Assembly and Motor Mount Assembly ....................... 10 SECTION VI. Q-Logic 3 Joystick Assembly ............................

  • Page 4: Main Frame Assembly

    I. Main Frame Assembly Only items or assemblies with callouts are available for replacement. Complete Main Frame Assy Includes the Main Frame, Side Shroud Assy’s and Mounting Hardware. Battery Strap REF # PART # DESCRIPTION MEC1700180 MAIN FRAME ASSEMBLY DGN1611521 SIDE SHROUD ASSEM, WITH REFLECTOR, RIGHT DGN1611522 SIDE SHROUD ASSEM, WITH REFLECTOR, LEFT...

  • Page 5: Anti-Tip Assembly

    II. Anti-tip Assembly Mounting Hardware per side Left Anti-tip Assy Anti-tip Wheel Right Anti-tip Assy REF # PART # DESCRIPTION MEC1705020 ANTI-TIP MOUNT ASSEMBLY, RIGHT MEC1705019 ANTI-TIP MOUNT ASSEMBLY, LEFT WHLASMB1523 WHEEL,ASSY,ANTI-TIP,100MM OD X 23.76MM TH,W/BEARINGS & SPACER,C-1505-032 SCRASBH1241 SCREW,BHSCS,BLACK ZINC,M8-1.25 X 30MM,GRADE 10.9 NUTNYLK1011 NUT, HEX, PVTP, M8X1.25, ISO 7040, CL 5, BZ Rev.A/100217...

  • Page 6: Suspension Assemblies

    III. Suspension Assemblies Individual components are not available separately. The complete assembly or the front/rear assembly must be selected. Complete Suspension Assy’s Front Suspension Assy’s Rear Suspension Assy Contains the left and right side Contains the front spring Contains the rear spring front and rear springs and the mounting hardware.
  • Page 7 III. Suspension Assemblies REF # PART # DESCRIPTION MEC1701457 SUSPENSION,ASSY,QUANTUM 4FRONT,STANDARD MEC1707412 SUSPENSION,ASSY,QUANTUM 4FRONT,LIFT MEC1708255 SUSPENSION,ASSY,QUANTUM 4FRONT,FRONT STANDARD PACKAGE MEC1708256 SUSPENSION,ASSY,QUANTUM 4FRONT,FRONT LIFT PACKAGE MEC1708257 SUSPENSION,ASSY,QUANTUM 4FRONT,REAR Rev.A/100217...

  • Page 8: Rear Caster Arm Assembly

    IV. Rear Caster Arm Assembly The Complete Caster Arm Assy includes the Arm, Fork, Wheel Assy, and Mounting Hardware. Caster They DO NOT contain the Caster Top Cover, Arm Bumper Shrouds, Axle Brace, or Caster Sensor. Complete Caster Arm Assy Right Left Caster...
  • Page 9 IV. Rear Caster Arm Assembly REF # PART # DESCRIPTION MEC1700200-A CASTER ARM ASSEMBLY, RIGHT: BLACK RIM, BLACK TIRE MEC1700199-A CASTER ARM ASSEMBLY, LEFT: BLACK RIM, BLACK TIRE WHL1703592 WHEEL,ASSY,FLAT FREE,9" CASTER,BLACK RIM/BLACK TIRE,D- 1202-030 DGN168155 FWD CASTER BUMPER HDW1703195 SCREW, HEX HEAD, M8X1.25 X 110, ISO 4014, CL 12.9, BZ HDW138262 WASHER,FLAT,8.4 ID X 16 OD X 1.6 THK,BZ...

  • Page 10: Drive Motor Assembly And Motor Mount Assembly

    V. Drive Motor Assembly and Motor Mount Assembly Right Drive Motor Assy w/5 Spoke Hub Left Right Left Drive Motor Assy w/o Hub for use on Units with 4 Spoke, Knobby Tires Motor Mount Assy (Does Not include motor) Right Left Hub Assy Freewheel Handle Assy...
  • Page 11 V. Drive Motor Assembly and Motor Mount Assembly REF # PART # DESCRIPTION MOT1703685-01 FWD RIGHT MTR HUB ASMB, CURTIS, 700MM LEADS MOT1703686-01 FWD LEFT MTR HUB ASMB, CURTIS, 700MM LEADS MEC160250 MOTOR MOUNT ASSEMBLY, RIGHT MEC160251 MOTOR MOUNT ASSEMBLY, LEFT FRMASMB8691 FREEWHEEL,ASSY,RELEASE HANDLE GRIP,YELLOW,B-1160-051 MEC145417...

  • Page 12: Q-Logic 3 Joystick Assembly

    VI. Q-Logic 3 Joystick Assembly Speed Knob Q-Logic 3 Joystick Standard Joystick Knob Lighting Joystick Mounting Bracket Assy Complete Lower Housing with Bus Cable Standard Gray Street Lower Shrouds Pretty in Pink Silver Bullet Orange Crush White Satin Lime Light Yellow Blaze Military Green Red Corvette...
  • Page 13 VI. Q-Logic 3 Joystick Assembly REF # PART # DESCRIPTION CTL143976 EXPANDABLE CONTROLLER W/ JOYSTICK AND LCD COLOR DISPLAY, Q-LOGIC 3, 4-KEY, (CURTIS: 17949700-02-0009) CTL143977 EXPANDABLE CONTROLLER W/ JOYSTICK AND LCD COLOR DISPLAY AND LIGHTS, Q-LOGIC 3, 4-KEY, (CURTIS: 17949700-02- 0109) FRMASMB10617 JOYSTICK MOUNTING BRACKET,ASSY,CURTIS...

  • Page 14: Q-Logic 3 Stand Alone Joystick Assembly

    VII. Q-Logic 3 Stand Alone Joystick Assembly Joystick Knob TB3 Side Rail Mounting Side Rail Midline Mount Assy REF # PART # DESCRIPTION CTL143980 STANDALONE JOYSTICK, Q-LOGIC 3, (CURTIS: 17953700-1109) HAR144001 HARNESS, CHARGER/PROGRAMMER, Q-LOGIC 3, 0.9 METER, (CURTIS: 17880701) HAR144003 HARNESS, SEAT MULTIPLIER Q-LOGIC 3, (CURTIS: 17881360-02-01) FRMASMB11156 MOUNTING BRACKET,ASSY,STAND ALONE JOYSTICK,SIDE RAIL...

  • Page 15: Q-Logic 3 Electronics Complete Assemblies Matrix

    (Base Mounted Lights) Single Power (Base Mounted Lights) Multiple Power (Base Mounted Lights) REF # PART # DESCRIPTION ELE1700136 ELECTRONIC,ASSY,Q-LOGIC 3,6 MPH MOTORS,QUANTUM 4FRONT,STATIC SEATING,W/PTO ELE1703244 ELECTRONIC,ASSY,Q-LOGIC 3,6 MPH MOTORS,QUANTUM 4FRONT,STATIC SEATING,W/POWER,W/PTO ELE1704206 ELECTRONIC,ASSY,Q-LOGIC 3,6 MPH MOTORS,QUANTUM 4FRONT,TILT THRU TOGGLE,W/PTO ELE1704197...

  • Page 16: Q-Logic 3 Modules, Harnessing, And Mounting Hardware

    IX. Electronics Assembly — Q-Logic 3 Modules, Harnessing, and Mounting Hardware Right Motor D1 - Battery Interface Harness Run Plug Left Motor P1 - PTO/Lights Harness Q1 - Run Plug O1 - Multiplier Rev.A/100217...
  • Page 17 IX. Electronics Assembly — Q-Logic 3 Modules, Harnessing, and Mounting Hardware REF # PART # DESCRIPTION CTL143978 POWER MODULE, Q-LOGIC 3,120 AMP, (CURTIS: 17930700-3509) SCRPPH1382 SCREW,PPH,BLACK ZINC,M5-.8 X 25MM ELE1611761 HARNESS, BATTERY, FWD ELE1611815 HARNESS, BATTERY INTERFACE, FWD, Q-LOGIC SCRSHCS1092 SCREW,SHCS,BLACK ZINC,M4-.7 X 12MM ELE1611675 CASTER SENSOR HARNESS ASSEMBLY, RIGHT...

  • Page 18: Base Mounted Light Assemblies

    X. Base Mounted Light Assemblies Rear Shroud Insert w/Lights Bus Cable Q-Logic 3 Lighting Module Complete Right Light Assy Complete Left Light Assy To Lighting Module Rev.A/100217...
  • Page 19 X. Base Mounted Light Assemblies REF # PART # DESCRIPTION ELE1701559 FWD E-MARK LIGHT ASSEMBLY, FRONT RIGHT ELE1701560 FWD E-MARK LIGHT ASSEMBLY, FRONT LEFT ELE1611828 HARNESS, LIGHTING, BASE MOUNTED, FWD, Q-LOGIC 3 HAR144005 HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.410 METER, MALE/FEMALE, (CURTIS: 17881362-01-01) DGN1611520 FWD,REAR DOOR, ASSEMBLY, WITH LIGHTS...

  • Page 20: Front Door Shroud Assembly And Battery Access Bracket Assembly

    XI. Front Door Shroud Assembly and Battery Access Bracket Assembly Complete Front Door Shroud Assy (Includes the Painted Shroud, Black Insert, the Q Logo, and 4 Mounting Screws. It DOES NOT include the release assy’s.) Red Corvette Midnight Blue Pretty In Pink Deep Purple Orange Crush Back In Black...
  • Page 21 XI. Front Door Shroud Assembly and Battery Access Bracket Assembly REF # PART # DESCRIPTION DGN1704330-PRD1 FWD FRONT SHROUD PAINTED W/HARDWARE,PPW-RED-01,RED CORVETTE DGN1704330-PPK3 FWD FRONT SHROUD PAINTED W/HARDWARE,PPW-PNK- 03,PRETTY IN PINK DGN1704330-POR6 FWD FRONT SHROUD PAINTED W/HARDWARE,PPW-ORN- 06,ORANGE CRUSH DGN1704330-PYL3 FWD FRONT SHROUD PAINTED W/HARDWARE,PPW-YEL- 03,YELLOW BLAZE DGN1704330-PGN7...

  • Page 22: Rear Door Shroud Assembly With And Without Lighting

    XII. Rear Door Shroud Assembly with and without Lighting Rear Shroud Inserts w/Reflectors w/Lights Screws to mount colored shroud to insert Rear Door Shroud Assy (Includes the Painted Shroud and the Black Insert. It does not contain the reflectors or the light assemblies.) Red Corvette Midnight Blue Pretty In Pink...
  • Page 23 XII. Rear Door Shroud Assembly with and without Lighting REF # PART # DESCRIPTION DGN1704331-PRD1 FWD REAR SHROUD PAINTED W/HARDWARE,PPW-RED-01,RED CORVETTE DGN1704331-PPK3 FWD REAR SHROUD PAINTED W/HARDWARE,PPW-PNK-03,PRETTY IN PINK DGN1704331-POR6 FWD REAR SHROUD PAINTED W/HARDWARE,PPW-ORN- 06,ORANGE CRUSH DGN1704331-PYL3 FWD REAR SHROUD PAINTED W/HARDWARE,PPW-YEL-03,YELLOW BLAZE DGN1704331-PGN7 FWD REAR SHROUD PAINTED W/HARDWARE,PPW-GRN-07,LIME...

  • Page 24: Shroud Assembly Caster Arm Covers

    XIII. Shroud Assembly — Caster Arm Covers Caster Arm Side Cover Assembly (Includes 1 pair of inner & outer covers and the mounting hardware.) Red Corvette Military Green Grey Street Pretty In Pink Electric Blue Silver Bullet Orange Crush Midnight Blue White Satin Yellow Blaze Deep Purple...
  • Page 25 XIII. Shroud Assembly — Caster Arm Covers REF # PART # DESCRIPTION DGN1704329-PRD1 FWD CASTER ARM COVER W/HARDWARE,PPW-RED-01,RED CORVETTE DGN1704329-PPK3 FWD CASTER ARM COVER W/HARDWARE,PPW-PNK-03,PRETTY IN PINK DGN1704329-POR6 FWD CASTER ARM COVER W/HARDWARE,PPW-ORN-06, ORANGE CRUSH DGN1704329-PYL3 FWD CASTER ARM COVER W/HARDWARE,PPW-YEL-03, YELLOW BLAZE DGN1704329-PGN7 FWD CASTER ARM COVER W/HARDWARE,PPW-GRN-07,LIME LIGHT...

  • Page 26: Top Cover Shroud

    XIII. Shroud Assembly — Top Cover Shroud Top Shroud (Does not include Hardware) REF # PART # DESCRIPTION DGN169848 TOP SHROUD, WITH INSERTS, FWD SCRPPH1036 SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ Rev.A/100217...

  • Page 27: Fender Assembly No Lights Or Base Mounted Lighting

    XIV. Fender Assembly — No Lights or Base Mounted Lighting The fenders do not include the mounting hardware. REF # PART # DESCRIPTION DGN169072 FENDER, RIGHT, FWD DGN169073 FENDER, LEFT, FWD SCRPPH1036 SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,FT,ISO 7045,CL 4.8,BZ Rev.A/100217...

  • Page 28: With Lights

    Assy Harness REF # PART # DESCRIPTION A1 - A7 DGN1700033 SHROUD,ASSY,FENDERS,W/LIGHT MODULE,SWITCH OPERATED,BASE MOUNTED,QUANTUM 4FRONT SERIES DGN1700204 FENDER LIGHT ASSEMBLY, FWD, RIGHT DGN1700203 FENDER LIGHT ASSEMBLY, FWD, LEFT MEC1700547 FLM BRACKET ASSEMBLY SCRPPH1036 SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,4.8,BZ...

  • Page 29: Seat Mount Assembly

    Bar Assy Rear Trapeze Bar Assy Seat Interface Assy REF # PART # DESCRIPTION TWRASMB7120002 SEAT TOWER,ASSY,14.00" CENTERS,TRAPEZE BAR,METRIC TWRASMB7120003 SEAT TOWER,ASSY,14.00" CENTERS,REAR TRAPEZE BAR,METRIC MEC1700465 FRAME,ASSY,SEAT INTERFACE,TB3,QUANTUM 4FRONT,W/MOUNTING HARDWARE MEC1705557 TRAPEZE BAR INTERFACE HDW120048 SCREW,HHCS,BLACK ZINC,M10-1.5 X 20MM,GR 10.9,W/PATCH Rev.A/100217...

  • Page 30: Pneumatic, 5 Spoke Black Rim/Black Tire And Painted Inserts

    XVI. Drive Wheel Assembly — Pneumatic, 5 Spoke Black Rim/Black Tire and Painted Inserts Complete Tire/Rim Assy Pneumatic Tire Pneumatic Tube Rim Assy ***The spacer is required to Painted Rim Inserts Hub, Spacer, and Lug Nuts mount the Wheel Assy.*** Red Corvette Midnight Blue Pretty In Pink...
  • Page 31 XVI. Drive Wheel Assembly — Pneumatic, 5 Spoke Black Rim/Black Tire and Painted Inserts REF # PART # DESCRIPTION WHL1704507 WHEEL,ASSY,PNEUMATIC,14" X 3" DRIVE,BLACK RIM/BLACK TIRE, E-1203-051 TIR8110026 TIRE,PNEUMATIC,BLACK,14" OD,3" W,C-248-5 TREAD TUBSTND1002 TUBE,300-8,ANGLED VALVE W/CAP WHL1703586 WHEEL,ASSY,RIM,BLACK,ALUMINUM,8",5 SPOKE,D-1203-071 MEC145417 HUB ASSEMBLY DGN164245-PRD1 DRIVE WHEEL INSERT,W/ADHESIVE TAPE,PPW-RED-01,RED...

  • Page 32: Flat-Free, 5 Spoke Black Rim/Black Tire And Painted Inserts

    XVI. Drive Wheel Assembly — Flat-free, 5 Spoke Black Rim/Black Tire and Painted Inserts Complete Tire/Rim Assy Flat-free Tire Rim Assy Painted Rim Inserts Hub and Lug Nuts Red Corvette Midnight Blue Pretty In Pink Deep Purple Orange Crush Back In Black Yellow Blaze Grey Street Lime Light...
  • Page 33 XVI. Drive Wheel Assembly — Flat-free, 5 Spoke Black Rim/Black Tire and Painted Inserts REF # PART # DESCRIPTION WHL1703588 WHEEL,ASSY,FLAT FREE,14" X 3" DRIVE,BLACK RIM/BLACK TIRE,E- 1203-043 TIR8110024 TIRE,FLAT FREE,BLACK,14" OD,3" W,C-248 POWERTRAX TREAD,(GALLOP: 5508018 YT57) WHL1703586 WHEEL,ASSY,RIM,BLACK,ALUMINUM,8",5 SPOKE,D-1203-071 MEC145417 HUB ASSEMBLY DWR1005B049...

  • Page 34: Drive Wheel Assembly

    XVI. Drive Wheel Assembly — Pneumatic, 4 Spoke Black Rim/Black Tire (Knobby) Please note: Rims and hardware are included in the top-level assemblies and are not available individually. Complete Tire/Rim Assembly Pneumatic Tire Pneumatic Tube Lug Nuts REF # PART # DESCRIPTION WHL147599 WHEEL,ASSY,PNEUMATIC,14"...

  • Page 35: Flat-Free, 4 Spoke Black Rim/Black Tire (Knobby)

    XVI. Drive Wheel Assembly — Flat-free, 4 Spoke Black Rim/Black Tire (Knobby) Please note: Rims and hardware are included in the top-level assemblies and are not available individually. Complete Tire/Rim Assembly Flat-free Tire Lug Nuts REF # PART # DESCRIPTION WHL147601 WHEEL,ASSY,FLAT FREE,14"...

  • Page 36: Owner's And Decal Packages

    DWR1235L521 DECAL,WARNING,CONTROLLER CORD PLACEMENT,L-1235-521 *N/A DEC8120018 DECAL,NOT RATED FOR OCCUPIED TRANSPORT,POWER CHAIR *N/A LAB1703680 DECAL,4FRONT AESTHETIC *N/A LAB1703664 DECAL,4FRONT BATTERY WIRING DIAGRAM *N/A DECINDV1314 DECAL,THERMAL TRANSFER POLYESTER,1" X 3",3M 7871 *N/A DWR1235L116 DECAL,ICON,TIE DOWN HOOK,L-1235-116 *N/A DWR1234L957 DECAL,WARNING,DEFLATE TIRE COMPLETELY,L-1234-957...
  • Page 37 Notes Rev.A/100217...
