Quantum Q-Logic 3 Basic Operation Instructions

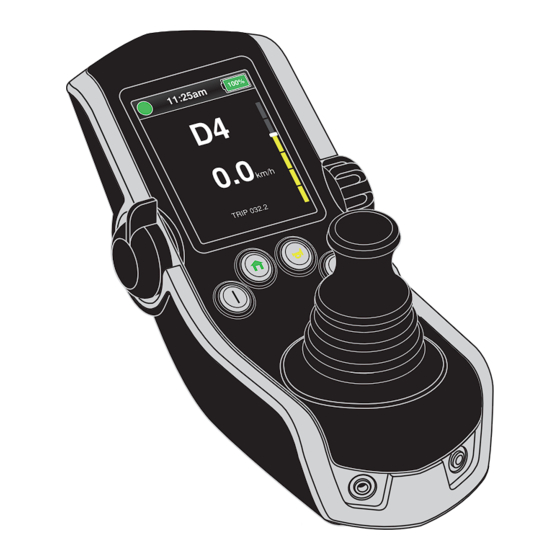

Fully programmable, modular electronic controller system that allows you to operate your power chair
Hide thumbs Also See for Q-Logic 3:
Table of Contents

Advertisement

Quick Links

Basic Operation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-Logic 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum Q-Logic 3

Summary of Contents for Quantum Q-Logic 3

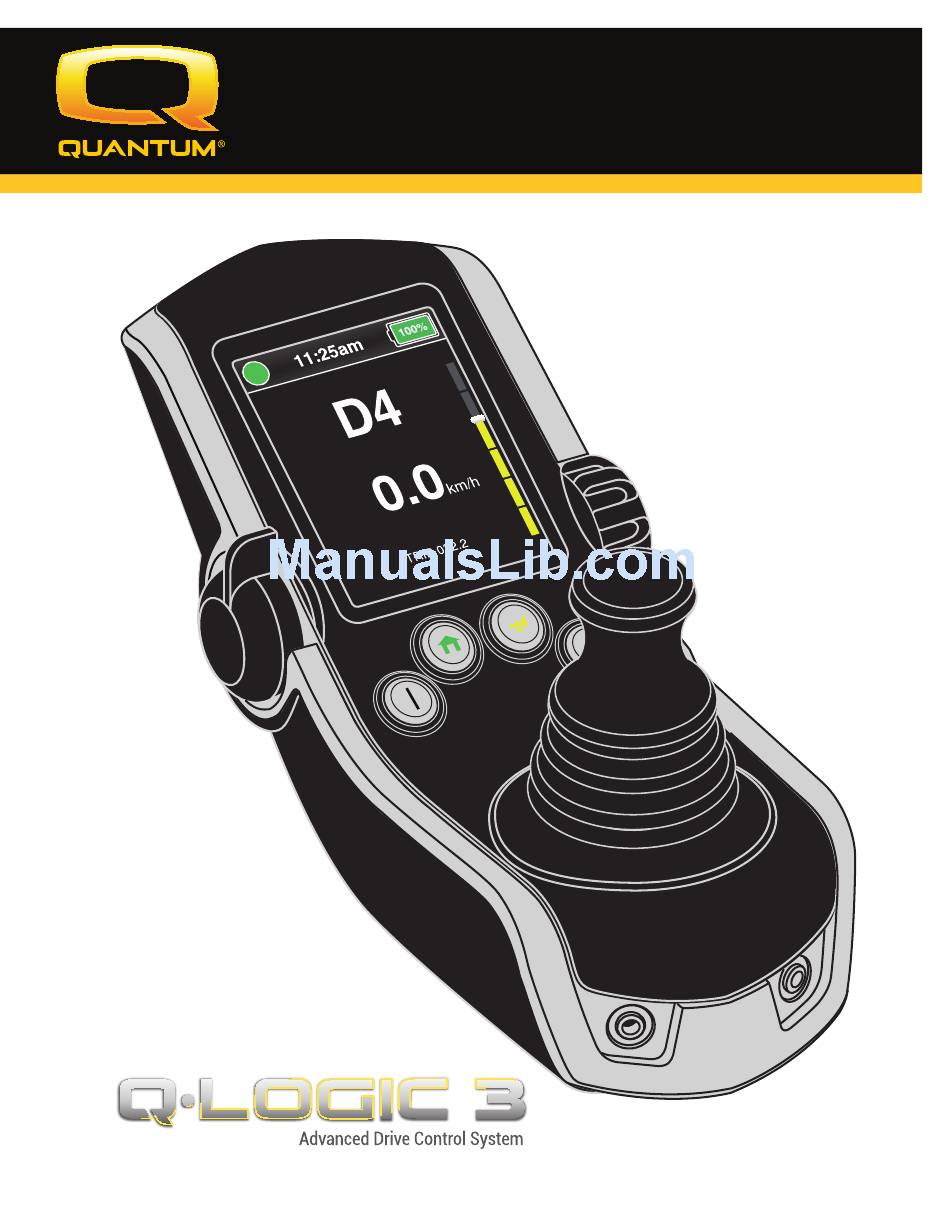

  • Page 1 Basic Operation Instructions...
  • Page 2 Identification Key Controller LCD Screen Drive/Function Inhibit On/Off Mode Select Lever Joystick On/Off and Mode Jacks Key 1 Select Button Home Button *Horn Button Key 2 Select Button Speed Adjustment Charger Port *Light Button *Left Turn Indicator Button *Right Turn Indicator Battery Condition Meter Button *Optional components available on some models...
  • Page 3 Identification Key  Attendant Control Mode Button Mode LED Actuator Indicators Battery Condition Meter On/Off Button Joystick On/Off and Mode Jacks Enhanced Display On/Off Button 4-Direction Navigation Key Mode Button LCD Screen Battery Condition Meter Charger/Programmer Port 9-pin D-sub Connector On/Off and Mode Jacks...
  • Page 4 NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements. NOTE: This product meets IPX4 classification (IEC 60529). NOTE: The Q-Logic 3 Controller and its components are not made with natural rubber latex. Consult with the manufacturer regarding any after-market accessories.

  • Page 5: Table Of Contents

     Label Information ..........................6 The Q-Logic 3 Controller ........................7 Precautionary Guidelines ........................7 Operating the Q-Logic 3 Controller ....................7 On/Off and Mode Select Lever ......................7 Joystick ..............................7 Lock/Unlock Procedure ......................... 8 Speed Adjustment Knob ........................8 Keypad ..............................

  • Page 6: Label Information

    EMI/RFI—This product has been tested and passed at an immunity level of 20 V/m. Disposal and recycling – Contact your Quantum Rehab Provider for information on proper disposal and recycling of your Quantum product and its packaging.

  • Page 7: The Q-Logic 3 Controller

    Consumer Safety Guide. Operating the Q-Logic 3 Controller The Q-Logic 3 hand control is used to operate your power chair and all of its components. On/Off and Mode Select Lever The On/Off and Mode Select lever turns the system on and off, is used to recycle the power, and is also used to select drive profiles, seating and auxiliary menus.

  • Page 8: Lock/Unlock Procedure

    To access the Home Screen if your chair is equipped with a light joystick: 1. Push both the Left/Right Indicators for several seconds. NOTE: The timing is a programmable parameter that can be reset by your Quantum Rehab Provider.

  • Page 9: Key 1 And Key 2 Button

    Provider for more information. See Identification Key on page 4 for reference. NOTE: If your Q-Logic 3 Controller is equipped with a lighting system, the Home button and key 1/key 2 select buttons will be replaced with a light button and left/right turn indicator buttons.

  • Page 10: Drive Screen

     Drive Screen The LCD provides the current time in either 12- or 24-hour clock format, the current profile, drive operation, the speed adjustment setting, and the trip odometer, or the overall odometer reading. Drive/Function Inhibit status is depicted as a green light at the top left of the screen. Actuator adjustment will affect the inhibit status.

  • Page 11: Drive Profile Selection

     Drive Profile Selection Your Q-Logic 3 Controller may be programmed for up to four drive profiles that allow the system to be custom-tailored to your environment. The drive profile may be changed two different ways. Profiles 1 – 4 may be selected by pressing the On/Off and Mode Select Lever in the forward direction.
  • Page 12  Identification Key 1. Tilt Mode 4. Recline & ELR/ALR Mode (both) 7. ALR/ELR Mode (right) 2. Recline Mode 5. Articulating Foot Platform 8. ALR/ELR Mode (left) 6. ALR/ELR Mode (both) 3. Elevating Seat Mode      ...

  • Page 13: Ilevel® Feature (Optional)

    3. Push the joystick to the left or right to cycle through to the elevating seat mode, this is illuminated on the actuator indicator. See figure 1. NOTE: If your Q-logic 3 settings are different than those described, contact your Quantum Rehab Provider. Your Quantum Rehab Provider may have changed the programming of your Q-Logic 3 Controller.
  • Page 14 Always check to be sure this system is operating properly before using your power chair. NOTE: If a warning appears on the Q-Logic 3 controller LCD stating "iLevel® is not engaged," the power chair's speed will be reduced to 25% when elevated. If this warning appears while on level ground, please discontinue use of iLevel®...

  • Page 15: Settings Screen

     Settings Screens The following pages explain the various screens you will use with the Q-Logic 3 Controller. Contact your Quantum Rehab Provider with any questions you may have. NOTE: Some screens in this Basic Operating Instructions may differ from your system depending on configuration and options selected.
  • Page 16  To change the Display settings:     1. Push the Home Screen button.  2. Push the joystick left to enter settings screen.  3. Push the joystick up or down through the  available setting subjects. ...
  • Page 17  To enable/disable and Environmental Function:     1. Push the Home Screen button.  2. Push the joystick left to enter settings screen.  3. Push the joystick up or down through the  available setting subjects. ...
  • Page 18  To change the Clock settings:     1. Push the Home Screen button.  2. Push the joystick left to enter settings screen  3. Push the joystick up or down through the  available settings subjects. ...
  • Page 19 “Brightness Day” sets the brightness of the screen for daytime viewing (bright light). When using the Q-Logic 3 in bright light, use the “Brightness Day” setting to adjust the illumination of the screen. “Brightness Night” sets the screen brightness for nighttime viewing (low light). Use the “Brightness Night”...

  • Page 20: Bluetooth Functions

    To activate the Bluetooth function:      The Q-Logic 3 hand control is equipped with  built-in Bluetooth that allows you to connect to  a computer, smartphone or tablet. Push the On/Off and Mode Select Lever up once to power on the chair and controller.
  • Page 21 NOTE: Program access may either be in the Settings screen or the Aux screen depending upon configuration. NOTE: When pairing the Q-Logic 3 system to your device, the Q-Logic 3 Bluetooth ID# is at the top of the screen for easy pairing. Please refer to your device for pairing instructions.
  • Page 22    NOTE: Gray icons indicate unpaired Q-Logic 3, blue icons indicate paired Q-Logic 3.   NOTE: To leave the mouse screen, press the on/off lever up, key 1, home key, or key 2. ...
  • Page 23 NOTE: At any time a left command will return to the previous menu. After Assistive Switch Control Connections is     highlighted, a right command will show.    NOTE: Gray icons indicate unpaired Q-Logic  3; blue icons indicate paired Q-Logic 3. ...
  • Page 24  NOTE: This product has been tested for Electromagnetic and Radio Frequency Interference (EMI/RFI) and has met standard requirements. Please refer to the Consumer Safety Guide for more information regarding EMI/RFI. Although we do not recommend using a cell phone while operating a power chair, the system is capable of receiving and/or making calls through a cell phone device, accessing music files or contact lists, and navigating a device menu.

  • Page 25: Standby Select Menu

    Contact your Quantum Rehab Provider for more information. Attendant Control and Standalone Joystick For more information on these applications, contact your Quantum Rehab Provider. The Attendant Control and the Stand-alone Joystick are similarly laid out: „ On/Off Button Enables/disables power „...

  • Page 26: Enhanced Display

    Stand-alone Joystick. When used with the hand control, it provides a larger display than the hand control's LCD. The Enhanced Display is mainly used in more advanced applications. Contact your Quantum Rehab Provider for more information. The Enhanced Display has the following controls: „...

  • Page 27: Sleep Mode

     Sleep Mode The Q-Logic 3 Controller offers a sleep mode feature that will shut off the main power if the joystick remains stationary for a programmed period of time from 0 to 240 minutes. To restore power and resume operation of the chair, push the On/Off and Mode Select Lever up once. A set time of 0 minutes disables the sleep mode feature.
  • Page 28  Error Popup Description Help text Code Text (programming device) (programming device) Motor 1 not Error: Motor 1 not connected Motor 1 error detected connected 1. Turn power off 2. Inspect motor connections 3. Turn power on Motor 2 not Defect: Motor 2 not connected Motor 2 error detected connected...

  • Page 29: Care And Maintenance

     Error Popup Description Help text Code Text (programming device) (programming device) Bluetooth not working Defect: Bluetooth not working Bluetooth error detected. Please reboot system. 1. Turn power off. 2. Wait 5 seconds 3. Turn power on Suspension lock not Defect: Suspension lock...
  • Page 30 ...
  • Page 32 401 York Avenue Duryea, PA 18642 Canada 5096 South Service Road Beamsville, Ontario L0R 1B3 32 Wedgwood Road Bicester, Oxfordshire OX26 4UL www.quantumrehab.co.uk Australia 20-24 Apollo Drive Hallam, Victoria 3803 www.quantumrehab.com.au New Zealand 38 Lansford Crescent Avondale Auckland, New Zealand 1007 www.pridemobility.co.nz Italy Via del Progresso, ang.
