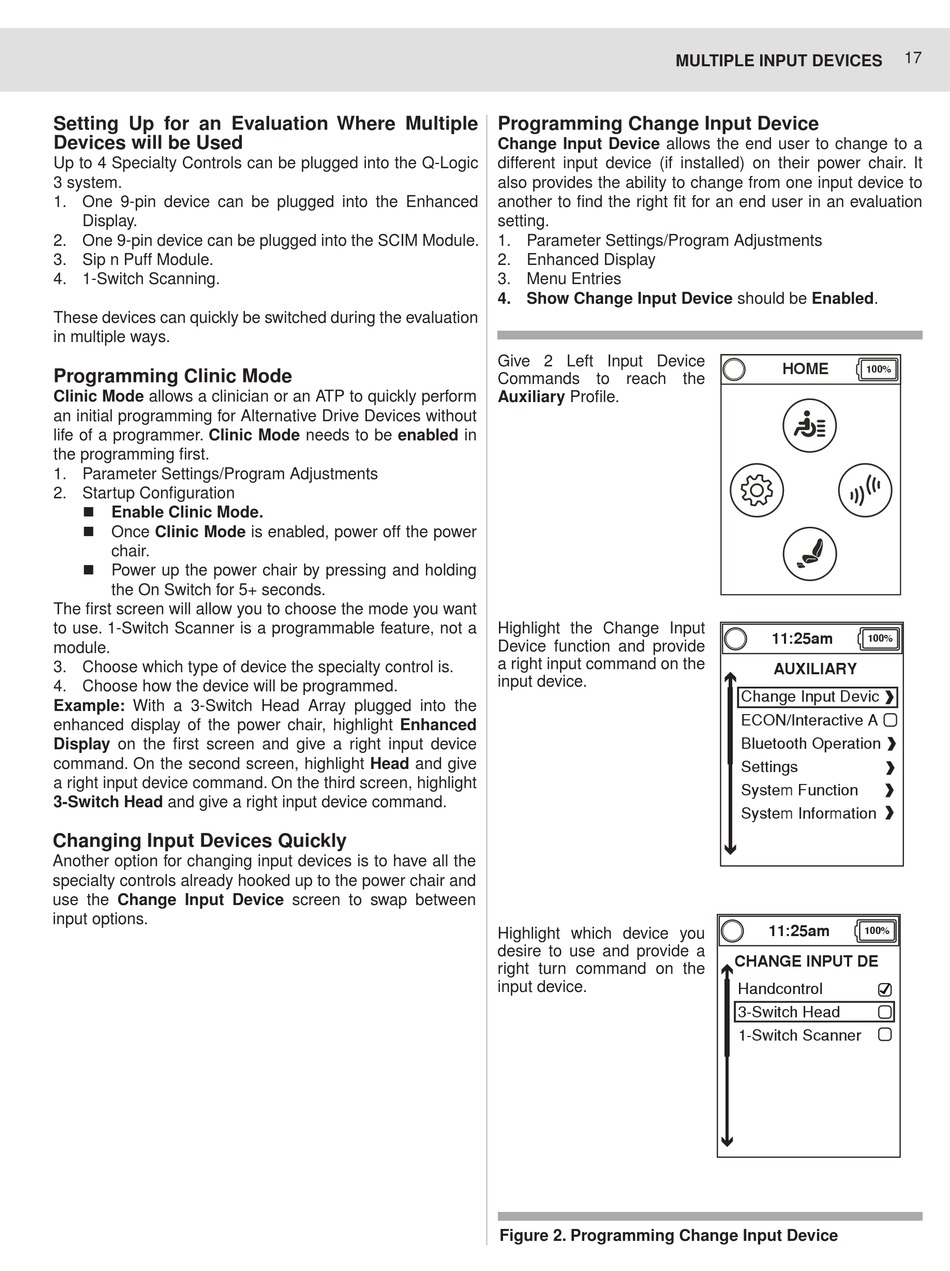

Setting Up for an Evaluation Where Multiple
Devices will be Used
Up to 4 Specialty Controls can be plugged into the Q-Logic
3 system.
1. One 9-pin device can be plugged into the Enhanced
Display.
2. One 9-pin device can be plugged into the SCIM Module.
3. Sip n Puff Module.
4. 1-Switch Scanning.
These devices can quickly be switched during the evaluation
in multiple ways.
Programming Clinic Mode
Clinic Mode allows a clinician or an ATP to quickly perform
an initial programming for Alternative Drive Devices without
life of a programmer. Clinic Mode needs to be enabled in
the programming first.
1. Parameter Settings/Program Adjustments
2. Startup Configuration
„
Enable Clinic Mode.
„
Once Clinic Mode is enabled, power off the power
chair.
„
Power up the power chair by pressing and holding
the On Switch for 5+ seconds.
The first screen will allow you to choose the mode you want
to use. 1-Switch Scanner is a programmable feature, not a
module.
3. Choose which type of device the specialty control is.
4. Choose how the device will be programmed.
Example: With a 3-Switch Head Array plugged into the
enhanced display of the power chair, highlight Enhanced
Display on the first screen and give a right input device
command. On the second screen, highlight Head and give
a right input device command. On the third screen, highlight
3-Switch Head and give a right input device command.
Changing Input Devices Quickly
Another option for changing input devices is to have all the
specialty controls already hooked up to the power chair and
use the Change Input Device screen to swap between
input options.

MULTIPLE INPUT DEVICES

Programming Change Input Device
Change Input Device allows the end user to change to a
different input device (if installed) on their power chair. It
also provides the ability to change from one input device to
another to find the right fit for an end user in an evaluation
setting.
1. Parameter Settings/Program Adjustments
2. Enhanced Display
3. Menu Entries
4. Show Change Input Device should be Enabled.
Give 2 Left Input Device
Commands to reach the
Auxiliary Profile.
Highlight the Change Input
Device function and provide
a right input command on the
input device.
Highlight which device you
desire to use and provide a
right turn command on the
input device.
Figure 2. Programming Change Input Device
17

















