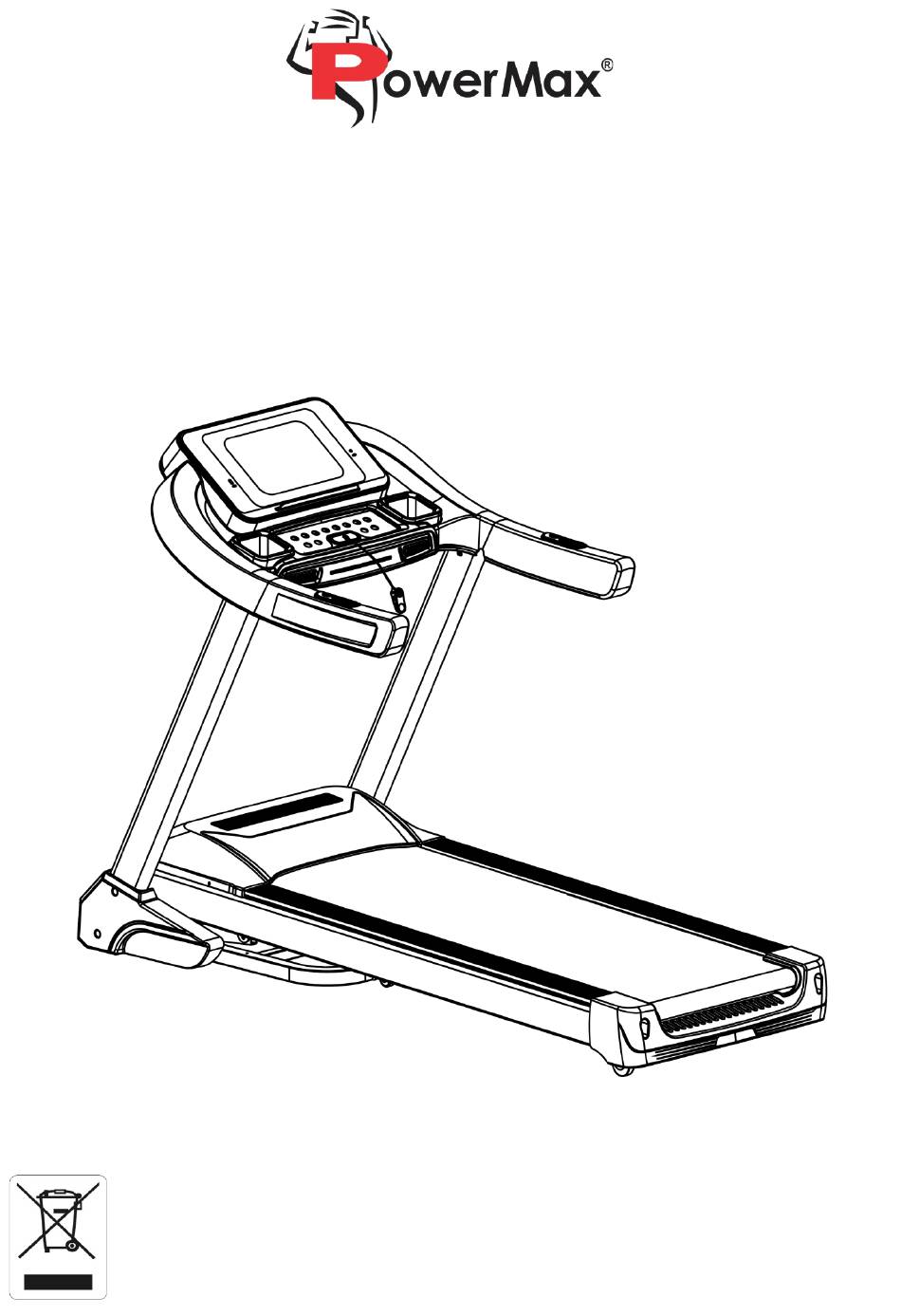

- Page 1 TAC-585 Semi-Commercial Treadmill User Manual OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.
-
Page 2: Table Of Contents
ROUTINE MAINTENANCE AND INSTRUCTIONS 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. -
Page 3: Product Brief
1. PRODUCT BRIEF Single function Motorized Treadmill Main Parameters and Parts List Main Technical Parameters Parameters Names Description Rated voltage 220-240V Rated frequency 50-60Hz Speed 1.0-20 km/h Running surface 1450 * 580mm Max user weight 150kg Expand dimensions 2040*930*1400mm www.powermaxfitness.net... - Page 4 Packing List Name Unit Complete machine Side Cover Protective cover Accessory bag Accessory Bag List Name Qty. Screw M10*50 Screw M8*25 Inner hexagon spanner 5mm Inner hexagon spanner 6mm Silicon oil User manual MP3 Cable Power line Safety key www.powermaxfitness.net...
-
Page 5: Security Precautions And Warning
2. SECURITY PRECAUTIONS AND WARNING Tips: Before folding the treadmill, make sure that the gradient is "zero". Note: Please read the instructions carefully before use. ♦ Indoor using and storing the treadmill, avoid dampness, and cannot be spilled by water. ♦... - Page 6 ♦ Don't use machine for more than 2 people at the same time, and don't get close to the machine when it is in use. ---- Or it may be an accident or injury due to falls. ♦ People who can’t express their consciousness or can’t operate the machine by themselves cannot use the treadmill.
-
Page 7: Installation Instructions
3. INSTALLATION INSTRUCTIONS When installing, simple fix all screws first, then tighten screws when the installation of frame is done. 1. Put the machine flat on the ground. Cut the nylon cable ties on the base. Then stand the columns and console with the direction shown in the picture below (The machine is heavy, please ensure there are two people to install it). - Page 8 M5*14 5. Silicon oil needs to be added before using the treadmill, method is as follow: A. Open the cover of the silicon oil tube B. Cut the upper part of the silicon oil on the front motor cover. bottle. C.
-
Page 9: Using Instructions
6. Plug the power line as showing 7. Put the safety key on the picture showing place and press the start button to start the treadmill. Safety key is in red color. Please find it in the accessory bag. NOTE: please confirm that all screws are locked uniformly according to the requirements after installation, and check no part is left out before plugging electricity. - Page 10 2. Please keep the safety key away from children when the treadmill is not in use. Please put the silicon oil bottle in places children cannot reach. If it is eaten or split into eyes by mistake, please use water to wash and consult doctor immediately. 3.
- Page 11 B. Heavy user (Use the machine more than 7 hours per week): Open the motor cover once in half month to check and make sure the oil in the oil tank is no less than 30ml. If it’s lower than 30ml, please add silicon oil.
- Page 12 5.4.6 Incline ± key When the treadmill is in running state, use these keys to adjust the incline of the treadmill. Press incline+ to increase the incline and press incline- to decrease the incline. 5.4.7 Incline quick keys When the treadmill is on running state, press these keys to change the incline directly to 3/6/9/12%. 5.4.8 Volume ±...
- Page 13 Automatic programs Time Set time / 10 = Running time of each period Program SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Meaning of Error Codes Fault code Failure Description Fault handling...
-
Page 14: Routine Maintenance And Instructions
Possible Cause: Check the motor cable to see whether it is connected well or not, if not, connect the motor wire again. Check the motor No signal from motor. cable to see whether it is damaged or has a burnt smell, if yes, replace the motor. - Page 15 performance of the electric treadmill, therefore regular applying of lubricant is needed. We advise you to check the board regularly. If the board’s surface is damaged, please contact our customer service centre. We advise using lubricant between running belt and running board with following schedule: Lightweight user (use less than 3 hours a week) once per month;...
- Page 16 A. The instantaneous step cannot stop the belt, the tightness is appropriate. B. If your instantaneous step stops the running belt, but the multi-wedge belt and former roller is still running, it indicates that the running belt is loose and appropriate adjustments must be made to facilitate the safe use C.
- Page 17 3. Manual Lubrication Method: If the machine is not in use for more than 3 months, the silicon oil will volatilize with the influence of whether or temperature. Users can add oil manually to let it lubricated quickly and the running belt will work more smoothly. Manual lubrication method is as below: 3.1: Machine with LCD Screen: Turn the machine on and let it run.
