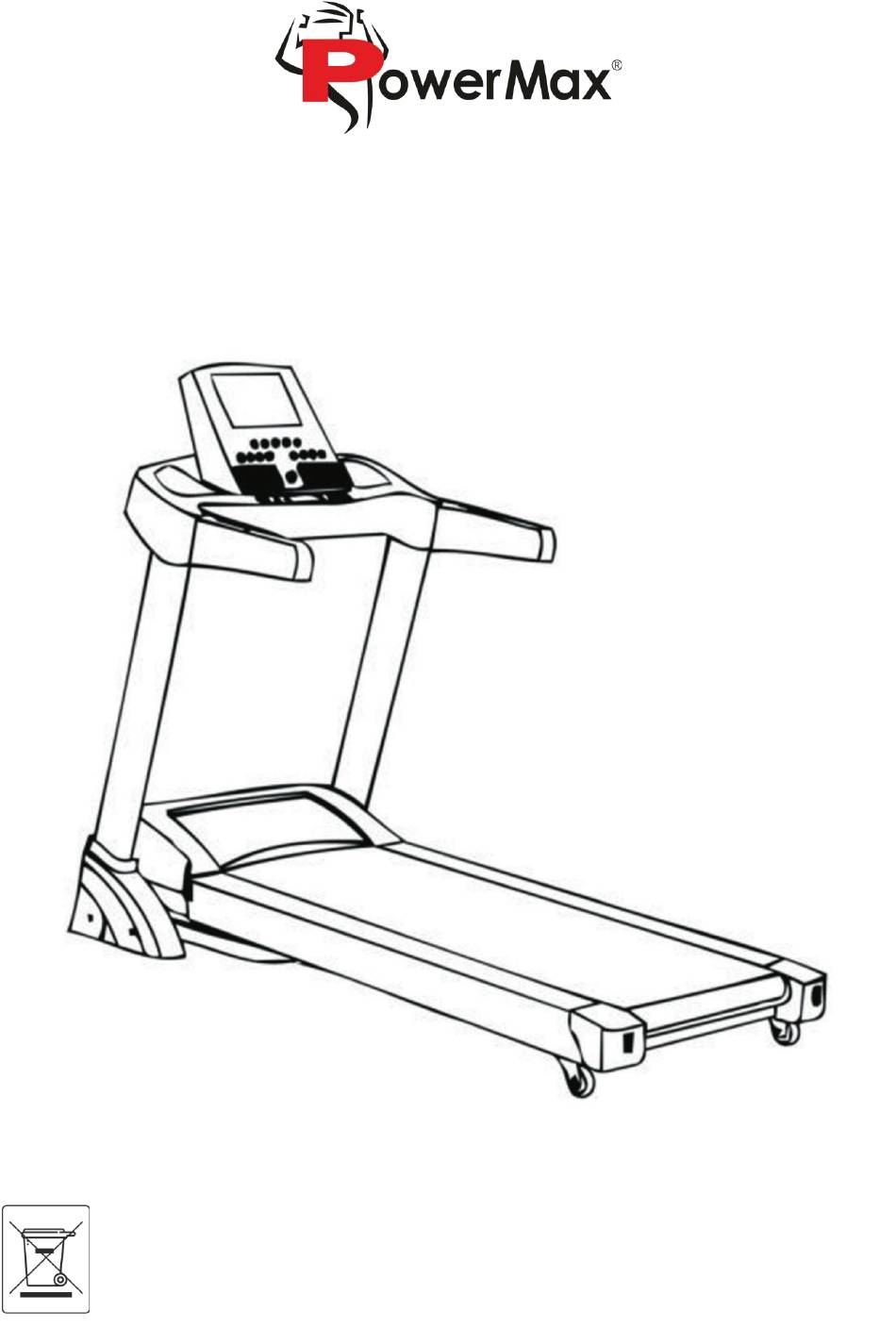

- Page 1 TAC-330 Semi-Commercial Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.
-
Page 2: Table Of Contents
TROUBLESHOOTING OF CIRCUIT FAULT 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. -
Page 3: Caution
Thank You for Purchasing the Product. You Will Be Healthier After Using. 1. CAUTION We considered a lot of security problems when we design the product, if you do not use the machine in the right way and get in trouble, we will not be responsible for it, so please use the product correctly according to the directions. - Page 4 Don't damage or bent by force or reverse the power cord. Don't place heavy objects on the machine, don't clamp the power line. ----Otherwise will cause fire or get an electric shock. Don't use the machine for more than 2 people at the same time, and don't be close to the machine when it is in use.
-
Page 5: Assembly Instruction
given supervision or instruction concerning use of the appliance by a person responsible for their safety. ASSEMBLY INSTRUCTION Please read the installation carefully before installing Remove all the items and put them on the ground Check the accessories according to the packing list When you are carrying something, please pay attention to the whole Install the product according to the instructions The product must be approved by the installation, if necessary, please professional to install... - Page 6 Packing List Simple Function Machine + Operation Panel 21. Safety Sky 25. Line for Mp3 Tool Bag 84. Oil 85. Manual 40 - 41 Left-Right Cover www.powermaxfitness.net...
-
Page 7: Exploded View
EXPLODED VIEW All the parts are showed in the following picture www.powermaxfitness.net... -
Page 8: Part List
SPARE PART LIST Pedestal Floor mat Upright post Wheel Control holder Rubber sleeve Incline holder Button Motor holder Round cushion Main frame Round cushion Stator Pipe stopper Pipe stopper Sponge sheath Running board Button of the power cord Running belt Pipe stopper of wheel The front roller Allen wrench 5mm L... -
Page 9: Installation Steps
Long line Inner hexagon screw M8*45 The power cord Self-tapping screw ST4.2*15 The power switch Self-Drilling Screw ST4.2*15 The fuse switch Self-Drilling Screw ST4.2*25 Over cover of control Self-tapping screw ST4.2*1 0 Back cover of control M8 gasket Electro broad M10 gasket Rear cover M8 spring cushion... - Page 10 Step 2: installation of upright post and left-right cover 1. Make the upright up with the screw68#, gasket81#, nut 81#„let it stand on the pedestal 2. Use screw79# to lock covers on the pedestal Step 4: installation of other parts 1.
- Page 11 PRODUCT DRAWING Single-Function Treadmill www.powermaxfitness.net...
-
Page 12: Instructions
INSTRUCTIONS The instructions of treadmill: For the consideration of your safety, a power socket with ground wire must be used when the treadmill is working. 1. Insert the plug into the socket and turn on the power switch (the light turns into red). Make sure a beep is heard and the window on the dashboard is showed. - Page 13 The instructions of moving the treadmill: Fold the treadmill. Keep your foot against the edge of pedestal and pull the armrest backward to incline the whole machine. Move the treadmill. Keep the machine out of the reach of children to prevent the accident. The instructions of folding: Fold the treadmill.
-
Page 14: Direction For Use
DIRECTION OF USE LCD DISPLAY WINDOW 1. Speed display window: Speed window display present speed on treadmill running, the scope of speed display: 0.8-15.0KM/H. The window displays a time countdown of 3, 2, 1 after pressing start button. Window displays P01-P02- P12-FAT after press program or setting key 2. - Page 15 3. DIS display window: DIS window shows running distance, displays 0.00 99.90 forwardly, recount time from zero when time pass; Distance countdown show the set to zero contrarily, the treadmill stops when countdown to zero and DIS window shows End, then machine will enter readiness modes in 5 minutes after dead stop. 4.
- Page 16 9. At standby status, press SPEED+ and SPEED- over 3 seconds, window will display distance, then press STOP key more than 3 seconds total distance will reset. III. QUICK CONTROL BUTTONS (MANUAL MODE) 1. Turn power switch, then pull magnetic safe key on the safe key one the safe key position of white circle below console.
- Page 17 VI. BUILT-IN GROGRAM There is 15 built-in program P01-P15 in the treadmill system. Press GROG button at standby status, SPEED window shows Pl-P15, TIME window twinkles after favourite program chosen and displays 15:00 (minutes) of pre-set time, then press any button of INCLINE+, INCLINE-, SPEED+, SPEED-and pre-set running time, finally press START button the machine will start built-in program.
-
Page 18: Troubleshooting Of Circuit Fault
VIII. PHYSICAL FITNESS TEST X. FUNCTION OF SAFETY LOCK Pull out safety lock in any case, the treadmill will make emergency stop, at the same time, SPEED window shows --- and buzzers make sounds, the machine cannot be made other operation except treadmill be shut down, put on safety lock again, treadmill will restore standby status. - Page 19 E. Electronic meter broken Change electronic meter Need repair, check back—lit F. Back—lit does not work line or change back-lit A. Driver IC of display cold Check welding spot and solder or weld welding again The display is incomplete and B.
- Page 20 protection or B. Driver IGBT broken Change driver driving motor C. Outside AC voltage too Pause, have electrician failure) eliminate trouble A. speed signal line missed, E03— No sensor Correct speed signal line or signal (With or driving sensor broken change speed sensor speed conduct B.
- Page 21 166VAC for (according 220V, lower than 70VAC for electrician solve the trouble customer 110V request) Powermax Fitness (I) Pvt. Ltd. Address: 808, 8th floor, Lotus Trade Centre, New Link Road, Andheri West, Mumbai – 400053 Tel: +91-8080-206-206 Email: customersupport@powermaxfitness.net www.powermaxfitness.net...
