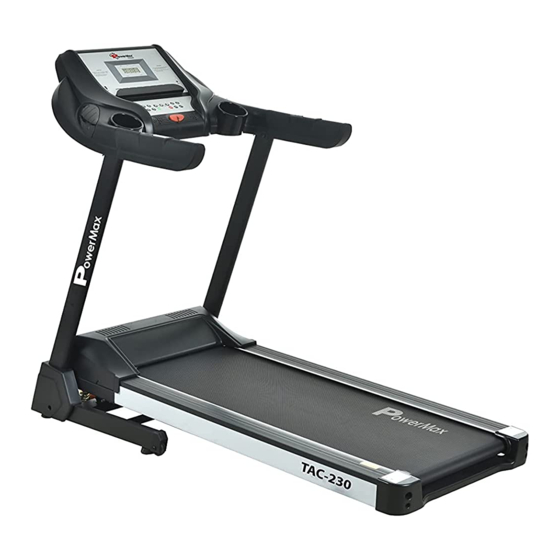

PowerMax TAC-230 User Manual
  1. Manuals
  2. Brands
  3. PowerMax Manuals
  4. Treadmill
  5. TAC-230
  6. User manual

PowerMax TAC-230 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

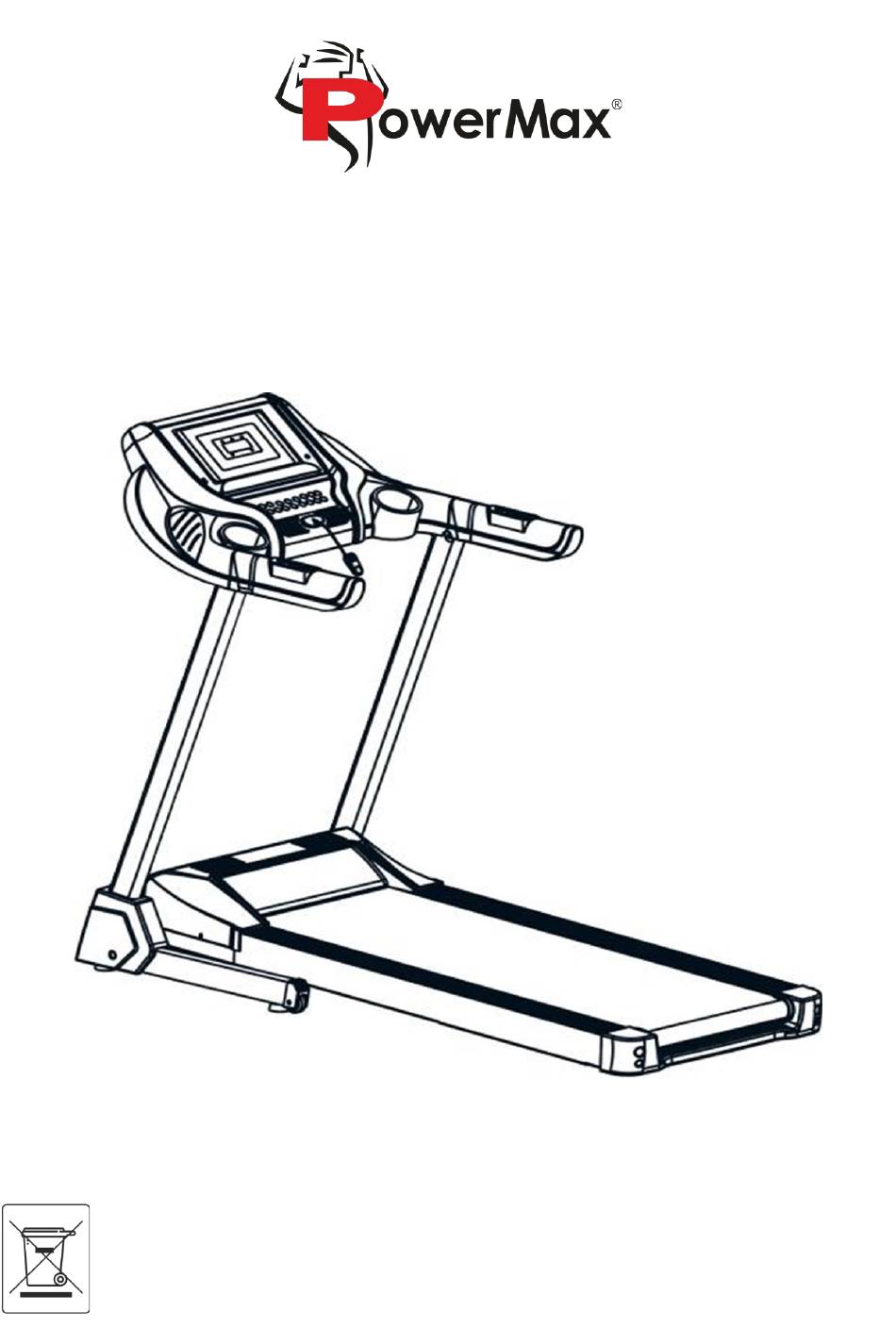

TAC-230
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAC-230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMax TAC-230

Summary of Contents for PowerMax TAC-230

  • Page 1 TAC-230 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.

  • Page 2: Table Of Contents

    ROUTINE MAINTENANCE 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Product Brief

    1. PRODUCT BRIEF Home Use Treadmill. Main Parameters and Parts List Main Technical Parameters Parameters Names Description Rated voltage 220-240V Rated frequency 50-60Hz Speed 0.8-14 km/h Running surface 1220*460 mm Net weight 55kg Expand dimensions 1635*735*1280 mm www.powermaxfitness.net...

  • Page 4: Security Precautions And Warnings

    Parts Number List Name unit Name unit Complete machine Accessory bag Protective cover Accessory Bag List Name Name Screw M8*22 Safety key Screw M8*42 Silicon oil Screw M8*25 User manual Inner hexagon spanner 5mm MP3 Cable Inner hexagon spanner 6mm Skid proof sticker Combination wrench 2.
  • Page 5 Silicone oil must be kept away from children after use. • If power cord is damaged, please contact our qualified maintenance personnel for service • rather than disassemble it at your own discretion. Forbidden Don't use the machine in the status of the shell break in or break off （the internal structure •...
  • Page 6 Don’t use when the power plug is on the needle, garbage, or water. • ----May cause electric shock, short circuit, or fire. Do not use with wet hands! when not in use, pull out the power plug from the socket. •...

  • Page 7: Installation Instructions

    3. INSTALLATION INSTRUCTIONS When installing, simple fix all screws first, then tighten screws when the installation of frame is done. 1. Put the machine flat on the ground. And stand the upright columns and console as bellow: 2. Use 5# inner hexagon wrench and M8*42 to lock washers and nuts through the column. Then fix the column on the base with screw M8*22.
  • Page 8 3. Hold left& right columns, use 6# inner hexagon wrench to lock the console frame on the columns with screw M8*25. Screw M8*25 4. Lock the protective covers on the base with screw M5*14 and tighten all screws in above steps. M5*14 5.

  • Page 9: Using Instructions

    Skid Proof Sticker Please find the skid proof stickers in the carton, and stick it on the middle part of side rail on both sides. Side rail Skid proof sticker 4. USING INSTRUCTIONS Using treadmill Insert the power plug properly and turn on the switch (in red colour) When the light is on, there will be a beep sound, and then the screen will be light up (Systems with TFT screen takes more time to enter the start interface).
  • Page 10 The treadmill can only start when the safety key is put on the yellow area of the console. Clip the safety key on clothes when using the treadmill to prevent accidents. Folding Instructions Fold the treadmill: • It will save space when the treadmill is folded. Please turn off the switch and pull out the power plug before folding.
  • Page 11 Safety lock function • Disconnect the security lock, "E7" shows on the screen. The treadmill stops immediately, and a Di alarm sound is let out. Put the safety key back, all the data will be cleared in 2 seconds. KEY FUNCTION Start button, Stop button：...
  • Page 12 Incline+ -key: When the treadmill is in running state, use these keys to adjust the incline of the treadmill. Press incline+ to increase the incline and press incline- to decrease the incline. Incline quick keys: When the treadmill is on running state, press these keys to change the incline directly to 3/6/9%. DISPLAY FUNCTION Speed Display •...

  • Page 13: Translation Of Error Codes

    TRANSLATION OF ERROR CODES Fault Code Failure Description Fault Handling Communication Abnormal: Check the cable connection between the console when the power is on, the and the control border to ensure that each core connection between lower is fully plugged in. Replace the connection cable controller and the console is if it is damaged.

  • Page 14: Routine Maintenance

    ROUTINE MAINTENANCE Warning: Before cleaning or maintaining products, please be sure the power plug of the treadmill is pulled out. Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill. Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both sides of the exposed portion, which will reduce the accumulation of impurities.
  • Page 15 Picture A Picture B Multi-wedge Belt Tension Adjusting When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the abrasion, then you have to do some appropriate adjustment to facilitate the safe use. Judgment: the feeling of running with the occasional pause phenomenon, which indicating that the treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.
