Command access MLRK1-KAWP Insert Instructions page 9

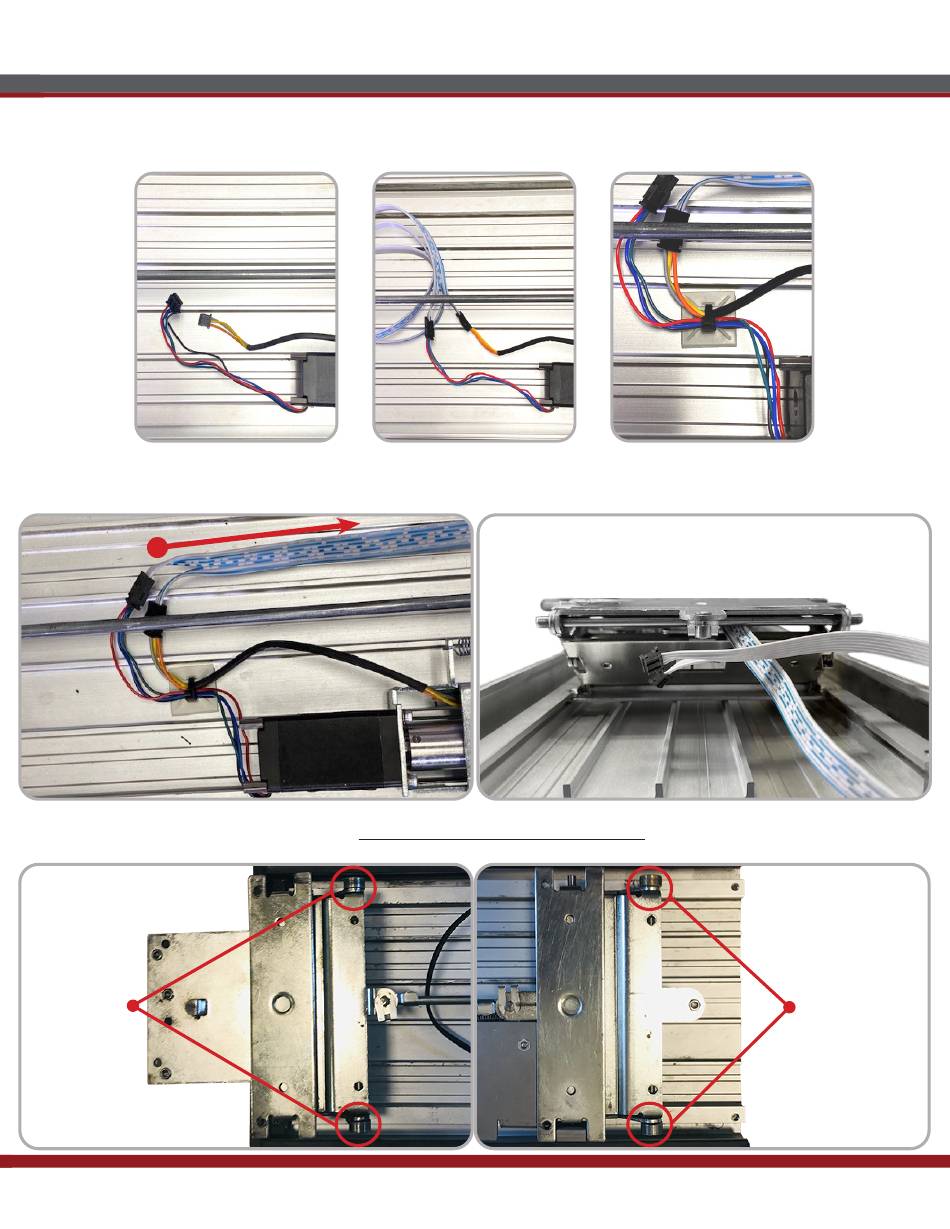

Once kit is in place connect 3-Pin and 4 -Pin Connectors on the Remote Module Cable to 3-pin and
6
4-Pin Connectors from Motor and Sensor. Apply Strain Relief as shown below or to installers best
judgement.
7
Guide wire to rear of device and feed through Back Activating Bracket. Ensure nothing is being
pinched or strained by depressing the Back Activating Bracket.
8
Before re-installing the Push Pad, ensure the bearings are still on the Activating Brackets!
Bearings
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C a n a d a c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
installation instructions
9
Bearings
# 2 0 6 3 8 _ D
