BWT AQA drink Ho.Re.Ca. General Instructions Manual page 9

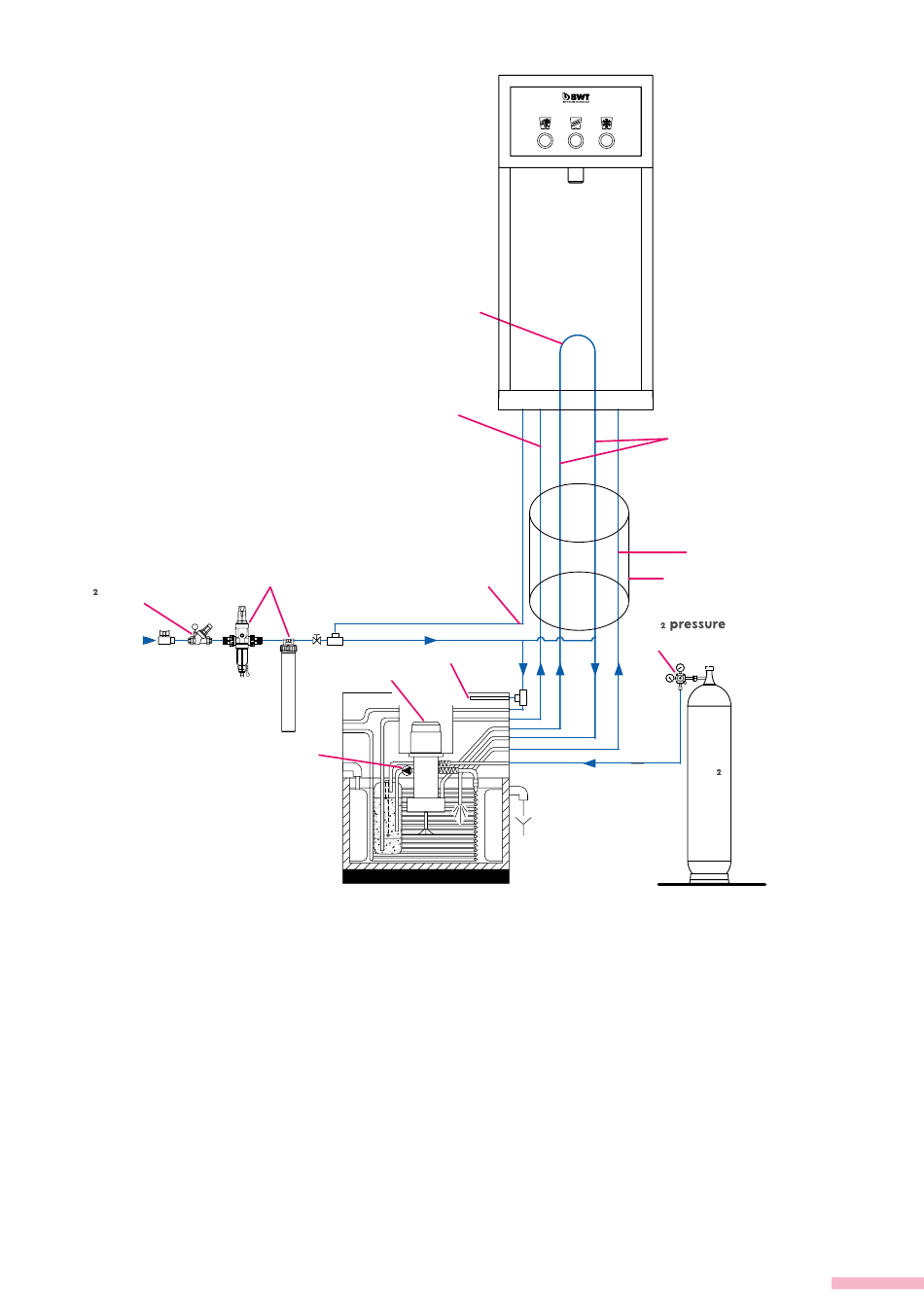

Installation diagram of an under-counter appliance:
H O pressure
reducer
Drinking water
Recirculation curve
Carbonated water
Still water
Ambient T
Filters
Flat water coil
Recycling pump
Pump
Recirculation pipes
Refrigerated still water
Python
CO
reducer
CO
E290
