Summary of Contents for BWT AQA drink DROP

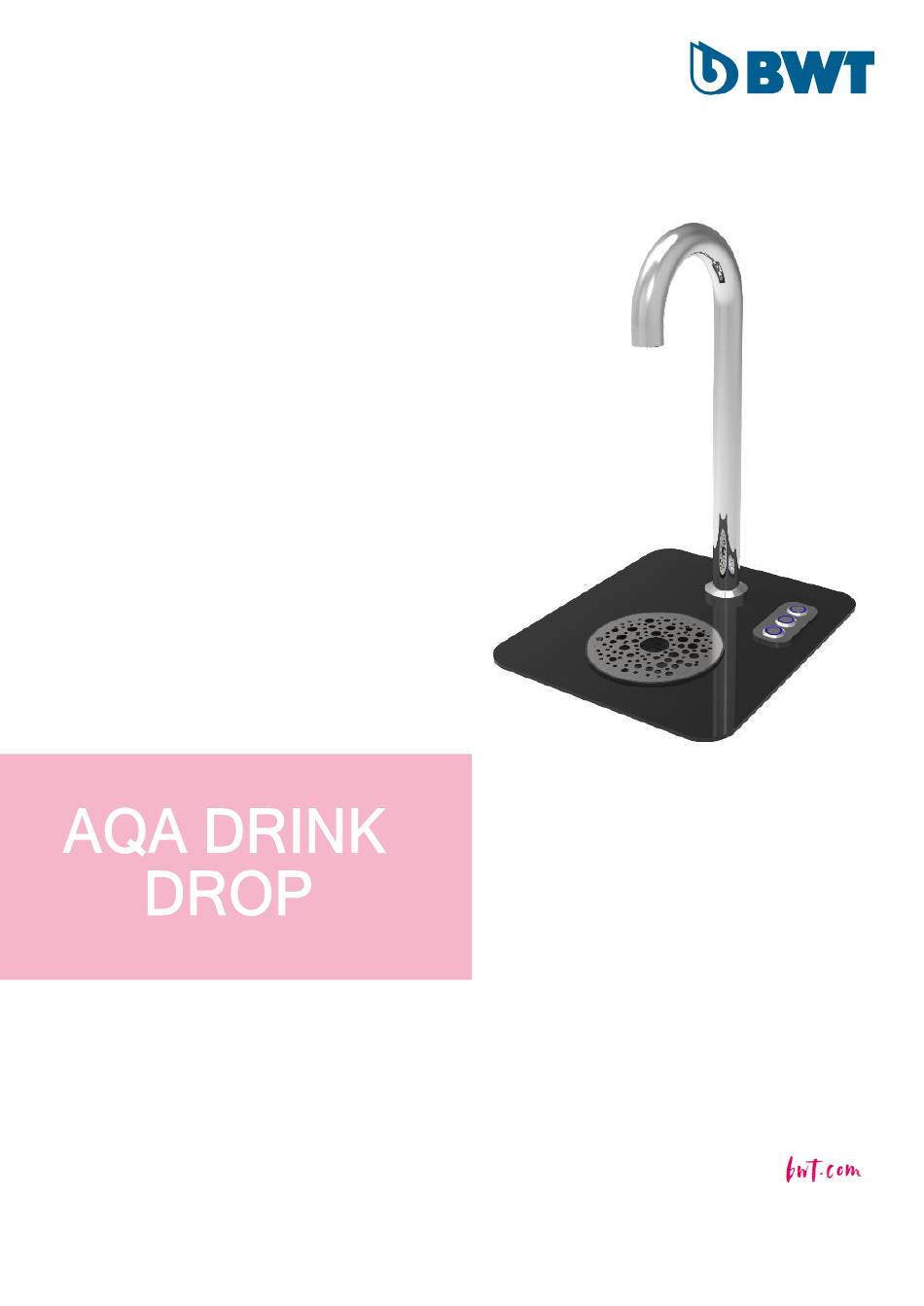

- Page 1 EN – GENERAL INSTRUCTIONS...
- Page 2 Devices for the treatment of drinking water. All products comply with Ministerial Decree 25/2012 and Ministerial Decree 174/2004. The installation must take place in compliance with current regulations and must be carried out by a qualified installer in accordance with Ministerial Decree 37/2008. ATTENTION: this equipment needs regular periodic maintenance in order to ensure the requirements of potability of water and maintenance of improvements as stated by the manufacturer.
- Page 3 EC declaration of conformity The equipment indicated in this installation manual use and maintenance of the BWT AQA DRINK DROP comply with the general safety requirements laid down in the following legislation: D.M. 25/12 regulation laying down technical provisions concerning equipment for the treatment of drinking water.
-
Page 4: General Warnings
ATTENTION: Read this manual carefully before using the device . The technical information contained in this manual is the property of BWT ; Reproduction of this manual, even partial, is prohibited Conserve the manual carefully and deliver it to the new owner in case of transfer of the appliance;... - Page 5 If the power cord is damaged, it must be replaced by the dealer or technical assistance service of BWT in order to prevent any risk. Do not crush the electrical cable or place heavy objects on it. Do not use adapters...
-
Page 6: Appliance Description
APPLIANCE DESCRIPTION BWT AQA DRINK DROP is an ELECTRONIC TAP ELECTRONIC TAP : these are connected to remote chillers distant from the dispensing point (the latter usually represented by a "tower") to which they are connected via a refrigerate pipes. -
Page 7: Technical Data
TECHNICAL DATA APPARATUS Mod. BWT AQA DRINK DROP The structure is SPECIAL METACRYLATE; faucet in stainless steel with satin -finishing . The appliance is made of materials suitable for contact with drinking water (D.M. 174/04) NOTE: The coil for the passage water is made LDPE PIPE Food &... - Page 8 Must ensure that the characteristics of the water system comply with the manufacturer's instructions. Use only certified fitting pipes for food (food use). Proceed with the connection of the connection pipe to the water supply after insertion of the BWT-BEWAPUR filter (optional) preceded by a hydraulic shut-off valve (excluded from delivery), Check the hydraulic seal.
-
Page 9: Electrical Connections
Dimension and installation of an AQA DRINK DROP ( in red color dimensions of the holes to be created on the AQA DRINK DROP base plate) ELECTRICAL CONNECTIONS The refrigerator-carbonator appliance complies with the safety regulations in force in the European Union and therefore has CE marking. -
Page 10: Maintenance
If the equipment had not been used for a long time (discharged for one or more weeks eg. holiday period ) or when replacing the cartridge of the BWT Bewapure HQ ®... - Page 11 PROBLEM CAUSE REMEDY Main water tap closed Open the shut-off valve Pipe connecting to the water supply Check the path of the food tube ac - here crushed or throttled drinkable The dispenser does not dispense Frozen water in the coil Contact Technical Support water Check correct insertion of the plug into the...
- Page 12 For the management of the recovery/disposal of its electrical and electronic equipment BWT adheres to a collective system in the form of a consortium according to articles 2602 et seq.
-
Page 13: Initial Check List
❐ ❐ maintenance? Retailer: ❐ ❐ Is there a BWT filter before the device (suggested)? ❐ ❐ Is there a non-return valve upstream of the dispenser? Installer: Is there a socket powered by 230V and protected, at a ❐... - Page 14 CUSTOMER INTERVENTION REGISTER: DEVICE: Specialized Technical Assistance Date Service Sheet Type of intervention Center Type of intervention: – – – AV= start-up maintenance GA=warranty AB=subscription – RI= repair A Q A drink drop...
- Page 15 ďWt. F O R Y O U A N D P L A N E T B L U E .
