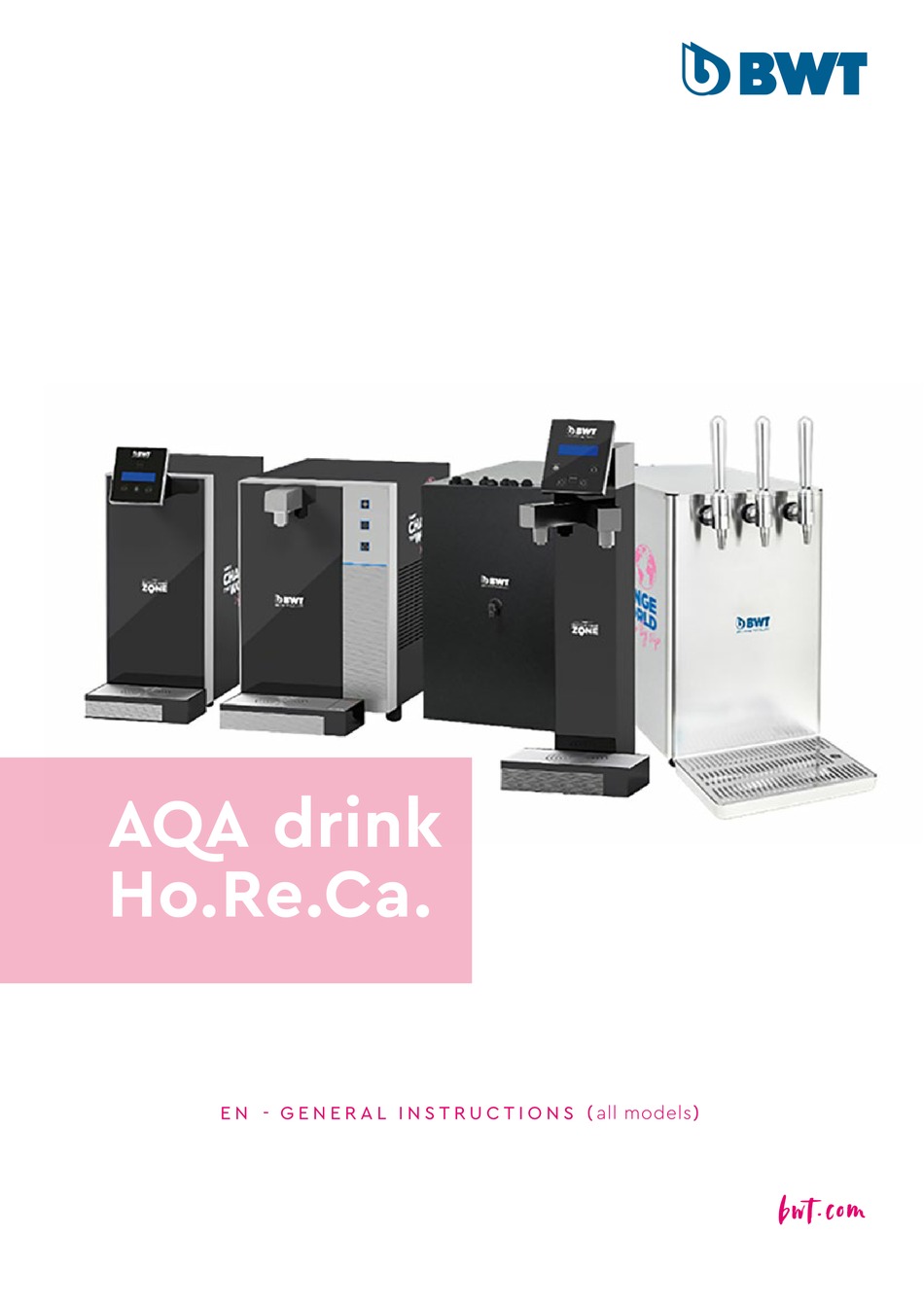

- Page 1 I S T R U Z I O N I G E N E R A L I tutti i modelli P A G . 4 G E N E R A L I N S T R U C T I O N S all models P A G . 1 6 all models bwt.com...
- Page 2 Equipment for the treatment of drinking water. All products comply with D.M. 25/2012 and D.M. 174/2004. Installation must be carried out in compliance with the regulations in force and must be performed by a qualified installer in accordance with D.M. 37/2008. ATTENTION: this equipment requires regular maintenance in order to guarantee the potability requirements of the water and the maintenance of the improvements as declared by the manufacturer.
- Page 3 D.L. 151 del 22 luglio 2005 in materia di riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché lo smaltimento dei rifiuti. BWT Italia Srl opera con Sistema Qualità certificato in ottemperanza a quanto prescritto dalla Normativa UNI EN ISO 9001:2008, con Certificato n. 677 emesso dall’ente CERTIQUALITY COMPLIANCE WITH REFERENCE STANDARDS –...
-
Page 4: General Warnings
WARNING: Read this manual carefully before using the device. The technical information contained in this manual is the property of BWT Italia S.r.l.; any reproduction, even partial, of this manual is prohibited. Keep the manual carefully and hand it over to the new owner in case the appliance is passed on;... -
Page 5: Package Opening
If the mains cable is damaged, it must be replaced by the dealer or BWT ITALIA Srl’s technical service department in order to prevent any risk. Do not crush the power cable or place heavy objects on it. Do not use adapters to connect the device to the electrical outlet. -
Page 6: Device Description
DEVICE DESCRIPTION The BWT AQA DRINK Ho.Re.Ca. appliances are drinking water chiller-gasifiers, which are to be connected directly to the drinking water network in order to supply chilled and chilled carbonated water at room temperature. The BWT AQA DRINK Ho.Re.Ca. -
Page 7: Technical Data
TECHNICAL DATA APPLIANCES AMBIENTALLY FRIENDLY APPLIANCE BWT USES ENVIRONMENTALLY FRIENDLY GAS R290A Mod. BWT AQA DRINK Ho.Re.Ca. (all models) These are chillers (fridge-gasifiers) with a monobloc ice bank for large users, such as communities, offices, bars, canteens and restaurants. These chillers are equipped with a coil to cool the water supplied as cold, and a system for carbonating the water, which is made as carbonated cold, i.e. -
Page 8: Installation
Use only pipes and fittings certified for food use. Proceed with the connection of the connection pipe to the water supply after inserting the BWT-BEWAPUR filter (optional) preceded by a hydraulic shut-off valve (not included in the scope of delivery), Check the hydraulic tightness. - Page 9 Installation diagram of an under-counter appliance: Recirculation curve Carbonated water Recirculation pipes Refrigerated still water Still water Ambient T Python Filters H O pressure reducer Drinking water reducer Flat water coil Recycling pump Pump E290 A Q A d r i n k H o . R e . C a .
-
Page 10: Electrical Connections
Frost can damage the appliance if left idle and with a full tank at temperatures below 0 °C. Do not expose CO2 cylinders to high temperatures (in the sun) or too low BWT AQA DRINK maxi pressure reducer with temperatures (in cold rooms). double pressure gauge... -
Page 11: Maintenance
Tightly attach the pressure reducer (not included in the scope of supply) Screw the ring nut of the pressure reducer onto the thread of the tap on the refillable CO2 cylinder (or the hose with anti-bandage if fitted). At this stage you must pay close attention to the hose connected to the pressure reducer, which must not be pulled or crushed in any way. -
Page 12: Problems, Causes And Remedies
If the device has not been used for a longer period of time (e.g. if it has been switched off for one or more weeks, e.g. during holidays) or if the BWT Bewapure HQ® filter cartridge has been replaced, it is obligatory to carry out the periodic sanitisation following the procedures below: following the recommended procedure. -
Page 13: Temporary Decommissioning
Non-observance of the installation requirements and the operator’s duties will result in the exclusion of warranty claims. BWT ITALIA SRL is not liable for faults in the device or inadequate performance caused by an incorrect combination of mate- rials, the introduction of corrosive products or iron and manganese deposits, or for damage resulting from these reasons. -
Page 14: Initial Checklist
Is the room accessible? Is there sufficient manoeuvring space for maintenance? Dealer: Is there a BWT filter before the unit (recommended)? Is there a check valve upstream of the appliance? Installer: Is there a protected 230V socket available at a maximum distance of 1.2 m? - Page 15 INTERVENTION LOG CUSTOMER: APPLIANCES: Technical Assistance Centre Date Service Sheet Type of intervention Specialised Intervention type: SU= start-up – MA= maintenance – WA= warranty – SB= subscription – RE= repair A Q A d r i n k H o . R e . C a .
- Page 16 BWT Italia BWT Italia +39 02 2046343 +39 02 2046343 info@bwt.it info@bwt.it bwt.com bwt.com F O R Y O U A N D P L A N E T B L U E . F O R Y O U A N D P L A N E T B L U E .
