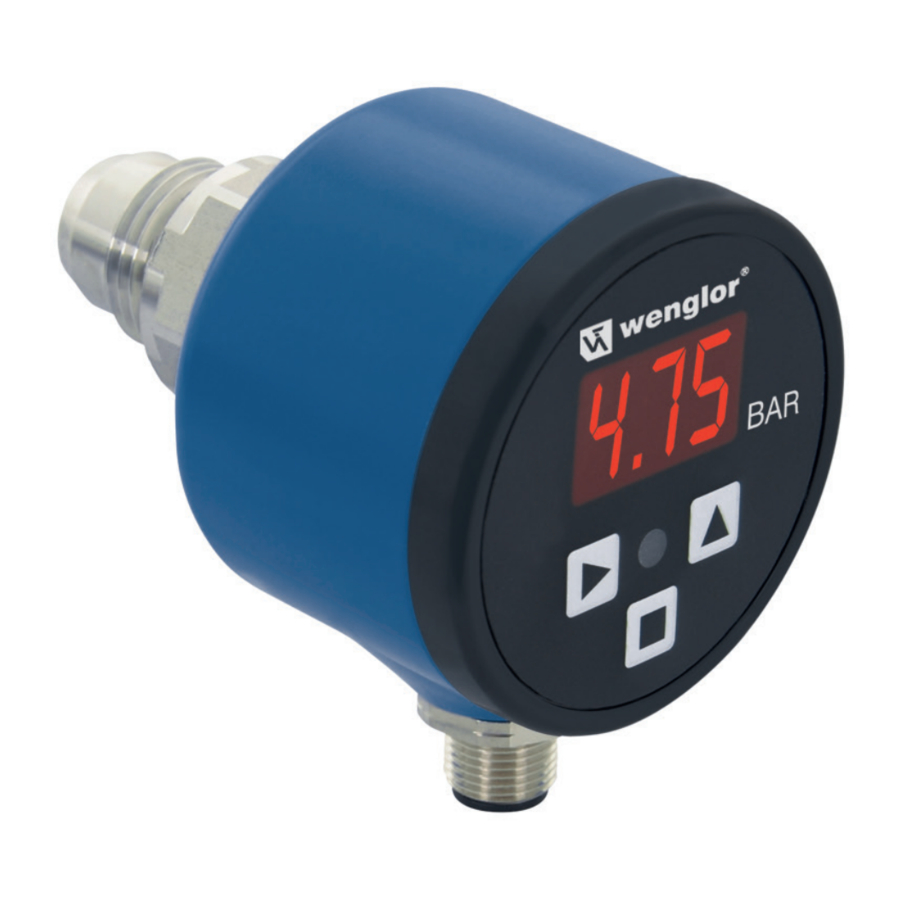

Wenglor FFAP Series Operating Instructions

Dimensions

All dimensions in mm

= Rotatable relative to housing at 340°

Connection Diagrams

Control Panel

Complementary Products (see catalog)

wenglor offers Connection Technology for field wiring.

Suitable Connection Technology No.

Proper Use

This wenglor product has to be used according to the following functional principle:
UniBar Pressure Sensors
UniBar pressure sensors measure the relative pressure in closed systems of any medium in the range of −1 to 600 bar.

Safety Precautions

Technical Data

Measurement deviation < 0,5% of the measuring range (including hysteresis, linearity, offset)
Medium Liquids, gases
Switching Hysteresis 2 %
Response see technical data
Temperature Drift 0,025% / K

Electrical Data
Supply Voltage 16...32 V DC
Current Consumption (Ub = 24 V) < 60 mA
Short Circuit Protection yes
Reverse Polarity Protection yes

PNP switch output
Switching Output / Switching Current < 250 mA
Switching Output Voltage Drop < 2 V
NO / NC switchable yes

Relay switch output
Switching current (24 V DC) < 1 A

Analog output current 4...20 mA
Analog Output scalable 2:1
Current Output Load Resistance < 500 Ohm

Analog output voltage 0...10 V
Current load voltage output < 20 mA

Mechanical Data
Housing Material PC, PBT, FKM
Material Control Pane Polyester
Material in contact with media 1.4435; 1.4404
Temperature of medium −25°C...80°C
Ambient temperature −25°C...80°C
Operating altitude < 2000 m
Degree of Protection IP65 at P < 25 bar, IP67 at P ≥ 25 bar, verified by wenglor
Air humidity 95%, rel.h.
Connection M12×1; 4-pin
Connection for relay M12×1; 5-pin
Connection cable length max. 30 m

For actual function scope and sensor-specific data see type plate.

Mounting Instructions

During operation of the Sensors, the corresponding electrical and mechanical regulations, as well as safety regulations must be observed. Suggested tightening torque of process connection 15 Nm.

Note! Before disassembly, it must be ensured that the system is depressurized, otherwise there is a risk of injury. The pressure membrane of front flush sensors must not be touched. Do not remove the protective cap until ready to install.

Initial Start-Up

After switching on the device, 888 flashes on the display for 3 s (initialization phase). Then the device is ready for operation and the applied pressure is shown on the display. The parameters such as NC / NO, switching point etc. can be changed via a simple menu by pressing the three buttons (see operating structure).

Note! When using sharp objects, the membrane covering the buttons may be damaged.

Display Messages

Display	Comment
888	Sensor is initializing
Pmax	Pressure above measuring range
Er0	Not possible to correct offset, pressure exceeding 2% of measuring range
Er3	Internal sensor fault

Settings

To view or change the parameters press the button 2× within 10 s, then press the  button 2× and finally the button 2×. From the main level, the and  buttons can be used to select other main levels, menu items and sub-menu items (see operating structure). At the end of a menu branch, the  button can be used to modify or switch the parameters. To confirm the parameters or to exit a menu item press the button. The parameters are not activated until the menu is closed. If the supply voltage is interrupted, the modified parameters will not be saved.

Operating Structure

Maintenance Instructions

Proper Disposal

wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal.

O-P O ffset suppression, this function can be used to correct offset deviations < 2%

rAn A nalog output spread, configurable from 1:1 to 2:1 of the measuring range Factory setting oFF = 1:1

SHy SHy Switching output hysteresis, configurable switchback point between 2% and SP setting of the measuring range. If SHy=On, SHi cannot be activated.
Factory setting oFF

SHI Switching output window, configurable lower window limit. Between 2% and SP setting of the measuring range. If SHi=On, SHy cannot be activated.
Factory setting oFF

O-C Switching output normally closed (n.c.)/ normally open (n.o.) Factory setting normally open (n.o.)

SP Switching point factory setting 50% of measuring range

SO Menu level for switching point parameter setting
Display of the applied pressure

EU Declaration of Conformity
