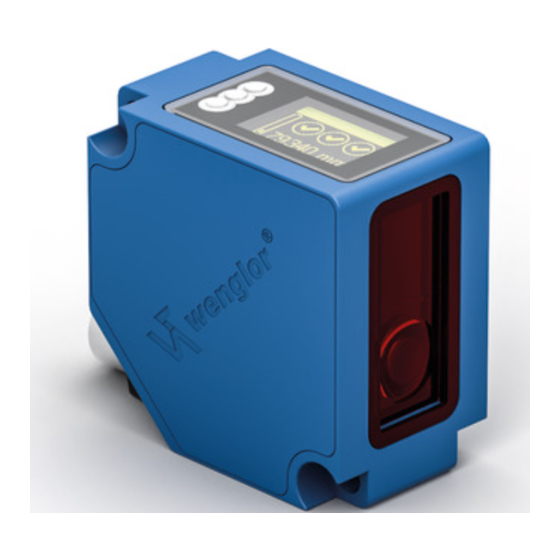

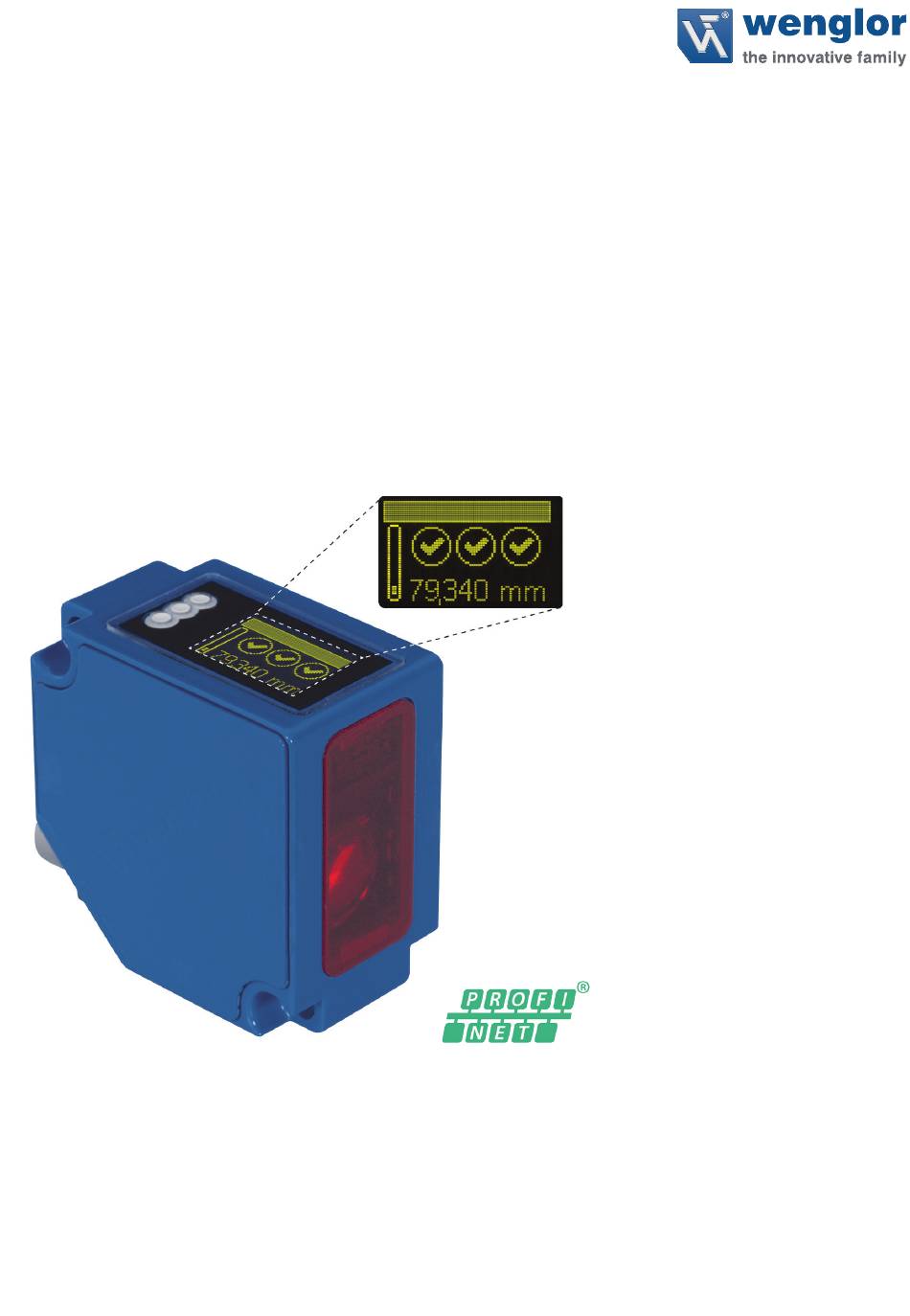

- Page 1 OCPxxxP0150P High-Performance Distance Sensor Operating instructions Available as PDF only Status: 27.01.2016 www.wenglor.com...
-
Page 2: Table Of Contents
Index Use for Intended Purpose Safety Precautions 2.1. Safety Precautions 2.2. Laser/LED Warnings EU Declaration of Conformity Device Features 4.1. Connection Diagram 4.2. Housing Dimensions 4.3. Control Panel 4.4. Complementary Products Mounting Instructions Initial Operation 6.1. Initial Operation 6.2. Default Settings Functional Overview OLED-Display 7.1. - Page 3 Network Settings 10. Web-based configuration 10.1. Invoking the Management Interface 10.2. Page layout 10.3. Device general 10.4. Device Settings 10.5. Measured Value Settings 10.6. Device Test 11. Maintenance Instructions 12. Proper Disposal...
-
Page 4: Use For Intended Purpose
2.2. Laser/LED Warnings Laser class 1 (EN 60825-1) LASER CLASS 1 Standards and safety instructions must be observed. EN60825-1 2007 3. EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in download area. RoHS... -
Page 5: Device Features
4. Device Features Order No. OCP801P0150P OCP162P0150P OCP352P0150P OCP662P0150P Working Range 30…80 mm 40…160 mm 50…350 mm 60…660 mm Measuring Range 80 mm 160 mm 350 mm 660 mm Reproducibility 15…50 µm 20…70 µm 20…150 µm 70…1000 µm Linearity Deviation 50…100 µm... - Page 6 Typical Reproducibility Curves within the Working Range OCP801P0150P OCP162P0150P 30 35 40 45 50 55 60 65 70 75 80 88 100 112 124 136 148 160 Working Range mm Working range mm OCP662P0150P OCP352P0150P 1000 60 120 180 240 300 360 420 480 540 600 660...
-
Page 7: Connection Diagram
4.1. Connection Diagram Legend Encoder A Platinum measuring resistor Encoder B Supply Voltage + not connected Digital output MIN Supply Voltage 0 V Test Input Digital output MAX Supply Voltage (AC Voltage) Test Input inverted Digital output OK Switching Output (NO) Trigger Input Switching Output... -
Page 8: Control Panel
Tool Links present Green Communication Green flashing 4.4. Complementary Products wenglor offers Connection Technology for field wiring. Suiting Mounting Technology No. Suitable Connection Technology Midspan Adapter Z0029 Switch with PoE ZAC50xN0x 5. Mounting Instructions When using the Sensor, follow the corresponding electrical and mechanical regulations, standards and safety rules. -
Page 9: Initial Operation
6. Initial Operation 6.1. Initial Operation Each Ethernet device has a unique MAC address. With wenglor you can find the MAC address on the type plate of the device. In the default settings, the device has the following IP-Address 192.168.100.1. You can access the website of the device via the IP-Address. -
Page 10: Functional Overview Oled-Display
7. Functional Overview OLED-Display Process Text Analyse Mode Network Display Rotate Intensity Medium Power save Screensaver T for Teach-In Preset Z for reset Value to 0 Offset Change Value in µm Apply T for apply Z for deactivate High Resolution Middle Filter Illumination... - Page 11 Fig. 1: Set language menu Navigation by pressing the button: : Navigation up. : Navigation down. : Enter Button. The selection is confirmed by pressing the Enter button. Meaning of the menu items: : one level higher in the menu. 3Back : Switch to display mode.
-
Page 12: Display
7.1. Run The Sensor switches into display mode. PROFINET device name Bar graph display of the current Status LEDs measured value relative to the measuring range Current measured value in mm Symbol descriptions of status LEDs: Symbol Significance State 1 State 2 State 3 Symbol 1... -
Page 13: Display Intensity
7.2.2. Display Intensity Intensity Set the display intensity Min Min: The intensity of the display is set to a minimum value. Normal Normal: The intensity of the display is set to a medium value. Max Max: The intensity of the display is set to a maximum value. ... -
Page 14: Resolution
7.4. Resolution The number of pixels used by the CMOS line is defined by the resolution. The higher the resolution set, the smaller the detectable movements of an object and the slower the output rate of the Sensor becomes when there is a change in the measured values. -
Page 15: Laser
7.7. Output Rate The output rate indicates how often the measured value is refreshed per second at the output. Output Rate Adjust Output Rate Normal Normal: The normal output rate is 100/s. Fast This means that a new measured value is read out every 10 ms. 3 Back Fast : The fast output rate is 330/s. -
Page 16: Network
List of status bits: Number Function Description of when the bit is set Measured value read- General error One of the following bits is set. — Distance to object too The current measured value is below the Measuring range lower small working range. -
Page 17: Language
7.11. Language The menu language can be changed in the menu item “Language”. The user is automatically prompted for his desired language at initial operation and after each reset. Language Set menu language Deutsch The menu appears in the selected language immediately after selection. ... -
Page 18: Password
• The value range of the password number ranges from 0000…9999 It is necessary to note the newly defined code before changing the password. A forgotten password can only be overwritten by a general password. The general password can be requested by sending an e-mail to support@wenglor.com. -
Page 19: Information On Profinet
8. Information on PROFINET You can find the GSDML file for download at www.wenglor.com → Product World → Product search (order number) → Download. 8.1. Overview of Device Access Point (DAP) Modul-ID: Submodul: Parameter: Name Data Byte Default Value Value... - Page 20 Module Distance Value Module ID: 1 Submodule: 1 Slot: 1 Format Cyclical Data: 4 Byte Statusbits (see Module status) Input Output Value Range Data Type Unit Description Measured – –9999…9999 Integer32 10 µm Distance Value value Statusbits – Unsigned32 – (see Module status) Parameter: Name...
- Page 21 Module Filter Module ID: 3 Submodule: 1 Slot: 3 Format Cyclical Data: Input Output Value Range Data Type Unit Description Filter Value Filter Value 0…9 Unsigned8 – 0: filter size 1 1: filter size 2 2: filter size 5 3: filter size 10 4: filter size 20 5: filter size 50 6: filter size 100...
- Page 22 Module Display Text Module ID: 5 Submodule: 1 Slot: 5 Format Cyclical Data: Input Output Value Range Data Type Unit Description Display Display Text 19 Visible – Displayable Display Text Text Text Character String Parameter: Name Value Range Data Type Index –...
- Page 23 Module Resolution Module ID: 7 Submodule: 1 Slot: 7 Format Cyclical Data: Input Input Output Value Range Data Type Unit Description Resolution Resolution 0…2 Unsigned8 – 0: Resolution high 1: Resolution medium 2: Resolution low Parameter: Name Value Range Data Type Index –...
-
Page 24: Network Settings
Module Exposure Time Module ID: 9 Submodule: 1 Slot: 9 Format Cyclical Data: Input Input Output Value Range Data Type Unit Description Exposure Time Exposure Time 100…2000 Unsigned16 µs Max Exposure Time Parameter: Name Value Range Data Type Index – –... -
Page 25: Page Layout
The overview page “Device general” is not password protected. If other pages are accessed, a password request appears. The following user data is preset in the default settings: User name: admin Password: admin The password can be changed on the “Device settings” page. 10.2. -
Page 26: Device General
10.3. Device general After establishing the connection, the overview page “Device general” is displayed. Device Name: A unique device name can be freely assigned to each device via the PROFINET control. The device name is also displayed in the first line of the display. If no name is assigned, [offline] is displayed here. -
Page 27: Device Settings
10.4. Device Settings Network Settings By clicking on “Send” the settings are saved. After interruption of the power supply, the network settings are applied. Network Reset In a network reset, the network settings are reset to the factory settings. See chapter “6.2. Default Settings” on page 9. -
Page 28: Measured Value Settings
10.5. Measured Value Settings Offset Default Offset: Set default offset. By clicking on “Teach” the current measured value is adopted as the default value. By clicking on “Reset” the offset value is set to 0. By entering a value in the field and clicking on “Send” a freely selected value can be set as the offset value. -
Page 29: Device Test
• Do not use any solvents or cleaning agents to clean the Sensor, which could damage the device. 12. Proper Disposal wenglor sensoric gmbh does not take back unusable or irreparable products. When disposing of the products, the relevant national regulations for waste disposal apply.
