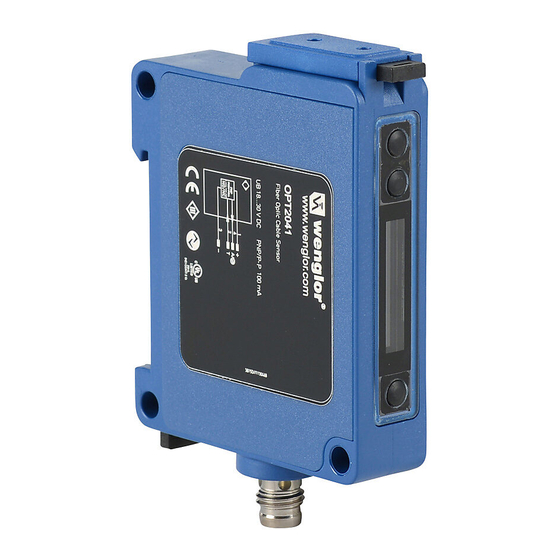

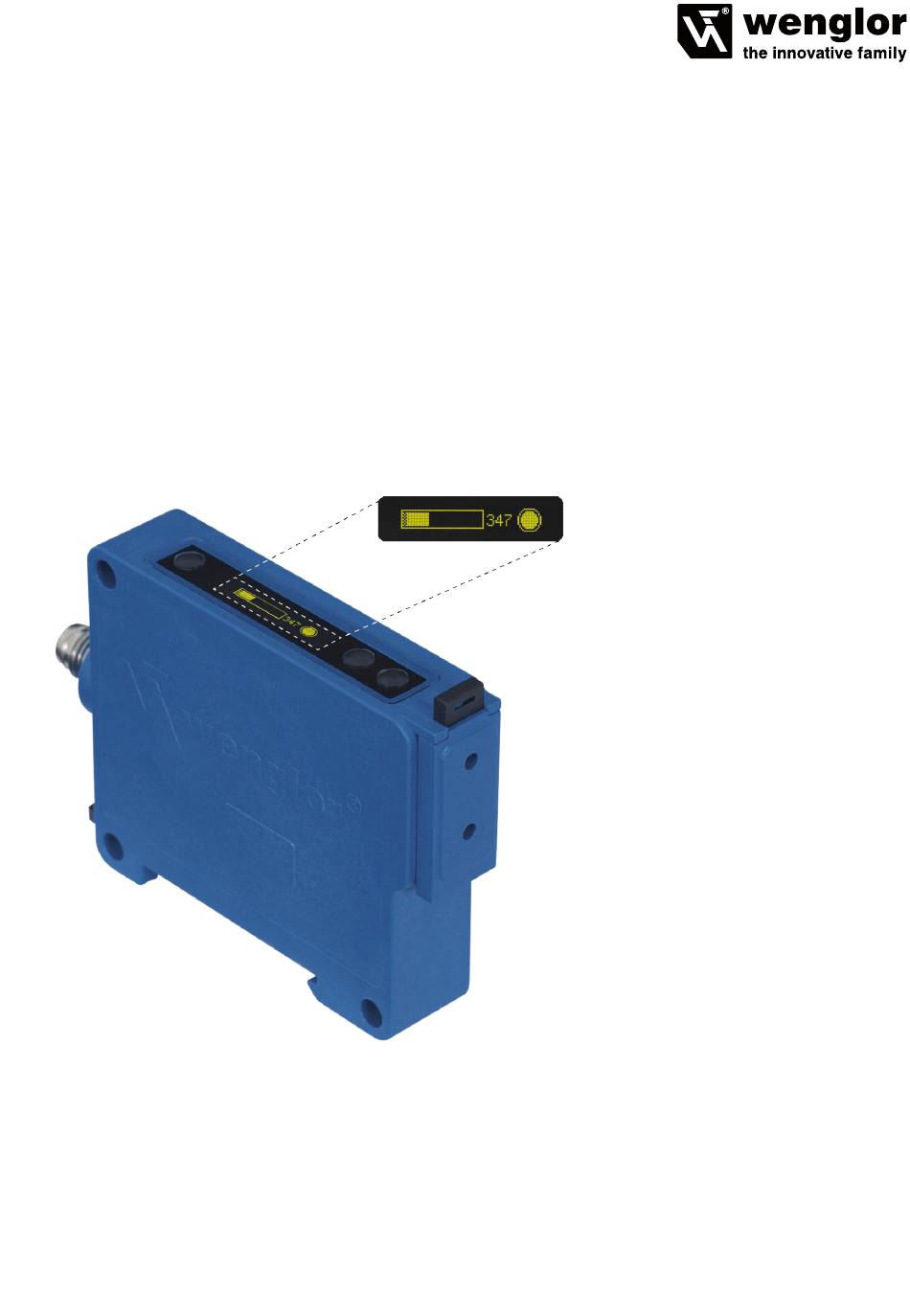

- Page 1 OPT2041 Fiber Optic Cable Sensor Operating Instructions Available as PDF only Status: 18.06.2018 www.wenglor.com...
-
Page 2: Table Of Contents
Index 1. Proper Use 2. Safety Precautions 3. General Information Regarding the Device 4. Device Features 4.1. Connection Diagrams 4.2. Housing Dimensions 4.3. Declaration of Conformity 4.4. Technical Data 4.5. Complementary Products 4.6. Control Panel 4.7. Installation Instructions 4.7.1. Mounting to a DIN rail 4.7.2. -
Page 3: Proper Use
• Not a safety component in accordance with the EU Machinery Directive General Information Regarding the Device wenglor fiber optic cables can be adapted to these Sensors. The modern OLED display assures easy, menu- driven Sensor setup. Signal strengths and the switching threshold can be read from the display as numeric... -
Page 4: Device Features
Switching Output/IO-Link Teach Input – Supply Voltage “0 V” 4.2. Housing Dimensions 1 = Transmitter Diode 2 = Receiver Diode 4.3. Declaration of Conformity The EC declaration of conformity can be found on our website at www.wenglor.com in download area. RoHS... -
Page 5: Technical Data
4.4. Technical Data Optical Data Switching Hysteresis < 15 % Light Source Red Light Wave Length 660 nm Service Life (T = +25 °C) 100000 h Max. Ambient Light 10000 Lux Electrical Data Supply Voltage 18...30 V DC 18...30 V DC Current Consumption (Ub = 24 V) <... -
Page 6: Complementary Products
4.5. Complementary Products Glass Fiber Optic Cable Plastic Fiber Optic Cable 4.6. Control Panel 20 = Enter Button 22 = Up Button 23 = Down Button 60 = Display 4.7. Installation Instructions All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to when installing and operating the Sensor. -
Page 7: Side Mounting
fig.1 Mounting of the Sensor to a DIN rail 4.7.2. Side mounting Side mounting a unit: Secure the Sensor with screws (M4) through the mounting holes. fig. 2 Side mounting of the Sensor 4.7.3. Connecting the plastic fibre-optic cable •... -
Page 8: Initial Operation
Initial Operation Connect the Sensor to 18 to 30 V DC before configuring the settings. The desired menu language must be selected after initial operation, and after each reset. See section 6.7 in this regard. Switch to the configuration menu by pressing any key. Note: If no settings are adjusted in the configuration menu for a period of 30 seconds, the Sensor is auto- matically returned to the display mode. -
Page 9: Menu Structure
5.2. Menu Structure The Sensor’s menu is laid out as follows: • normal Signal Strength Switching Status Indicator/ Password * Only after Window Teach... -
Page 10: Adjustment
Adjustment 6.1. Run The Sensor is switched to the display mode when the enter key is pressed. Received Signal Strength (numeric value 0 – 999) Bar chart of received Switching Status: Signal Strength Dark dot = Sensor connected Blinking = Contamination 6.2. - Page 11 T 2-Point Two-Point Teach-In Two objects are taught in by pressing the T1 and T2 keys. • Align the spot to object A. • Briefly press the T1 key. • Align the spot to object B. Calculated • Briefly press the T2 key. Switching Distance è...
-
Page 12: Output
External Teach-In The last teach-in procedure selected from the menu is used during external teach-in. For this reason, the desired teach-in procedure must be executed once before external teach-in. • Set the Sensor to the display mode. • Apply 10 to 30 V DC to the teach-in input for at least one second. è... -
Page 13: On-/Off-Delay
6.3.1. ON-/OFF-Delay Reflex mode operation Through beam operation Object Object time bright Light input dark time Delay Delay On-Delay time Delay Delay Off-Delay time Delay Delay On-Delay time Delay Delay Off-Delay time fig. 4 ON-/OFF-Delay 6.4. Operating Mode In the menu operating mode, the sensitivity of the Sensor is set. Function Description Operating Mode... -
Page 14: Display
6.6. Display The display is set up with the help of the display menu. Function Description Rotate Rotating the Display The display is rotated 180° by pressing the enter key. The display can be returned to its original position by pressing the same key once again. Intensity Adjusting Display Brightness After pressing the 4 and 3 keys, the menu appears immediately with... -
Page 15: Information
6.8. Information The following information regarding the Sensor is displayed in the “Info” menu: • Sensor type • Sensor version 6.9. Reset Sensor settings can be returned to their default values with the help of the “Reset” menu. Function Description Reset Default Settings All of the selected Sensor settings are returned to their default values by... -
Page 16: Io-Link Parameter And Process Data
• The password function is deactivated upon shipment from the factory. • The password is set to “0” upon shipment from the factory. • Passwords can be selected within a range of 0000 to 9999. It must be assured that the newly selected password is noted before the password is changed. If the password is forgotten, it must be overwritten with a master password. - Page 17 Parameter Main Page (Parameter 0 Bit 7-0) Parameter 0 Bit 0 Reset to delivery status 1 = Do reset Bit 1 Display Language 00 = German, 01 = English, Bit 2 Display Language 10 = French, 11 = Spanish Bit 2 Bit 1 Bit 3 Rotate Display 180°...
- Page 18 Parameter 4 High Byte Off Delay in ms Parameter 5 Low Byte Off Delay in ms Parameter 6 High Byte Impulse Duration in ms Parameter 7 Low Byte Impulse Duration in ms Parameter 8 High Byte of lower Threshold Parameter 9 Low Byte of lower Threshold Parameter 10 High Byte of upper Threshold...
-
Page 19: Maintenance Instructions
• It is advisable to clean the lens and the display, and to check the plug connections at regular intervals. • Do not clean with solvents or cleansers which could damage the device. Proper Disposal wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal.
