Summary of Contents for Wenglor A1P05

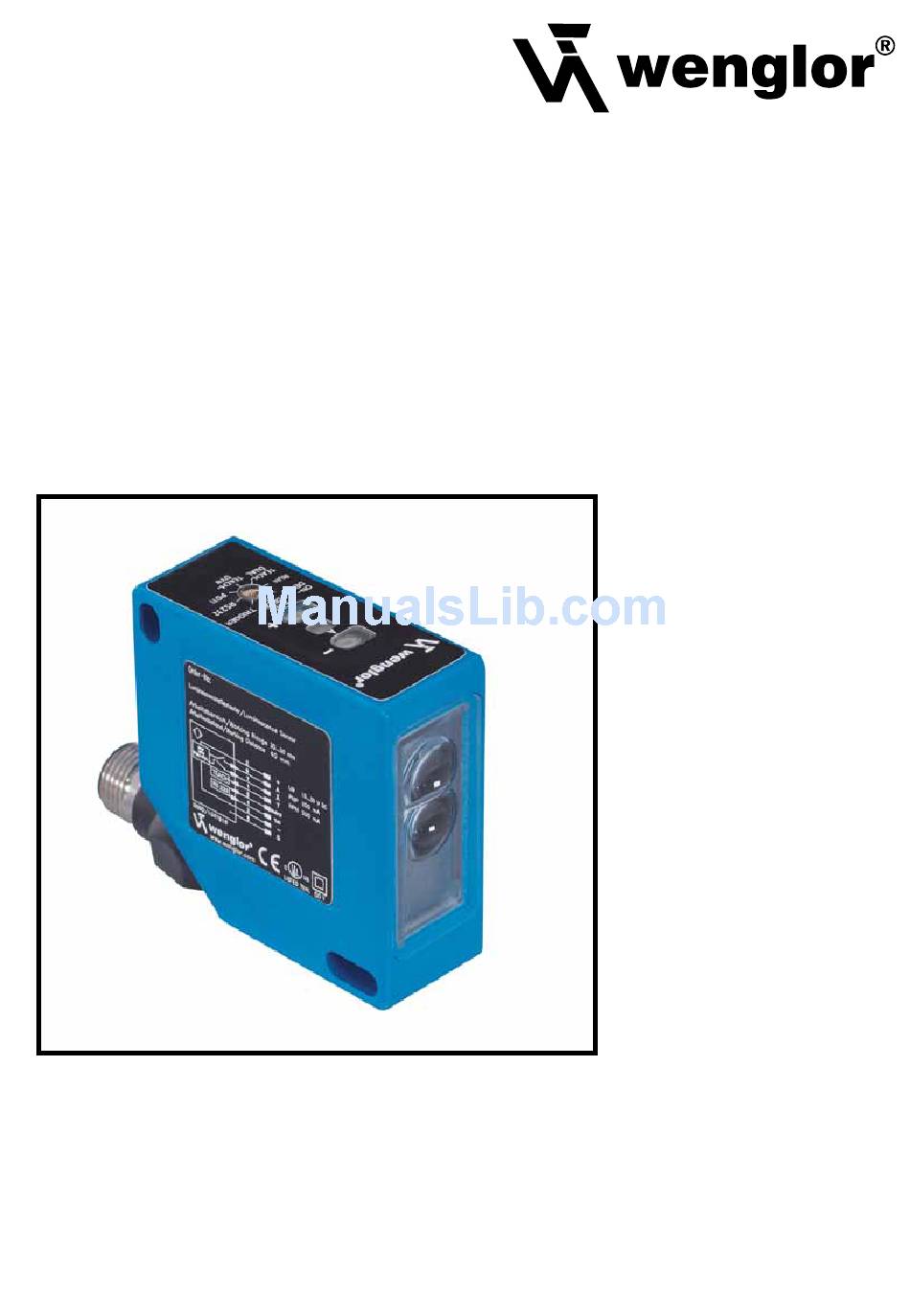

  • Page 1 A1P05 A2P05 A1P16 A2P16 Luminescence Sensors Operating Instruction SAP-No. 80204 Stand: 05.07.2012...
  • Page 2: Table Of Contents

    8.6. Trigger Function at Pin 5 8.7. Returning All Sensor Settings to their Default Values 8.8. Continuous Read-Out of Intensity Values via the Interface Interface 10. Maintenance Instructions 11. Proper Disposal Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 3: Proper Use

    1. Proper Use This wenglor product has to be used according to the following functional principle: Luminescence Sensors emit UV light with a wavelength of 380 nm. If the emitted light strikes a luminescent object, it reflects light within a visible wavelength range of 420 – 750 nm in accordance with the utilized lumines- cent substance.
  • Page 4: Technical Data

    5. Technical Data Order-No. A1P05 A1P16 A2P05 A2P16 Working Range 30…50 mm 16…20 mm 30…50 mm 16…20 mm Working Distance 40 mm 18 mm 40 mm 18 mm Receiver Filter GG 420 GG 420 OG 570 OG 570 Receiving Range 420…750 nm...
  • Page 5: Connection Diagram

    = Trigger mode operation RS-232 = Interface operation TEACH DUAL = Two-Point Teach-In TEACH DYN = Dynamic Teach-In POTI = Potentiometer function = Run function Ý = Rotary selector switch Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 6: Complementary Products

    During use of the Sensors, applicable electrical and mechanical regulations, standards and safety precautions must be adhered to. The Sensor must be protected against mechanical influences. These Sensors are not suitable for safety applications! The Sensor must be securely mounted during operation. A1P16 A1P05 A2P16 A2P05 40 mm 18 mm 90°...
  • Page 7: Commissioning

    7. Commissioning 7.1. General Device Information The wenglor AxP luminescence Sensor is available in two different versions as regarding the receiver filter. ® The A1Pxx is equipped with a type GG420 receiver filter which allows blue to pass, and the A2Pxx with a type OG570 receiver filter which allows yellow-green to pass.
  • Page 8: Setting The Switching Threshold With The Teach-In Function

    Sensor output A is activated when the Sensor recognizes the intensity value which was taught in first. Sensor output A is deactivated when the Sensor recognizes the intensity value which was taught in second. Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 9 If the difference between the two acquired intensity values is too small, the output switching status indicator A blinks rapidly for approximately 3 seconds, and switching thresholds are not updated. Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 10 If the difference between the two acquired intensity values is too small, the output switching status indicator A blinks rapidly for approximately 3 seconds, and switching thresholds are not updated. Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 11: Checking For Correct Function

    • Briefly press the plus key  è On-delay is increased • Briefly press the minus key  è On-delay is decreased • Set the rotary selector switch Ý to RUN Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 12: Returning All Sensor Settings To Their Default Values

    è The LEDs at both keys start blinking è The LEDs stop blinking after approximately 5 seconds • Release both keys • The Sensor has been returned to its factory default settings Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 13: Continuous Read-Out Of Intensity Values Via The Interface

    All Sensor settings can be selected digitally with a PC, and all values generated by the Sensor can be read out at a PC. Interface Configuration Baud rate: 38,400 baud, 8 data bits, no parity, 1 stop bit Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 14 Connecting the Sensor to a PC, a Controller etc. with the wenglor -S232W3 Plug Adapter ® Plug connectors included with the wenglor S232W3 plug adapter: ® • 8-pin M12 plug connector for connecting the power supply and the outputs • 8-pin M12 socket connector for direct Sensor connection •...
  • Page 15 Transmitting Data (user data): After establishing a connection, user data are transmitted. Disconnect (frame end): If the NAK character is transmitted during data transfer, the wenglor Sensor disconnects and establishes a new ® connection. After all data have been transmitted, the wenglor Sensor transmits the checksum BCC and finally ®...
  • Page 16 Adjust on and Off-Delay Read out intensity value Set up output stages Read out Sensor configuration Change Sensor configuration Query Sensor status Execute Sensor reset Query Sensor version Table 9 Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 17 4 bytes oooo: Upper threshold Length: 4 bytes uuuu: Lower threshold Length: 4 bytes Status of switching outputs Bit 0: output A, bit 1: output Ā Every 15 ms continuously Checksum Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 18 Teach-In mode for external Teach-In 02: Dynamic Teach-In 03: Two-Point Teach-In Selected Off-Delay 00-07: 0-1-2-5-10-20-50-100 ms Selected On-Delay 00-07: 0-1-2-5-10-20-50-100 ms Output stage programming 01: PNP 02: NPN 03: Push-Pull : Checksum Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 19 Response Frame from the Sensor /070V8a:bbccqq. Execute reset /000R4D. /050ROK0007C. /030MR4D73. Table 17 Software version Sensor group (luminescence Sensor: OC) Sensor type (A1P05: 01, A1P16: 02, A2P05: 03, A2P16: 04) Checksum Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...
  • Page 20: Maintenance Instructions

    • Do not clean with solvents or cleansers which could damage the device. 11. Proper Disposal wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. Sensors for your success www.wenglor.com...
  • Page 21 Sensors for your success www.wenglor.com Sensors for your success www.wenglor.com...

This manual is also suitable for:

A2p05A2p16A1p16
