EVAL-M1-IM241 user guide
iMOTION™ modular application design kit
The board at a glance

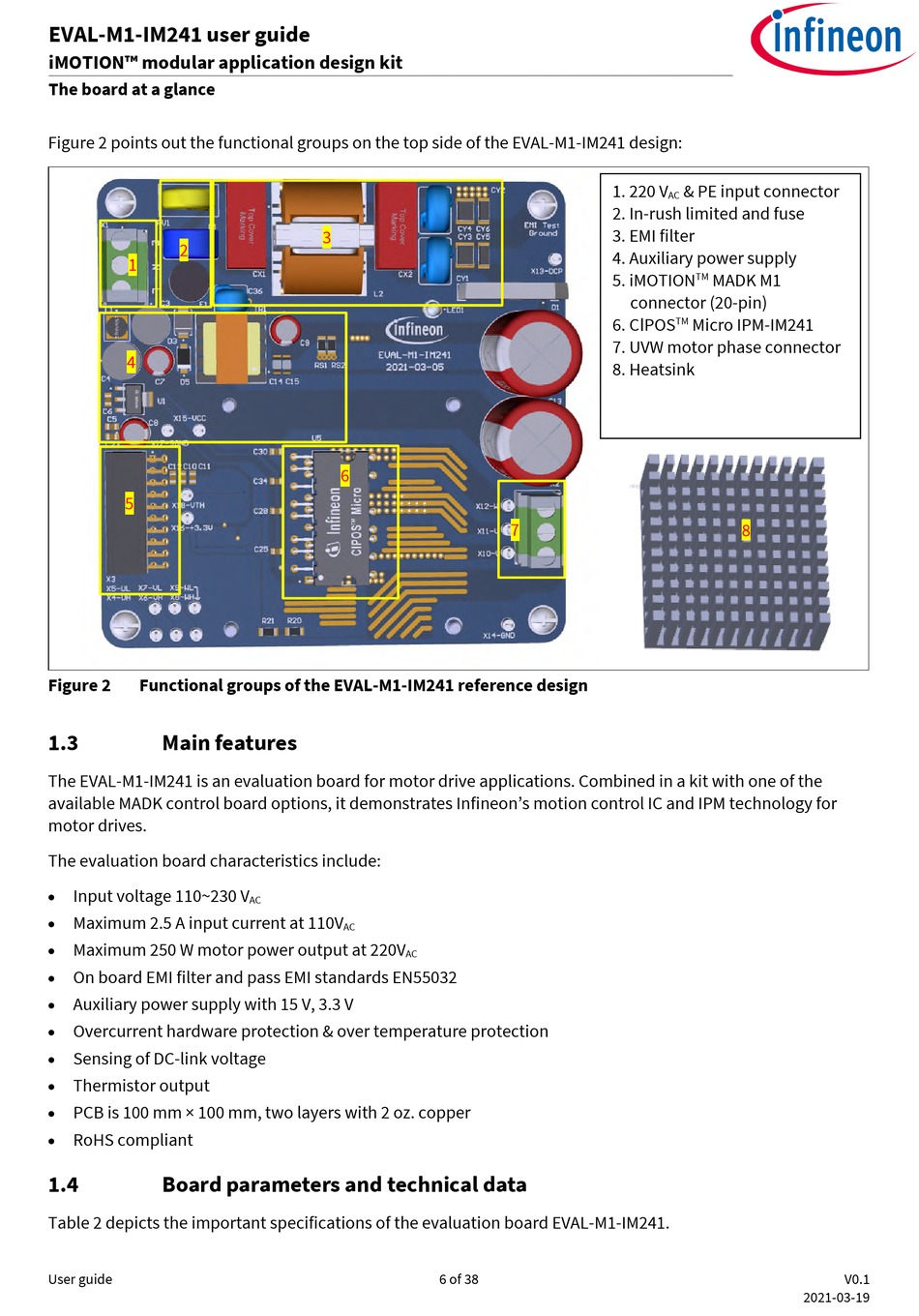

Figure 2 points out the functional groups on the top side of the EVAL-M1-IM241 design:
2
1
4
5
Figure 2 Functional groups of the EVAL-M1-IM241 reference design
1.3

Main features

The EVAL-M1-IM241 is an evaluation board for motor drive applications. Combined in a kit with one of the
available MADK control board options, it demonstrates Infineon's motion control IC and IPM technology for
motor drives.
The evaluation board characteristics include:
Input voltage 110~230 V

Maximum 2.5 A input current at 110V

Maximum 250 W motor power output at 220V

On board EMI filter and pass EMI standards EN55032

Auxiliary power supply with 15 V, 3.3 V

Overcurrent hardware protection & over temperature protection

Sensing of DC-link voltage

Thermistor output

PCB is 100 mm × 100 mm, two layers with 2 oz. copper

RoHS compliant

1.4

Board parameters and technical data

Table 2 depicts the important specifications of the evaluation board EVAL-M1-IM241.
User guide
3
6
AC
AC
AC
1. 220 V
2. In-rush limited and fuse
3. EMI filter
4. Auxiliary power supply
5. iMOTION
6. CIPOS
7. UVW motor phase connector
8. Heatsink
7
6 of 38
& PE input connector
AC
MADK M1
TM
connector (20-pin)
Micro IPM-IM241
TM
8
2021-03-19
V0.1
