EVAL-M1-IM241 user guide
iMOTION™ modular application design kit
System and functional description

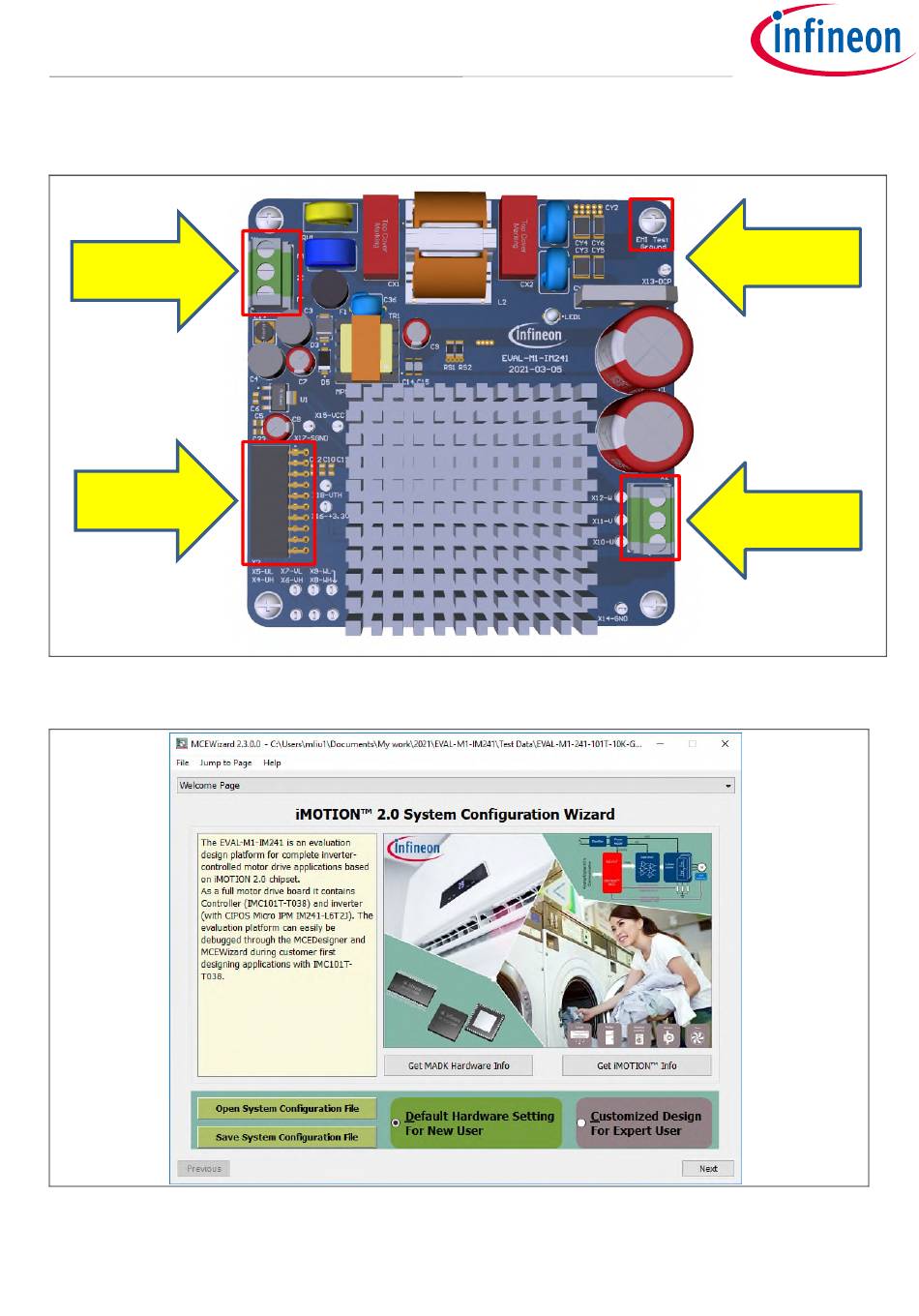

Figure 3 shows the basic system connection using EVAL-M1-IM241 to run a 400 W GK6040-6AC31-WEZ1 motor
with MCEDesigner.
AC input
Control board
Figure 3 System connection example
MCEWizard welcome page
Figure 4
User guide 10 of 38
EMI test ground
UVW phase
output
V0.1
2021-03-19
