EVAL-M1-IM241 user guide
iMOTION™ modular application design kit
System and functional description

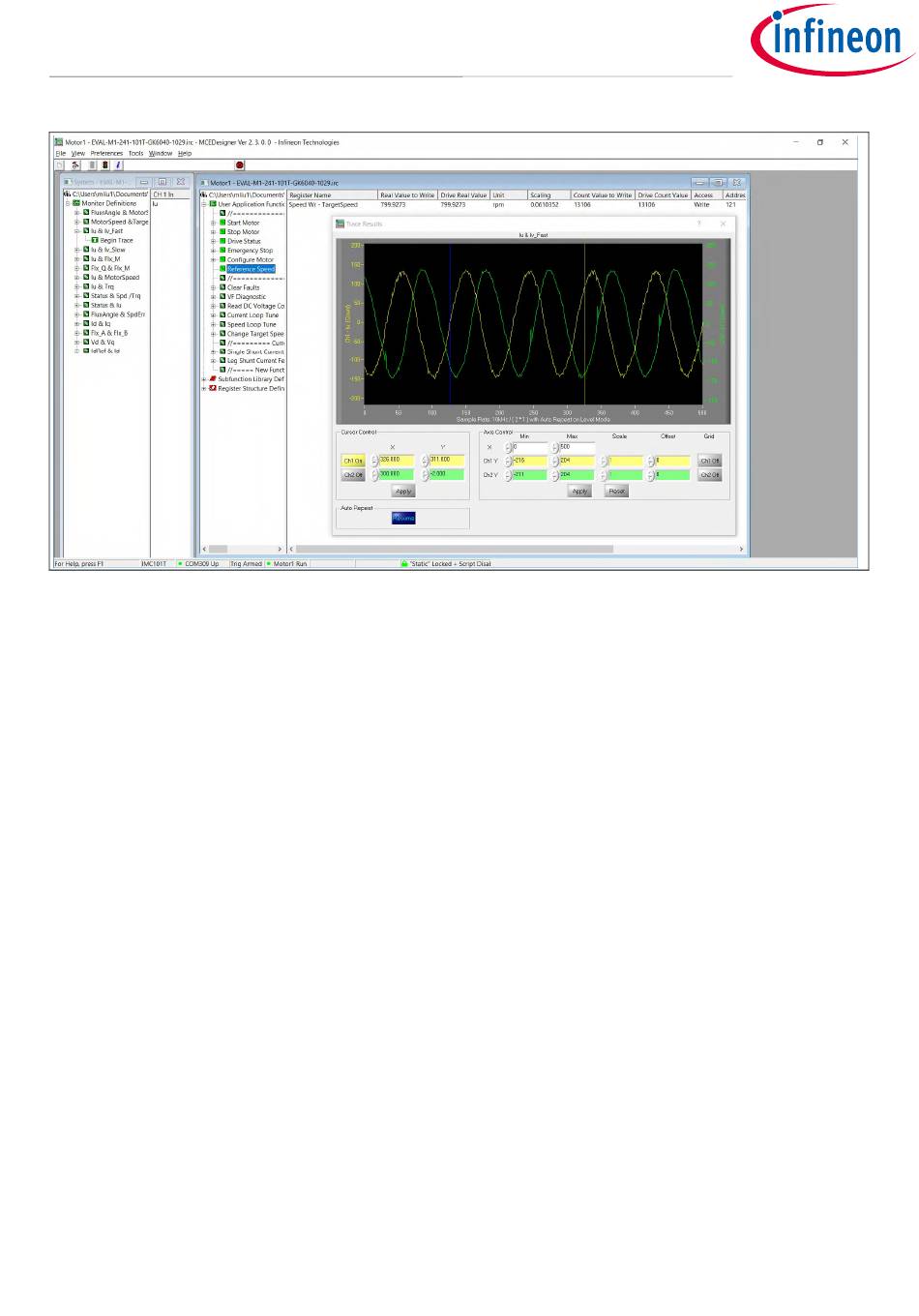

Figure 5 MCEDesigner user interface
Here are the steps needed to run the motor:
1. Connect EVAL-M1-101T control board to EVAL-M1-IM241, and connect PC-USB connector to EVAL-M1-101T.
2. Connect 220 V AC power supply and UVW outputs to the motor.
3. Use MCEWizard to enter the target motor's system and operating parameters, as well as evaluation board's
hardware parameters, which will then be used to calculate the digital parameter set of the controller
representing the complete motor drive system.
4. After system and operating parameters are set, go to the "Verify & Save Page" and click on "Calculate
Parameters" button. If no errors are reported, then save the drive parameter set into your project directory
by clicking "Export to MCEDesigner file (.txt)" (Figure 6); if an error is detected, double-click on the error
message (highlighted in RED) and adjust the related parameter. The saved drive system parameter file will be
later used by the MCEDesigner in step 9.
Note: (Please refer to MCEWizard_V2.3.0.0 User Guide.pdf for more details, which is in MCE Wizard's
install path)
