Video Module; Figure 105. Video Recorder Module Architecture - ST STM32CubeF4 User Manual

Demonstration functional description (STM32F412GDISCO)
10.1.3

Video module

Overview
The video player module provides a video solution based on the STM32F4xxx and the
STemWin movie APIs. It supports the AVI format.
Features
•
Video Format: AVI
•
Performance: frame rate up to 13 fps
•
Video files stored in SD Card
Architecture
Figure 105
with the external components.
104/111

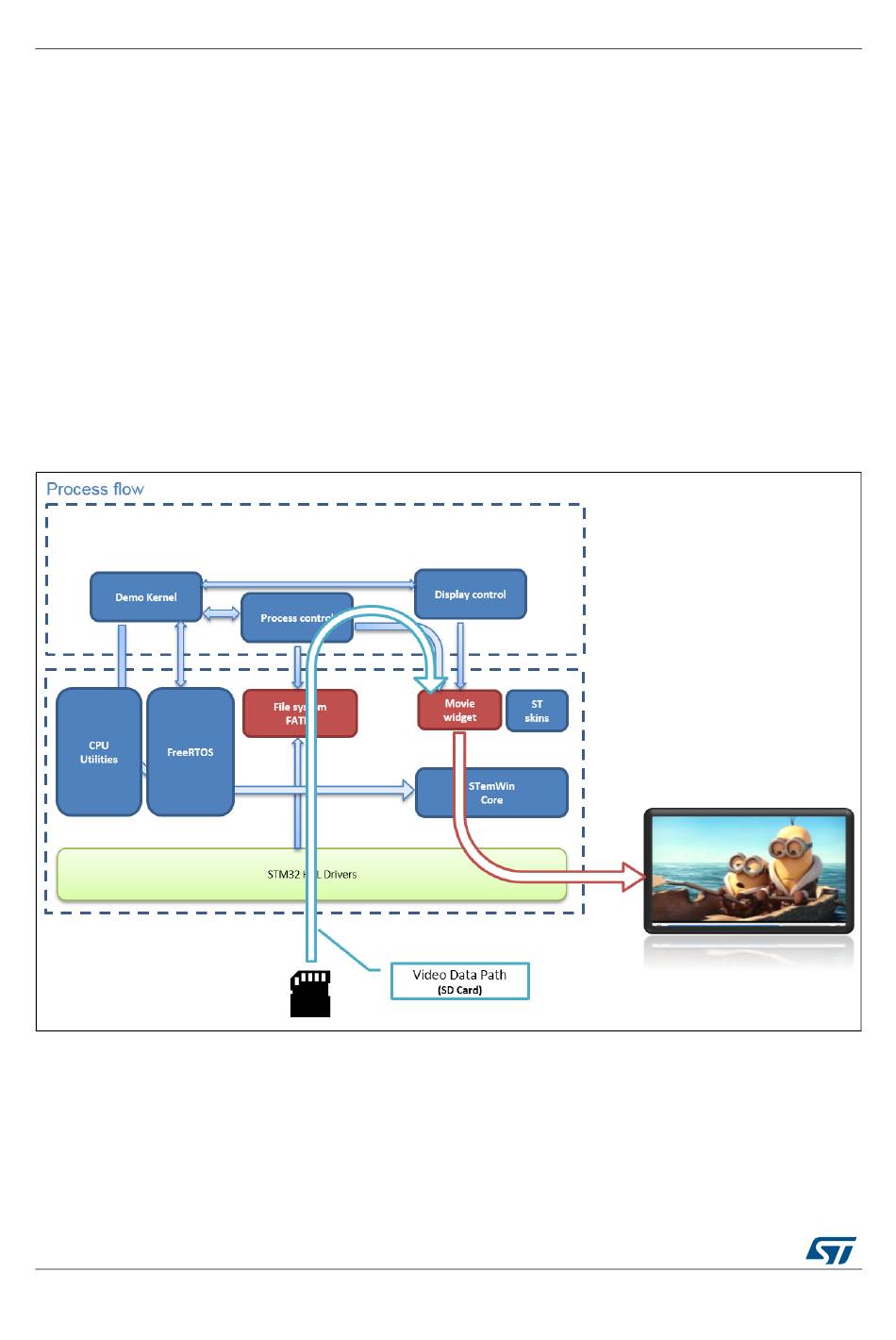

shows the different video player modules, and their connections and interactions

Figure 105. Video recorder module architecture
