Demonstration functional description (STM32F479I-EVAL and STM32F469I-DISCO)
Features
•
Video Format: STemWin emf Video Format (Motion-Jpeg)
•
Performance: MCU Load < 70% / Rate: up to 15 fps
•
Video files stored in USB Disk flash (USB High Speed)
•
Use of the 2 LCD layers (Playback control/ Video display)
•
64 Kbytes of RAM required for JPEG decoding
Architecture and performance
Figure 72
the external components, while
82/111
shows the different audio player parts and their connections and interactions with

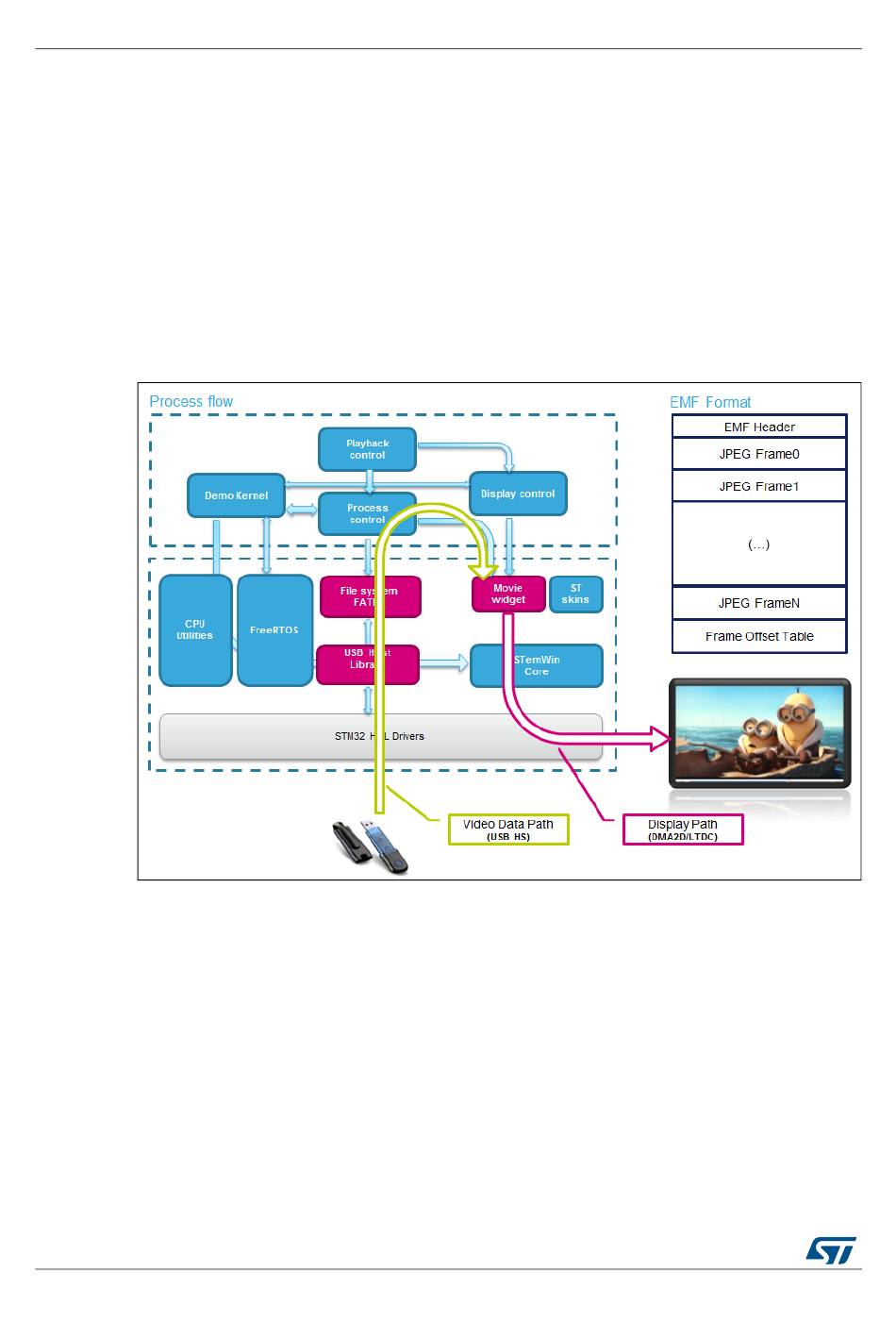

Figure 72. Video player module architecture

DocID026161 Rev 4
Figure 73 details the mechanisms.
