Fits: 2015-Current
2017-Current
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/left Side Step
1
Passenger/right Side Step
6
Sidebar Brackets (use for left or right)
18
8mm Plastic Washers
12
8mm x 25mm Combination Bolts
Passenger/right side
Bracket layout
Front
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
Page 1 of 4
Part No. A4004S/B
Ford F150 Super Crew Cab
Ford F250/350/450/550 Supercrew Cab
Part Description
(6) Left or Right
Mounting Brackets
Driver/left Side Step illustrated

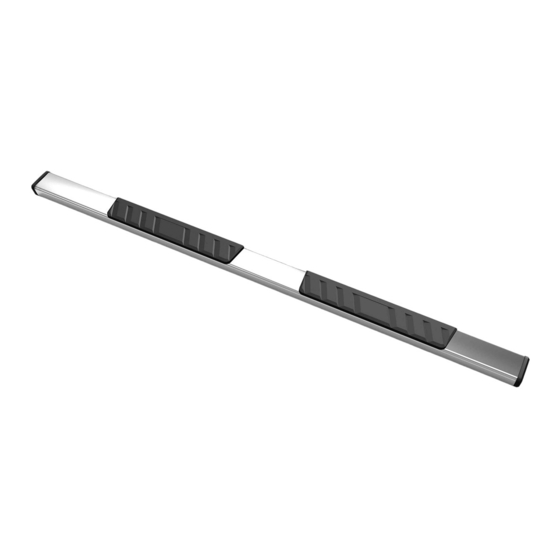

4" Side Bar
PARTS LIST:
Qty
18
8mm x 24mm OD x 2mm Washers
18
8-1.25mm Nylon Lock Nuts
12
Retainer Clips
6
Plastic Bracket Covers
(18) 8mm Plastic Washers
(6) Plastic Bracket Covers
(12) Retainer Clips
for Covers
www.TrailFX.com
CUTTING NOT
60-180 min
REQUIRED
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/left side
Bracket layout
DRILLING NOT
REQUIRED
Rev 091619
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A4004S
Summary of Contents for TrailFX A4004S
- Page 1 4" Side Bar Part No. A4004S/B Fits: 2015-Current Ford F150 Super Crew Cab 2017-Current Ford F250/350/450/550 Supercrew Cab CUTTING NOT DRILLING NOT 60-180 min REQUIRED REQUIRED REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 1. Start the installation under the driver side of the vehicle. Locate the front factory running board mounting location along the inner side of the body, (Figure 1). IMPORTANT: Clean mounting studs with wire brush to remove paint and debris.
- Page 3 Driver/left Side Installation Pictured Front Front (2) 8mm x 25mm Combination Bolts (2) Retainer Clips (Fig 6) (Fig 5) Plastic Cover installation onto front bracket Complete Installation Page 3 of 4 Rev 091619...
- Page 4 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
