Fits:
2020 Gladiator
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left T4 Sidebar
1
Passenger/Right T4 Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1
Driver/Left Front Support Bracket
1
Passenger/Right Front Support Bracket
1
Driver/Left Center Support Bracket
1
Passenger/Right Center Support Bracket
Page 1 of 5
Part No. A4022S/B
Part Description

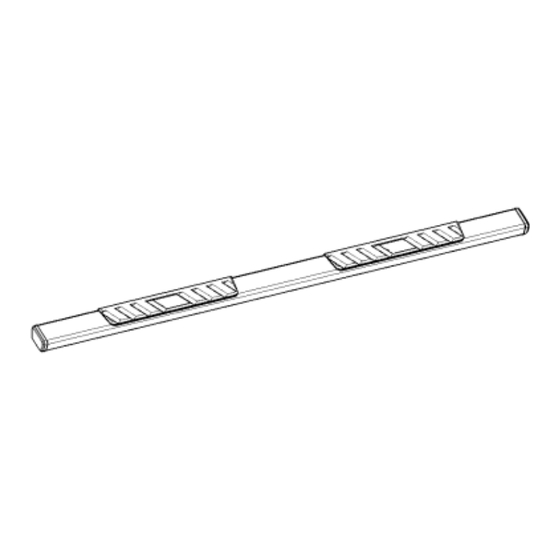

T4 Side Bar
PARTS LIST:
Qty
1
Driver/Left Rear Support Bracket
1
Passenger/Right Rear Support Bracket
6
10-1.5mm x 30mm Hex Bolts
12
10mm x 24mm x 2.2mm Flat Washers
6
10-1.5mm Nylon Lock Nuts
12
8-1.25mm Combo Bolts
6
8-1.25mm x 35mm Hex Bolts
6
8mm Lock Washers
6
8mm x 28mm x 3mm Flat Washers
12
6-1.0mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6-1.0mm Nylon Lock Nuts
60-180 min
CUTTING NOT
REQUIRED
Part Description
DRILLING NOT
REQUIRED
Advertisement
Related Manuals for TrailFX A4022S/B
Summary of Contents for TrailFX A4022S/B
- Page 1 T4 Side Bar Part No. A4022S/B Fits: 2020 Gladiator 60-180 min CUTTING NOT DRILLING NOT REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. REQUIRED REQUIRED READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN BODY MOUNT NUTS &...
- Page 2 Passenger/Right Passenger/Right Driver/Left Center Driver/Left Rear Passenger/Right Rear Center Support Bracket Support Bracket Driver/Left Front Support Support Bracket Support Bracket Front Support Bracket Bracket Passenger/Right Driver/Left Front Front Mounting Mounting Bracket Bracket Driver/left Driver/Left Passenger/Right Rear Sidebar Passenger/Right Center Driver/Left Center Rear Mounting Mounting Bracket...
- Page 3 Driver/Left Side Installation Pictured Front (Fig 1) Driver/Left mounting locations (Fig 2) Driver/Left side front mounting location with threaded insert Driver/Left Side Installation Pictured Driver/Left Front Driver/Left Center Mounting Bracket Mounting Bracket has a tab that has a tab that Driver/Left Rear faces backward faces forward...
- Page 4 (1) 10mm Hex Bolt (2) 10mm Flat Washers Front (1) 10mm Nylon Lock Nut (Fig 6) Attach Support Bracket to the rear face of the mounting bracket Driver/Left Side Installation Pictured Front The Center Support The Rear Support Bracket has a hole in Bracket has a notch the top.
-
Page 5: Product Care
Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
