Fits: 2009-Current Dodge Ram 1500 Crew Cab 5.5' Short Bed
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver Front Mounting Bracket
1
Passenger Front Mounting Bracket
2
Driver Center/Rear Mounting Brackets
2
Passenger Center/Rear Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right
Front Bracket
Driver/left Sidebar
illustrated
Front

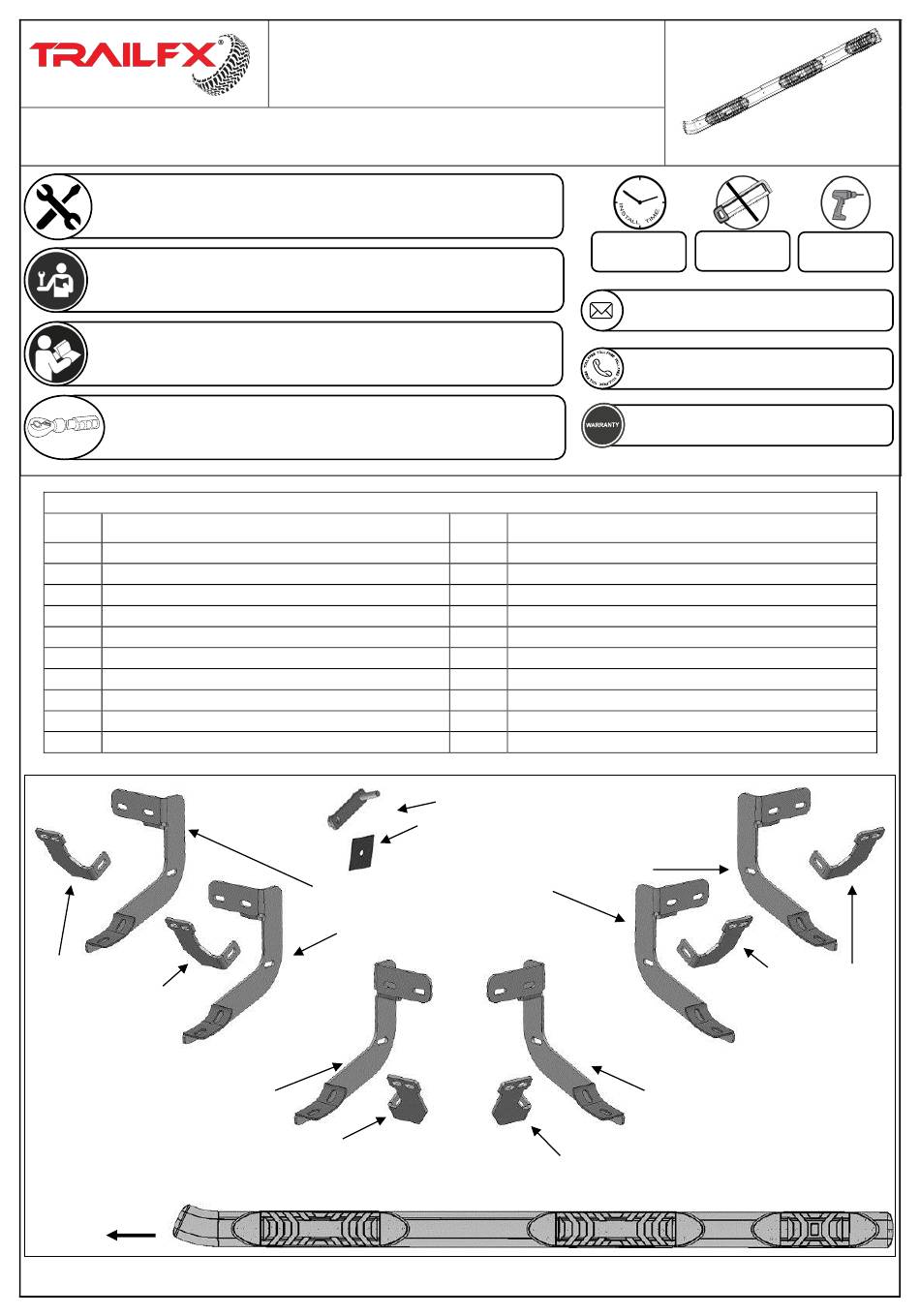

Page 1 of 7
5" Oval W2W Side Bar
Part No. A7060S/B
Part Description
(6) 8mm Bolt x 8mm Nut Plates
Passenger/Right Rear and
Center Mounting Brackets
Passenger/Right Front Support
Bracket (same as driver side
center and rear brackets)
PARTS LIST:
Qty
18
8mm-1.25 x 30 Hex Bolts
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front Support
Bracket (same as passenger
side center and rear brackets)
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Center and
Rear Support Brackets
Driver/Left Front
Mounting Bracket
www.TrailFX.com
Drilling
Required
Rev 031318
Advertisement
Table of Contents
Related Manuals for TrailFX A7060S
Summary of Contents for TrailFX A7060S
- Page 1 5" Oval W2W Side Bar Part No. A7060S/B Fits: 2009-Current Dodge Ram 1500 Crew Cab 5.5' Short Bed ASSISTANCE IS RECOMMENDED. Cutting Not Drilling 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE: DRILLING MAY BE REQUIRED. Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1). Front (Fig 1) 2009-mid 2015 Driver/Left front mounting location (No factory holes...
- Page 3 Select the driver side front Mounting Bracket, (Figure 6). Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Figure 7). Do not tighten at this time.
- Page 4 Next, select the driver side front Support Bracket. Attach the Bracket to the front facing side of the front Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers and (1) 8mm Nylon Lock Nut, (Figure 11). Rotate the Support Bracket to the back of the pinch weld.
- Page 5 IMPORTANT: 2009-2012 models without holes in pinch weld will require drilling 1/4” holes through pinch weld to attach driver side front support bracket. Do complete installation of sidebars first, level sidebar before drilling holes for support bracket. Front (Fig 16) Attach Driver/Left Support Bracket to back of Center Mounting Bracket Move to the rear location, (Figure 17).
- Page 6 (2) 8mm Combo Hex Bolts Rear (Fig 21) Driver/left rear Bracket assembly Properly level and adjust the Sidebar and fully tighten all hardware. 2009-12 models requiring drilling for driver side Support Brackets: Make sure the Sidebar is level to the vehicle. Adjust and tighten all mounting hardware.
- Page 7 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
