2019
Fits:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1

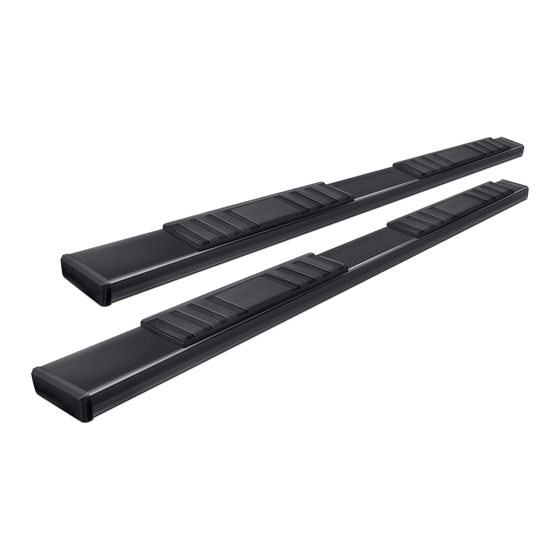

Driver/left side T4 Sidebar
1
Passenger/right side T4 Sidebar
6
6
215mm
OR
Front
8.5in
Page 1 of 4
Part No. A4016S/B
Dodge Ram 1500 Quad Cab
Part Description
Universal Brackets
Plastic Bracket Covers
(6) Left or Right Mounting Brackets
T4 Side Bar
PARTS LIST:
Qty
12
12
18
18
(6) Plastic Covers
60-180 min
CUTTING NOT
REQUIRED
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Plastic Clips for Covers
8-1.25mm x 25mm Combo Bolts
8mm x 24mm x 2mm Flat Washers
8-1.25mm Nylon Lock Nuts
Passenger/right
side T4 Sidebar
www.TrailFX.com
DRILLING NOT
REQUIRED
Rev 081518
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX T4
Summary of Contents for TrailFX T4
- Page 1 POWDER COATED BLACK – 3 YEARS BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND. PARTS LIST: Part Description Part Description Driver/left side T4 Sidebar Plastic Clips for Covers Passenger/right side T4 Sidebar 8-1.25mm x 25mm Combo Bolts Universal Brackets...
- Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. Start the installation under the passenger side of the vehicle. Locate the front (3) factory studs along the inner side of the body panel, (Figure 1).
- Page 3 Passenger/right Side Installation Pictured (2) Plastic Clips Front (Fig 5) Slide Plastic Cover over Bracket and towards the Bracket flange Front (2) 8mm Combo Bolts (Fig 6) Passenger/right Sidebar attached to Front Mounting Bracket at the front location (2) 8mm Combo Bolts...
- Page 4 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
