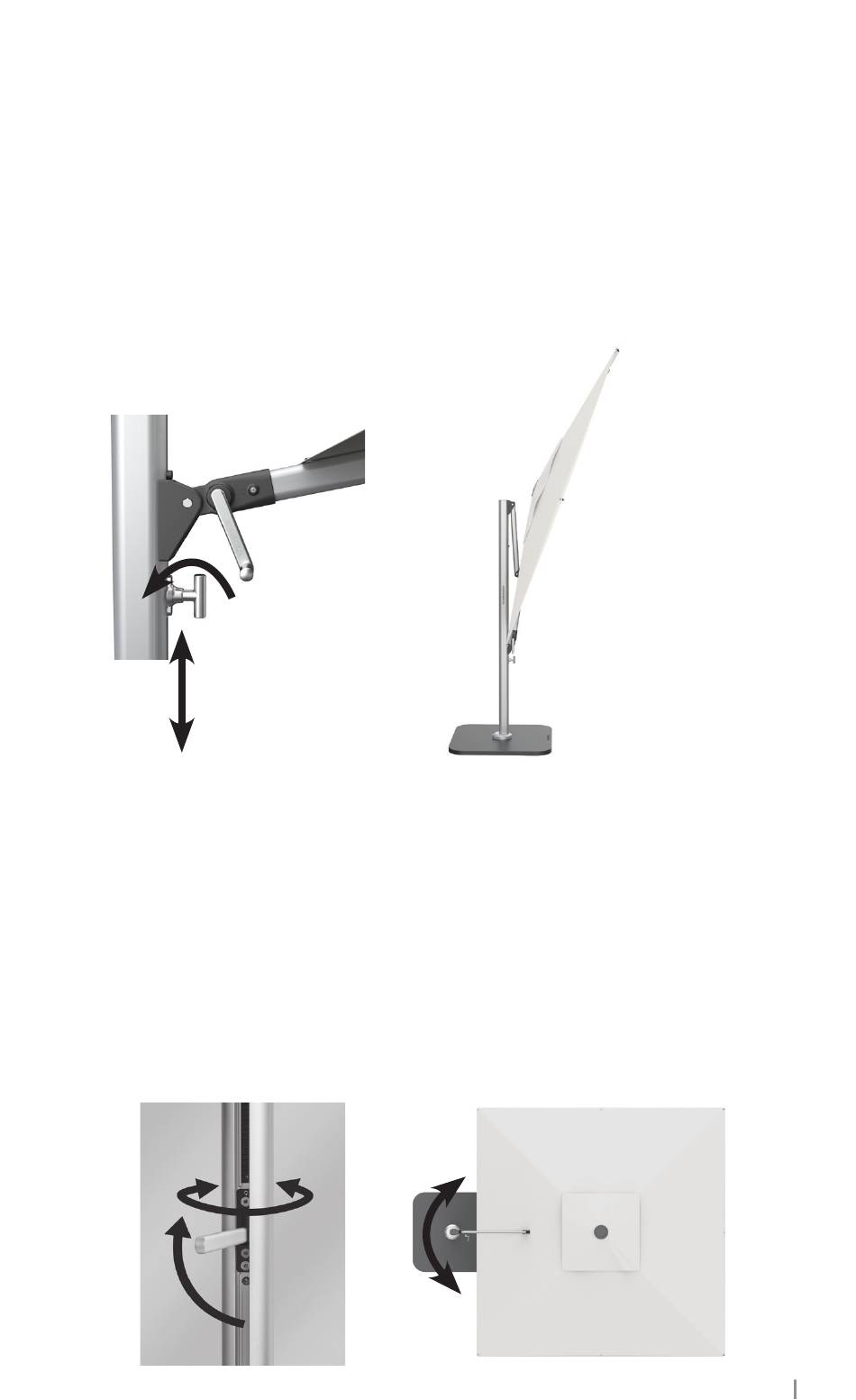

To Tilt Canopy
IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is
clear and free from any furniture or structure.
1. Stand under umbrella. Turn slider car counter-clockwise to a horizontal position.
Slider car is now ready for tilt position. Guide slider car up or down mast, until
desired tilt position is reached.
2. To lock into place, turn the slider car clockwise to a vertical position. Slider car
is now locked in the teeth belt.
°
To Rotate 360
IMPORTANT: PRIOR TO USING ROTATION FEATURE.
To avoid personal injury or damage to the umbrella, make sure the umbrella is in a
horizontal position and the area behind you is clear and free from any furniture or
structure.
1. There are (8) 45° locking rotating positions. Raise the turning handle above 90°
and rotate mast to one of the 8 preset positions.
2. Lower handle to lock into place.
8
