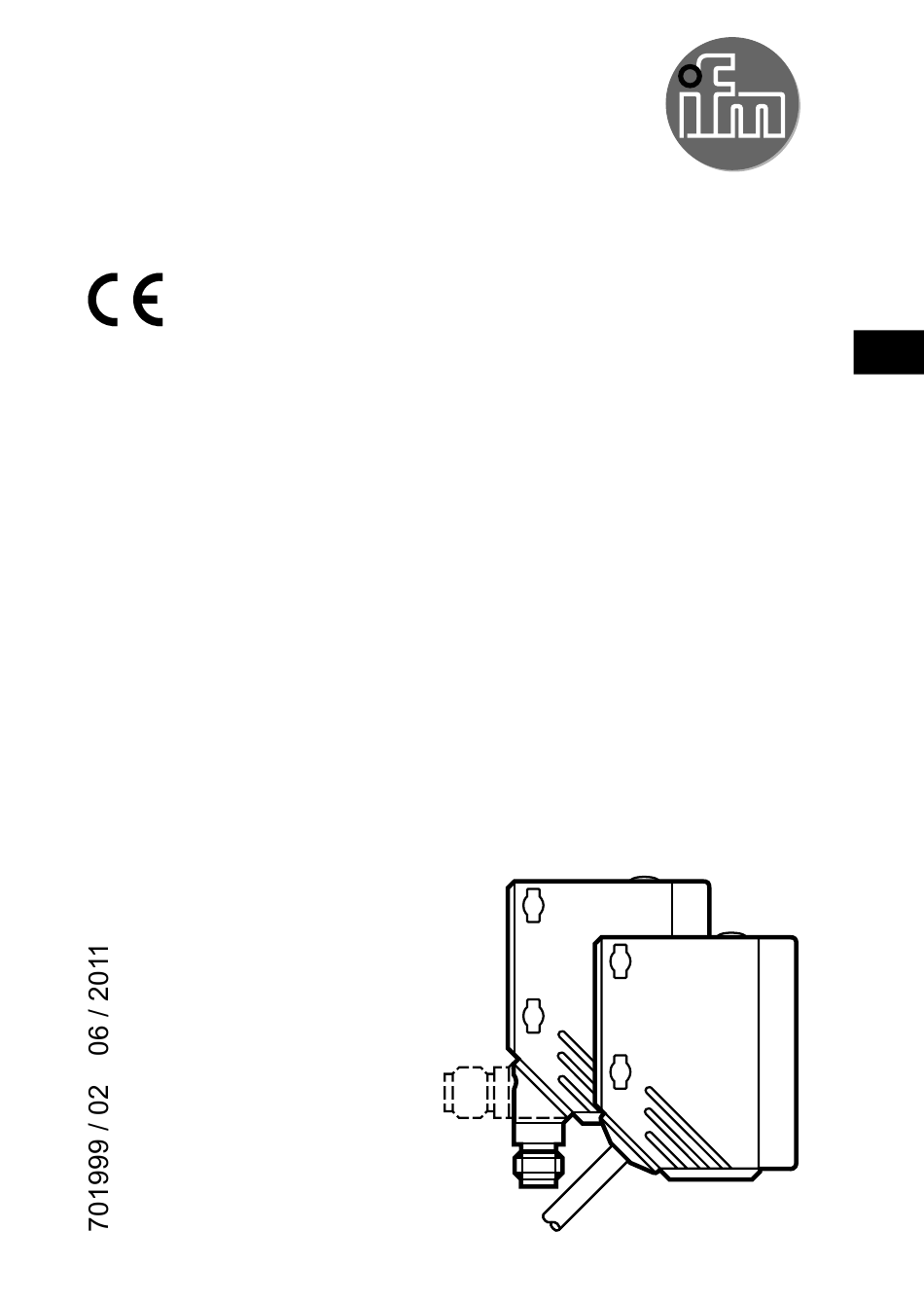

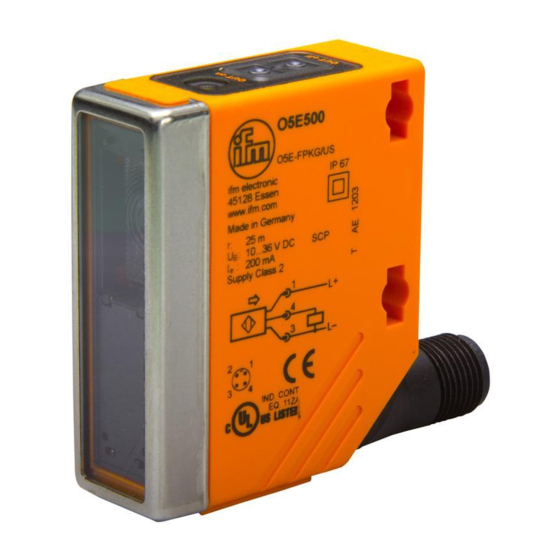

- Page 1 Operating instructions Through-beam sensor O5E5xx / O5S5xx...
- Page 2 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Functions and features The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal.
- Page 3 4 Operating and display elements 1: LED yellow 2: [OUT on] button 3: [OUT off] button receiver 5 Electrical connection The unit must be connected by a qualified electrician. ► The national and international regulations for the installation of electri- cal equipment must be adhered to.
- Page 4 6 Settings 6.1 Sensitivity setting The sensor is to switch when the object is detected ► Position the object. receiver transmitter ► Press [OUT on] for 2 s. > The sensitivity is set to the object. The yellow LED flashes. ►...
- Page 5 ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. Faulty sensors must only be repaired by the manufacturer. Technical data and further information at www.ifm.com → Select your country → Data sheet direct:...
