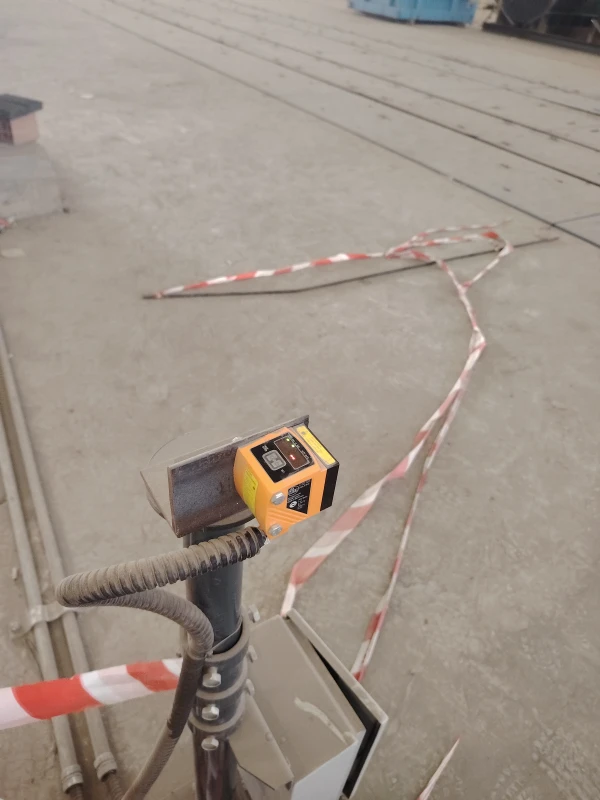

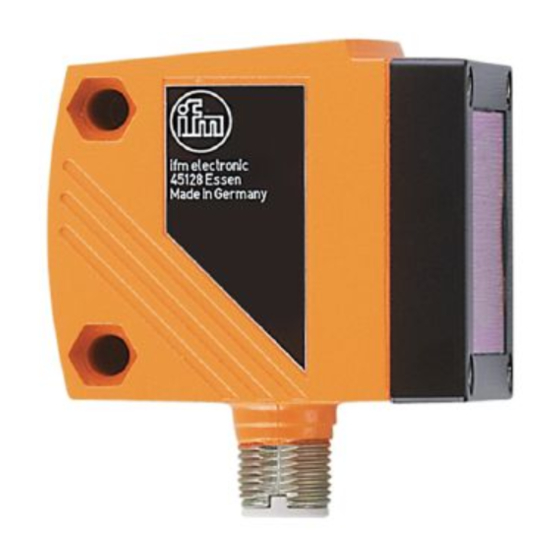

Lazer ifm önünde 7metre mesafeden 500derecede sıcaklıkta malzeme geçiyor. Verim alamıyoruz s
1 comments:
Mr. Anderson
February 10, 2025
The IFM O1D120 laser sensor may have low efficiency when detecting materials at 500 degrees Celsius from a distance of 7 meters due to the following reasons:
1. Excessive Infrared Radiation: At 500°C, the material emits significant infrared radiation, which may interfere with the sensor's optical detection capabilities.
2. Reflectivity Issues: The sensor's detection efficiency depends on the reflectivity of the target surface. High-temperature materials may have altered reflectivity, reducing the sensor’s ability to measure accurately.
3. Too Much or Too Little Light: The sensor may struggle with too much or too little reflected light, resulting in incorrect readings or "NoData" errors.
4. Measurement Range Limitations: While the sensor operates within 0.2 to 10 meters, environmental conditions such as high heat may impact its performance at longer distances.
5. Background Suppression Challenges: At 7 meters, the minimum required background distance is 200 mm, and heat or ambient light variations could affect accuracy.
These factors can lead to unreliable measurements or sensor malfunctions in high-temperature environments.
Content 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 1�2 Warning signs used ���������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������6 3�1 Applications ���������������������������������������������������������������������������������������������������6 4 Functions �������������������������������������������������������������������������������������������������������������6 4�1 Output function hysteresis �����������������������������������������������������������������������������6 4�2 Output function window ���������������������������������������������������������������������������������6 4�3 Analogue output function �������������������������������������������������������������������������������6 4�4 Switch off the laser ���������������������������������������������������������������������������������������6 5 Installation������������������������������������������������������������������������������������������������������������7 5�1 Installation conditions ������������������������������������������������������������������������������������7...
Page 3
10�2�2 Setting of the display ������������������������������������������������������������������������16 10�2�3 Configuration of OUT1 ����������������������������������������������������������������������16 10�2�4 Hysteresis function ���������������������������������������������������������������������������17 10�2�5 Setting of the switch point for hysteresis function OUT1 ������������������18 10�2�6 Window function �������������������������������������������������������������������������������18 10�2�7 Setting of the switch points for window function OUT1 ��������������������19 10�2�8 Configuration of OUT1 ����������������������������������������������������������������������20 10�2�9 Setting of the switch point for hysteresis function OUT2 ������������������20 10�2�10 Setting of the switch points for window function OUT2 ������������������20...
1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference� Information Supplementary note� 1.2 Warning signs used WARNING Warning of serious personal injury� Death or serious irreversible injuries may result�...
Page 5
WARNING Visible laser light; laser protection class 2� Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure� Damage to the retina is possible� ► Do not stare into the laser beam! ► Apply the enclosed labels (laser warning) in the immediate vicinity of the unit� ►...
• The measured value is shown in a 10-segment display� • According to the set output functions 2 output signals can be generated� • O1D100 / O1D120: Certification 21 CFR PART 1040 The distance between the sensor and the background must be limited to max�...
5 Installation 5.1 Installation conditions ► Install the unit so that the object to be detected is within a measuring range of 0�2���10 m� The unambiguity range of the sensor is fixed to 19�2 m� Objects within a range > 10…19�2 m are suppressed� Reflecting objects in the direct beam path of the sensor - also in the range >...
AN_i_1707_G Original Scale Drawing (MTD) ► Ensure voltage supply according to EN 50178, SELV, PELV� O1D100 / O1D120: cULus, Supply Class 2 ► Disconnect power� ► Connect the unit as follows: O1D100 / O1D120 PNP...
7 Operating and display elements 1: 4 x LED green Lighting LED = power and set display unit (mm, m, inch) 2: 4 x LED yellow Indication of the switching status; lights, if the corresponding (two not output is switched� connected) 3: 4-digit Indication of the measured distance, the parameters and...
8.2 Explanation of the menu For the factory settings please refer to the end of these instructions (→ 14 Factory setting)� Configuration for output 1 4 switching functions can be selected: [Hno], [Hnc], [Fno], [Fnc] → 10.2.3 Configuration of OUT1 Switch point for hysteresis function OUT1 Limit value at which the output with selected hysteresis function changes its switching state (object nearer/farther than distance set)�...
Page 12
Analogue end point Measured value at which 20 mA / 10 V are provided� [AEP] is only active if [OU2] = [I] or [U]� → 10.2.11 Scaling of the measuring range (analogue output) Teach mode Selection "sampling rate" or "repeatability" →...
9 Operating modes 9.1 Run mode The run mode is the normal operating mode� After power on the unit is in the Run mode� It carries out its monitoring function and generates output signals according to the set parameters� The display indicates the current distance, the yellow LEDs signal the switching status of the outputs�...
10 Parameter setting During parameter setting the unit remains internally in the operating mode� It continues its monitoring function with the existing parameters until the change has been finished� 10.1 Parameter setting in general 10.1.1 Setting of the parameter value Select the display unit [Uni] before you define the values for the parameters�...
10.1.2 Change from menu level 1 to menu level 2 ► Press [MODE/ENTER] several times until [EF] is displayed. MODE ENTER ► Press [SET] briefly� > The first parameter of the sub-menu is displayed (here: [dr1])� MODE ENTER 10.1.3 Electronic lock The unit can be locked electronically to prevent unintentional settings�...
10.2 Configuration of the basic settings 10.2.1 Selection of the display unit Set [Uni] before the values for the parameters [SPx], [nSPx], [FSPx], [ASP], [AEP] are defined� In case of subsequent changes of the display unit rounding errors during internal conversion to other units may falsify the set values� ►...
10.2.4 Hysteresis function The hysteresis keeps the switching state of the output stable if the measured value varies about the sensing range� In either case set and reset points are symmetrically arranged around the selected switch point [SPx]� The hysteresis is the distance between set and reset points;...
Switching status of the outputs Output function Object distance (D) Output status [Hno] D < [SPx] Closed D > [SPx] Open [Hnc] D < [SPx] Open D > [SPx] Closed Example of output function [Hno] Sampling rate 50 Hz, distance to the object 1200 mm, grey value (18 % remission): Hysteresis = ±...
Switches when the object is detected [nSPx] [FSPx] [Fno] [nSPx] = switch point "near"; [FSPx] = switch point "far"; FE = window If the measured value is between the switch point "near" [nSPx] and the switch point "far" [FSPx], the output is closed (when [OUx] = [Fno])� Switching status of the outputs Output function Object distance (D)
10.2.8 Configuration of OUT1 ► Select [OU2]� ► Set the switching functions or analogue signals: • [Hno] = hysteresis function / normally open • [Hnc] = hysteresis function / normally closed • [Fno] = window function / normally open • [Fnc] = window function / normally closed •...
Page 21
Current output 4 ... 20 mA Factory setting Measuring range scaled I [mA] I [mA] 0(ASP) 10000(AEP) MEW = final value of the measuring range In the set measuring range the output signal is between 4 and 20 mA� Faults are also displayed: Too much light or object too near: 3�5 mA for a rising edge ([ASP] <...
10.3 Teach mode 10.3.1 Setting of the sampling rate The sampling rate indicates the time after which a new result of measurement is provided and the outputs are updated� The switching frequency is typ� approx� 1/3 of the sampling rate� ►...
Page 23
Values for sampling rate 50 Hz, extraneous light of 40...100 klx* Repeatability Accuracy Distance white grey white grey in [mm] 90 % remission 18 % remission 90 % remission 18 % remission 200���1000 ± 16�5 mm ± 16�5 mm ± 26�5 mm ±...
10.4 Extended functions 10.4.1 Setting of the time delay for switching outputs ► Select [EF]� ► Press [SET] to change to the menu [EF]� ► Select parameters with [MODE/ENTER]: [dSx] = switch-on delay; [drx] = switch-off delay ► Set the parameter value with [SET]: Setting range [s]: 0 / 0�1 ���...
In addition communication is possible via a point-to-point connection with a USB adapter cable� You will find more detailed information about IO-Link at www�ifm�com� 11.2 Device-specific information You will find the IODDs necessary for the configuration of the IO-Link device and detailed information about sensor values, diagnostic information and parameters in the overview table at www�ifm�com�...
Lifetime of a laser diode: 50000 hours 12.1 Fault indication Possible Current output / Switching output cause voltage output [ASP] < [ASP] > [Hno] [Hnc] [Fno] [Fnc] [AEP] [AEP] too much light, 3,5 mA / 20,5 mA / [++] ON OFF OFF ON NoData e�g�...
200���9999 FSP1 200���9999 1200 Hno, Hnc, Fno, Fnc, I, U 200���9999 2000 nSP2 200���9999 1800 FSP2 200���9999 2200 0���9999 0���9999 9999 rATE 1���50 50 Hz 0���0�1���5 0���0�1���5 0���0�1���5 0���0�1���5 0���0�1���0�2���0�5���1���2���5 d1���3; rd1���3; OFF Technical data and further information at www�ifm�com...
