Operating instructions
Diffuse reflection sensor with
background suppression
UK
O5H5xA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O5H5xA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM O5H5xA Series

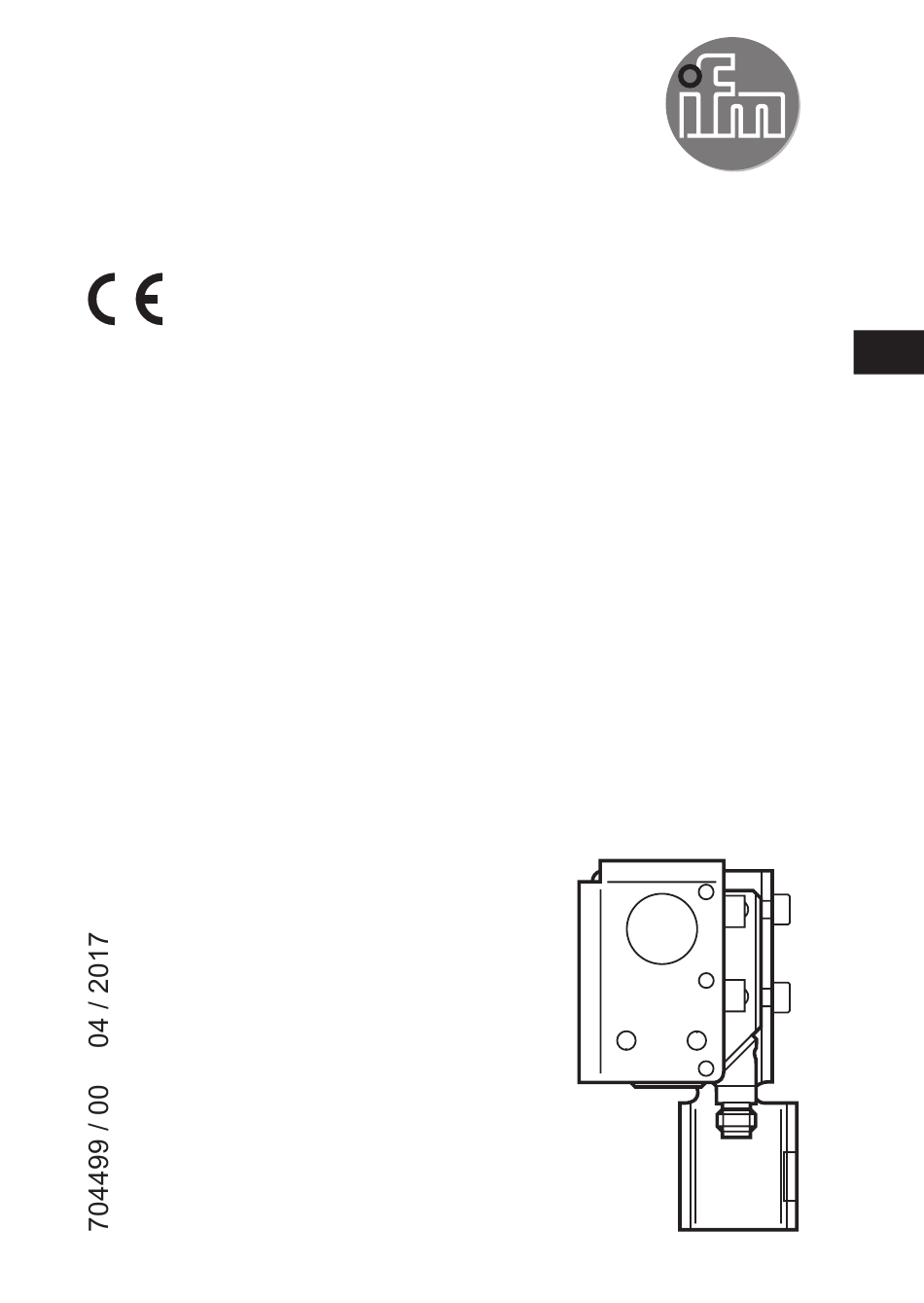

  • Page 1 Operating instructions Diffuse reflection sensor with background suppression O5H5xA...
  • Page 2: Symbols Used

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Safety instructions • Please read this document prior to set-up of the unit. Ensure that the product is suitable for your application without any restrictions.s •...
  • Page 3: Electrical Connection

    4 Installation ► Align the diffuse reflection sensor to the object to be detected. ► Secure it to a bracket. Note: The objects to be detected are to move transver- sally to the lens of the sensor. ► In case of other directions of movement it should be tested before whether safe switching is guaranteed.
  • Page 4 ► Disconnect power. ► Connect the unit as follows: DC PNP pin 1 = L+ (pin 2 = not connected) pin 3 = L- pin 4 = load 7 Settings 7.1 The sensor is to switch when the object is detected ►...
  • Page 5 9 Maintenance, repair and disposal ► Keep the front pane of the sensor free from soiling. ► For cleaning do not use any solvents or cleaning agents which could damage the plastic material. Technical data and further information at www.ifm.com...
