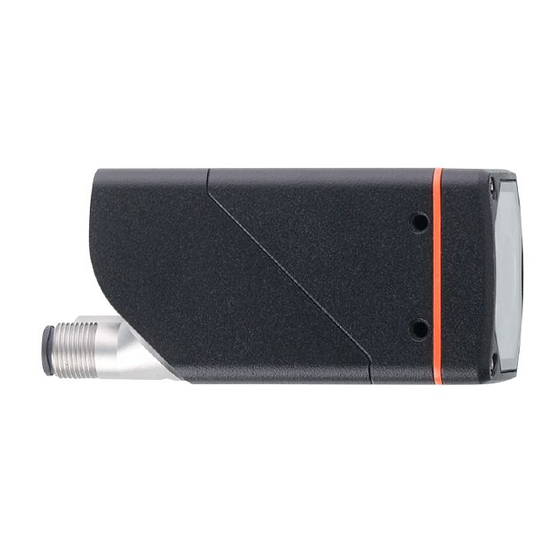

- Page 1 Operating instructions Object recognition sensor O2D50x O2D52x Firmware: 1.22.xxxx...
-
Page 2: Table Of Contents
O2D50x O2D52x Object recognition sensor Contents Preliminary note ............. Symbols used . -
Page 3: Preliminary Note
Device of protection class III. Only for operation in PELV circuits (Ò chapter Electrical connection). 1.4 Legal and copyright information © All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh. - Page 4 The price of the ifm products has then to be paid for the respective device itself (hardware) and not for the firmware. For the latest information on the license agreement for your product please visit www.ifm.com...
-
Page 5: Safety Instructions
Object recognition sensor O2D50x O2D52x 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 6: O2D504
O2D50x O2D52x Object recognition sensor 2.1.2 O2D504 The colour of the illumination LEDs can be switched between red (625 nm), green (525 nm), blue (453 nm) and white. The colour selection applies to all LEDs at the same time. The lighting is highly focused. The device complies with risk group 2 according to EN 62471:2008. -
Page 7: Intended Use
Object recognition sensor O2D50x O2D52x 3 Intended use The unit is used for quality inspection of objects. It checks and monitors contours, object properties, shape deviations, colour changes and surfaces. In addition, the unit is suited for sorting and counting tasks. 3.1 Application area The device safety is rated for use under the following operating conditions according to EN IEC 61010-2-201:... -
Page 8: Function
• Data processing with function blocks and logical links in the unit • Integrated ifm mass storage device saves current configuration for easy device replacement. Optional storage of error images 4.2 Web front end The unit has a web front end via which the following information can be retrieved: •... -
Page 9: Triggering Image Captures
• Internal triggering – Images are captured continuously with a fixed frame rate. – The settings are made via the ifm Vision Assistant software. • External triggering – Image capture activated by external trigger source (switching signal of a connected sensor) via the trigger input. -
Page 10: Switching Outputs
Switching outputs OUT1...OUT5 are configurable. If an external illumination is used, OUT5 serves as a trigger output. The configuration can be done individually for each application using the ifm Vision Assistant software. The table below shows the standard configuration. Signal... -
Page 11: Pulse-Controlled Application Switching
PNP output logic: In case of a high signal (1), voltage is applied. NPN output logic: In case of a low signal (0), voltage is applied. To change the factory setting: Ò software manual at www.ifm.com. u For application switching the monitoring time t... -
Page 12: Internal Illumination
Either switching input IN2 or the trigger input of the unit can be used as pulse input. 4.6 Internal illumination The unit has 4 internal illumination LEDs. The internal illumination is set via the ifm Vision Assistant software. The 4 illumination LEDs can be activated separately. 4 x LED Fig. 5: Illumination LEDs... -
Page 13: Mounting
2.1 Nm. u Align the unit to the centre of the object’s optical axis. Information about available accessories at www.ifm.com 5.1 Installation instructions Storage at high humidity can lead to fogging of the front glass after switch-on, which can affect the functioning of the unit. -
Page 14: Mounting With Clamp
O2D50x O2D52x Object recognition sensor 5.2 Mounting with clamp Fig. 7: Installation using the mounting set E2D500 M4 screws threaded M4 holes (depth 7 mm) bracket clamp u Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. -
Page 15: Mounting With Dome Illumination
Object recognition sensor O2D50x O2D52x 5.3 Mounting with dome illumination Fig. 8: Installation using the mounting set E2D501 M4 screws threaded M4 holes (depth 7 mm) bracket clamp dome illumination u Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. -
Page 16: Electrical Connection
O2D50x O2D52x Object recognition sensor 6 Electrical connection ATTENTION The device must be connected by a qualified electrician. Device of protection class III (PC III). The electrical supply must only be made via PELV circuits. Electric supply must correspond to IEC 61010-1, chapter 9.4 - Limited Energy: The overcurrent protection device must switch off a current of 6.6 A in 120 s. -
Page 17: Wiring
Object recognition sensor O2D50x O2D52x 6.1 Wiring ① Ethernet (parameter setting interface, process interface) M12 socket, D-coded, 4 poles 1: TD+ 2: RD+ 3: TD- 4: RD- S: screen ② Ethernet/IP (power supply and process outputs) M12 connector, A-coded, 8 poles 8 1: 24 V DC 2: trigger input 3: GND... -
Page 18: External Illumination
O2D50x O2D52x Object recognition sensor 6.3 External illumination An external illumination can be connected to facilitate object recognition. Connect the external illumination to switching output OUT5 of the unit. The sensor triggers the illumination independently or passes the trigger signal through to the external illumination unit. Since the sensors with infrared light have a band-pass filter, only external illuminations with a wave length range between 780 nm...880 nm can be used. -
Page 19: Installation
Object recognition sensor O2D50x O2D52x 7 Installation To be able to make full use of the unit’s functions, the ifm Vision Assistant software is required for parameter setting. u Go to the download section at Link and download the ifm Vision Assistant software onto your computer. -
Page 20: Operating And Display Elements
2 s Configuration successfully saved flashes at 8 Hz flashes at 8 Hz Active mode for configuration transfer from ifm storage device via multi-function key (Ò Replace the unit / 25) flashes at 8 Hz Error: lock button is active... -
Page 21: Set-Up
After approx. 30 seconds, the unit is in the evaluation mode where saved applications are executed. The indicators signal the current operating status. On delivery, no applications are set up and the unit does not perform any function. u Configure the unit via the ifm Vision Assistant software. -
Page 22: Parameter Setting
The ifm Vision Assistant software and the software manual are available on the Internet: www.ifm.com. 10.1 Focus the optics using the multi-function key The multi-function key is inactive until at least one application has been created via the ifm Vision Assistant software. u Press the multi-function key for 3 seconds. -
Page 23: Operation
Object recognition sensor O2D50x O2D52x 11 Operation The following recommendations increase the recognition rate: u Place the object (3) in the field of view (2). u Remove other objects from the field of view. u For objects with shiny surface: • slightly tilt the device (1) or •... -
Page 24: Troubleshooting
O2D50x O2D52x Object recognition sensor 12 Troubleshooting If the device behaves unexpectedly or incorrectly: u Download and install the latest firmware and ifm Vision Assistant versions. Download at http:// documentation.ifm.com. If the problems persist: u Contact the ifm support. Contact at www.ifm.com. -
Page 25: Maintenance, Repair And Disposal
The integrated ifm storage device has a data retention time of 3 years at a maximum storage temperature of 55 °C. If this time is exceeded, data loss is possible. During operation, the stored data is refreshed periodically.
