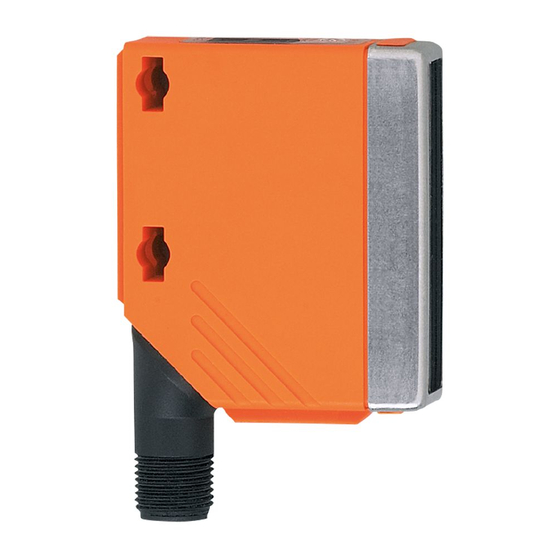

- Page 1 Operating instructions Diffuse reflection sensor with background suppression O5H5xx...
- Page 2 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Functions and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal.
- Page 3 4 Operating and display elements 1: LED 2: [OUT on] button 3: [OUT off] button 5 Electrical connection The unit must be connected by a qualified electrician. ► The national and international regulations for the installation of electrical equipment must be adhered to. ►...
- Page 4 6 Settings 6.1 Sensitivity setting The sensor is to switch when the object is detected ► Position the object. ► Press [OUT on] for 2 s. > The sensitivity is set to the object. The LED flashes. ► Remove the object. ►...
- Page 5 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic parts. ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. Faulty sensors must only be repaired by the manufacturer. Technical data and further information at www.ifm.com...
