Operating instructions
Through-beam sensor
UK
O6E7xx / O6S7xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O6E7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM O6E7 Series

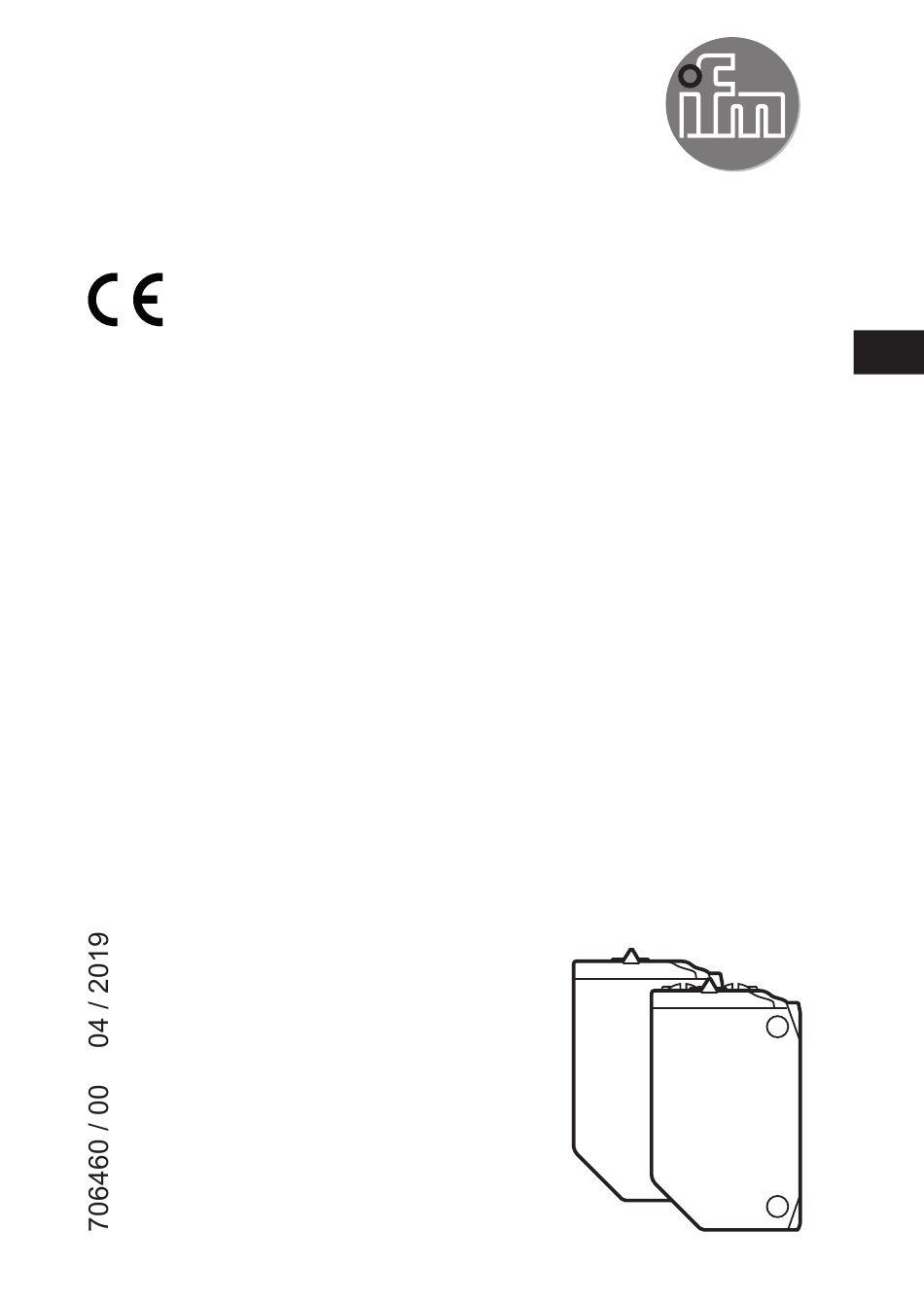

  • Page 1 Operating instructions Through-beam sensor O6E7xx / O6S7xx...
  • Page 2: Table Of Contents

    7�2�1 Adjustable parameters ������������������������������������������������������������������������10 7�2�2 Set the sensitivity with object ��������������������������������������������������������������12 7�2�3 Setting the maximum sensitivity ���������������������������������������������������������12 8 Operation �����������������������������������������������������������������������������������������������������������13 9 Maintenance, repair, disposal ����������������������������������������������������������������������������13 1 Preliminary note Technical data, approvals, accessories and further information at www�ifm�com� 1.1 Symbols used ► Instructions...
  • Page 3: Safety Instructions

    > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Information Supplementary note� Important note Non-compliance may result in malfunction or interference� 2 Safety instructions • Read this document before setting up the product and keep it during the entire service life�...
  • Page 4: Functions And Features

    Position of the product label Explanatory label 3 Functions and features The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal� 4 Installation 1: Transmitter 2: Receiver ► Secure the receiver (O6E ...) to a bracket. ►...
  • Page 5: Operating And Display Elements

    5 Operating and display elements Transmitter 1: LED green - operation Receiver 2: LED green - operation, stability indication 3: OUT OFF button 4: LED yellow - switching output active 5: OUT ON button 5.1 Stability indication The green LED is on when the supply voltage is applied and the sensor signal is stable�...
  • Page 6: Electrical Connection

    6 Electrical connection The unit must be connected by a qualified electrician� ► The national and international regulations for the installation of electri- cal equipment must be adhered to� ► Ensure voltage supply to EN 50178� ► Disconnect power� ► Connect the unit as follows: 6.1 Transmitter M12 pigtail connector Cable...
  • Page 7: 6�2�2 Npn

    M8 connector, 3 pole M8 connector, 4 pole 6.2.2 NPN M12 pigtail connector Cable BK: black BN: brown BU: blue Colours to DIN EN 60947-5-2 M8 connector, 3 pole M8 connector, 4 pole...
  • Page 8: 6�1 Transmitter

    7 Settings 7.1 Settings on the sensor 7.1.1 The sensor is to switch when the object is detected ► Position object (Fig. 1). ► Press [OUT ON] for > 2 s� > The yellow LED flashes� > The setting of the sensitivity with object is made by releasing [OUT ON]� ►...
  • Page 9: 7�1�2 The Sensor Is Not To Switch When The Object Is Detected

    The IODDs necessary for the configuration of the unit, detailed information about process data structure, diagnostic information, parameter addresses and the necessary information about the required IO-Link hardware and software can be found at www�ifm�com�...
  • Page 10: 7�2�1 Adjustable Parameters

    7.2.1 Adjustable parameters Among others, the following parameters can be set via IO-Link� A table of all adjustable parameters can be found at www�ifm�com/de/io-link� Parameters for the receiver (O6E7xx) Parameter Values Description Standard name setting SSC1 Param� 1 ��� 100 Setting switch point in step increment "1"�...
  • Page 11 Parameter Values Description Standard name setting Operating hours 0 ��� 65535 Operating hours N� A� Parameters for the transmitter (O6E7xx) Parameter Values Description Standard name setting Transmitter - On Configuration transmitted light on / off configuration - Off Number of 0 ���...
  • Page 12: 7�2�2 Set The Sensitivity With Object

    7.2.2 Set the sensitivity with object ► Start the LR DEVICE software� ► Align the transmitter to the object (Fig. 1). ► Press [Teach SP1 TP1] in the LR DEVICE software� ► Align the receiver to the transmitter (Fig. 2). ►...
  • Page 13: Operation

    ► For cleaning do not use any solvents or cleaning agents which could damage the plastic parts� ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations� Faulty sensors must only be repaired by the manufacturer� Technical data and further information at www�ifm�com...
