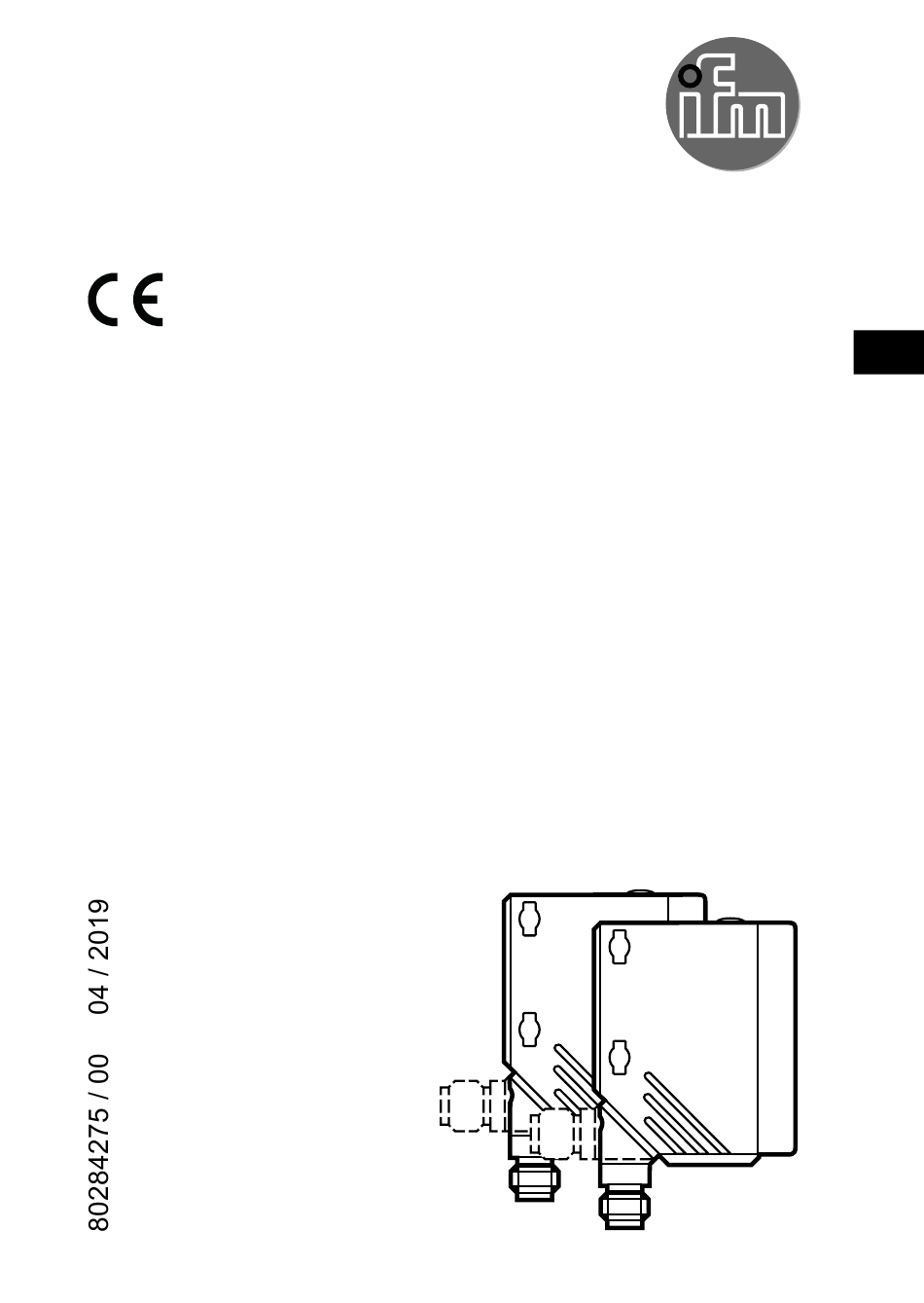

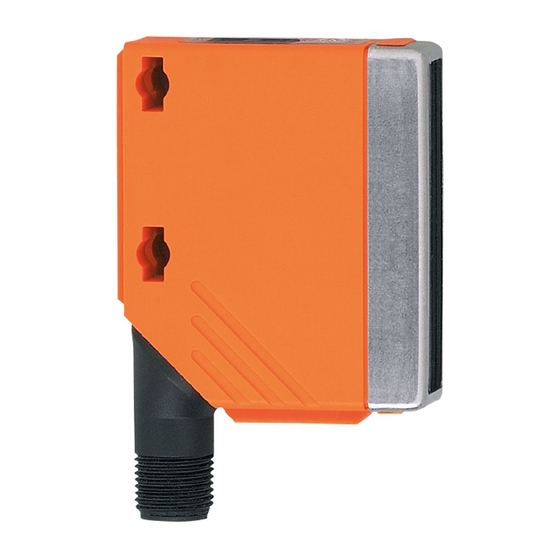

- Page 1 Operating instructions Through-beam sensor O5E7xx O5S7xx...
- Page 2 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Safety instructions According to the cULus approval Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure.
- Page 3 4 Installation transmitter receiver ► Install the receiver (O5E...) and secure it to a bracket. ► Align the transmitter (O5S...) to the receiver and fix it. Maximum range is only possible with precise alignment. 5 Operating and display elements receiver 1: LED 2: [OUT on] 3: [OUT off]...
- Page 4 ► Disconnect power. ► Connect the unit as follows: Receiver DC PNP pin 1 = L+ (10...36 V DC) (pin 2 = not connected) pin 3 = L- pin 4 = load (PNP, 200 mA) Transmitter DC pin 1 = L+ (10...36 V DC) (pin 2 = not connected) pin 3 = L- (pin 4 = not connected)
- Page 5 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic material. ► Do not try to open the module enclosure. There are no user - serviceable components inside. Technical data and further information at www.ifm.com...
