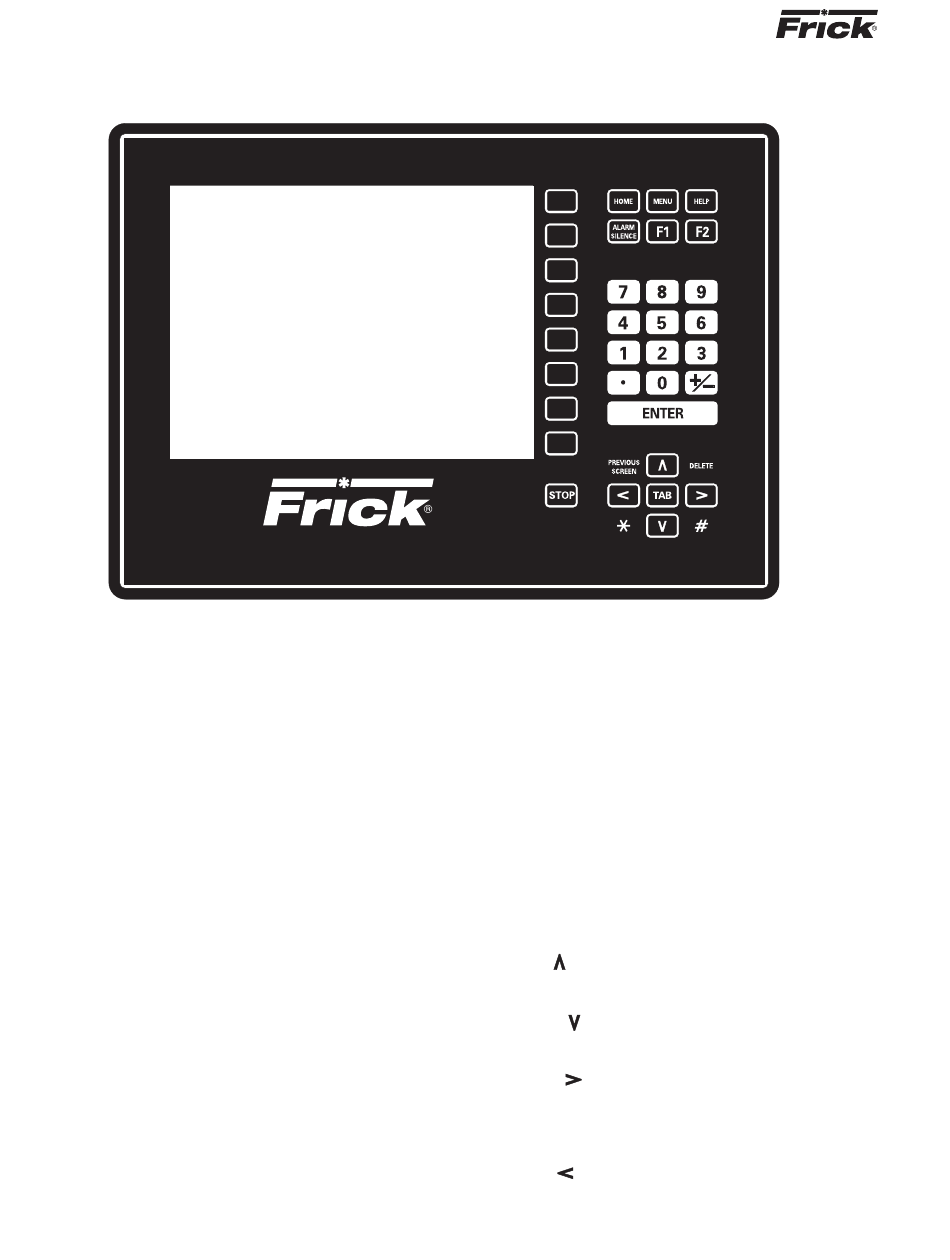

KEYPAD KEYS

Following is a list of the labeled keypad keys and the ac-
tions that occur when they are pressed:
[STOP] - Immediately stops the compressor. The compres-
sor is stopped regardless of any other conditions.
[HOME] - Shows the "Operating Status" display. This dis-
play is an overview of the present readings, operating modes
and operating status.
[MENU] - Shows the "Main Menu" display. This display has
the main selections for accessing information, setup of op-
tions, and setpoint entry.
[HELP] - Displays the on-line "HELP". Information is shown
for the operation of the compressor control panel.
[ALARM SILENCE] - Immediately silences a sounding
alarm and turns off the alarm annunciation device that is
connected to this panel.
[F1] - A function key that is only active when a display indi-
cates it as a selection key. Its function is dependent on what
the display indicates will occur.
[F2] - A function key that is only active when a display indi-
cates it as a selection key. Its function is dependent on what
the display indicates will occur.
NUMERALS [0] - [9] - The numerical keys are used to enter
a value in a data field.
FRICK QUANTUM CONTROL PANEL
OPERATION

KEYS AND KEY FUNCTIONS

DECIMAL [.] - The decimal point is used when entering a
decimal value in a data field.
[+/-] - When changing a value in a data field, this key will
toggle the value between negative and positive.
[ENTER] - When changing data in a data entry field, this
key will input the change.
[PREVIOUS SCREEN] - Shows the display that was viewed
previously to the current display. Also is used to return to
the previous set of screen keys when accessing different
sets of screen key selections on the same display.
[DELETE] - When changing a value in a data field, this key
will delete the selected character.
Up Arrow [ ] - When in the mode of changing setpoints,
this arrow is used to go to the previous data entry field.
Down Arrow [ ] - When in the mode of changing setpoints,
this arrow is used to go to the next data entry field.
Right Arrow [
this arrow is used to go to the next data entry field. When in
the mode of changing a data entry field, this arrow is used
to go to the next character.
Left Arrow [
this arrow is used to go to the previous data entry field.
When in the mode of changing a data entry field, this arrow
is used to go to the previous character.
] - When in the mode of changing setpoints,
] - When in the mode of changing setpoints,
