Drip-off antenna 50 mm (2 in), threaded process connection
 40

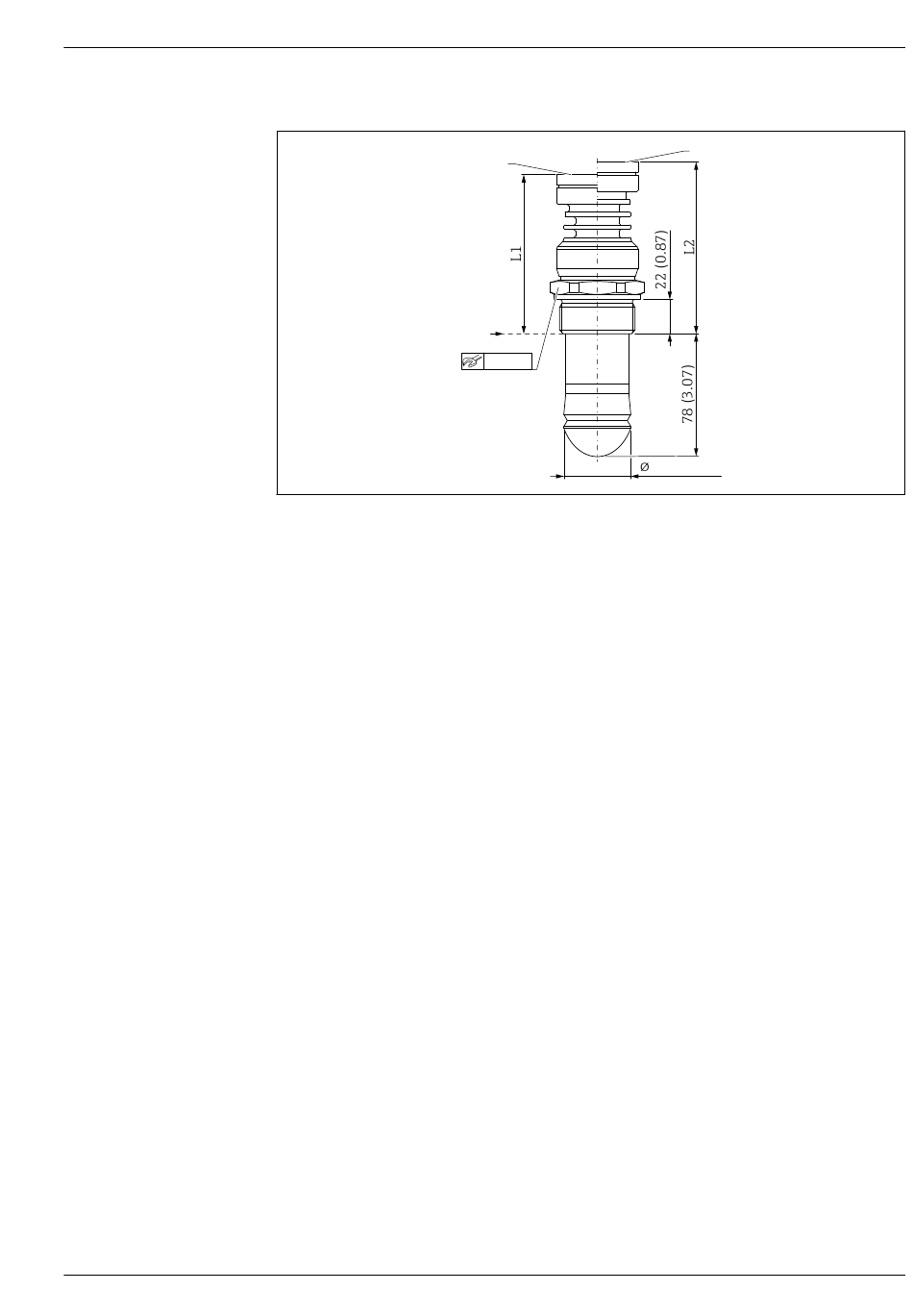

Dimensions of Drip-off antenna 50 mm (2 in), threaded process connection. Unit of
measurement mm (in)
A
Process temperature version ≤150 °C (302 °F)
B
Process temperature version ≤200 °C (392 °F)
1
Bottom edge of housing
R
Reference point of measurement
L1
97 mm (3.82 in); version with Ex d or XP approval +5 mm (+0.20 in)
L2
109 mm (4.29 in); version with Ex d or XP approval +5 mm (+0.20 in)
A
B
1
R
55 mm
42.5 (1.67)
1
A0046479
43
