KA01589F/00/EN/01.22-00
71575926
2022-08-01
Products
Brief Operating Instructions

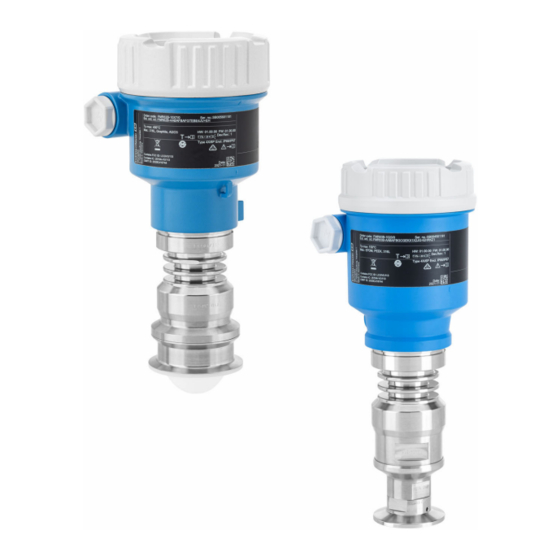

Micropilot FMR63B
Free space radar
HART
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micropilot FMR63B and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Micropilot FMR63B

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 Micropilot FMR63B HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3: Table Of Contents

    Micropilot FMR63B HART Table of contents Table of contents Symbols ................4 Safety symbols .
  • Page 4: Symbols

    Symbols Micropilot FMR63B HART Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
  • Page 5: Requirements For Personnel

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
  • Page 6: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Incoming acceptance...
  • Page 7: Product Identification

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.
  • Page 8: Storage And Transport

    Storage and transport Micropilot FMR63B HART Storage and transport Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks 9.1.1 Storage temperature range See Technical Information. Transporting the product to the measuring point...
  • Page 9: Mounting Requirements

    Micropilot FMR63B HART Installation 10.2 Mounting requirements 10.2.1 Internal vessel fittings α A0031777 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. Endress+Hauser...
  • Page 10 Installation Micropilot FMR63B HART 10.2.2 Avoiding interference echoes A0031813 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. 10.2.3 Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface.
  • Page 11: Mounting The Device

    Micropilot FMR63B HART Installation 10.3 Mounting the device 10.3.1 Integrated antenna, PEEK 20 mm (0.75 in) Information concerning threaded connections • When screwing in, turn by the hex bolt only. • Tool: open-ended wrench 36 mm • Maximum permissible torque: 50 Nm (36 lbf ft)
  • Page 12 Installation Micropilot FMR63B HART The maximum length of the nozzle H depends on the nozzle diameter D D 50 to 80 mm (2 to 3.2 in) 600 mm (24 in) 80 to 100 mm (3.2 to 4 in) 1 000 mm (40 in)
  • Page 13 Micropilot FMR63B HART Installation 10.3.4 Turning the housing The housing can be rotated up to 380° by loosening the locking screw. Your benefits • Easy installation due to optimum alignment of housing • Easily accessible device operation • Optimum readability of the local display (optional)
  • Page 14: Post-Mounting Check

    Installation Micropilot FMR63B HART 4 0.7 Nm A0038224 If fitted: release the screw of the cover lock for the electronics compartment cover using the Allen key. Unscrew the electronics compartment cover from the transmitter housing and check the cover seal.
  • Page 15: Electrical Connection

    Micropilot FMR63B HART Electrical connection  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •  Ambient temperature •  Measuring range Electrical connection 11.1...
  • Page 16: Connecting The Device

    Electrical connection Micropilot FMR63B HART A0046583 Single compartment housing, plastic Single compartment housing, aluminum Dual compartment housing Dual compartment housing, L-form Ground terminal for connecting the potential matching line WARNING Explosion Hazard! ‣ Please refer to the separate documentation on applications in hazardous areas for the safety instructions.
  • Page 17 Micropilot FMR63B HART Electrical connection 11.2.1 Supply voltage The supply voltage depends on the selected type of device approval Non-hazardous, Ex d, Ex e 10.5 to 35 V Ex i 10.5 to 30 V Nominal current 4 to 20 mA The power unit must be tested to ensure it meets safety requirements (e.g., PELV, SELV,...
  • Page 18 The overvoltage protection can optionally be ordered as a "Mounted accessory" via the product structure Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...
  • Page 19 Micropilot FMR63B HART Electrical connection 11.2.5 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). The specified cable gland must be used.
  • Page 20 Electrical connection Micropilot FMR63B HART 11.2.6 Terminal assignment Single compartment housing A0042594  3 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 21 Micropilot FMR63B HART Electrical connection Dual compartment housing A0042803  4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 22 Electrical connection Micropilot FMR63B HART Dual compartment housing, L-form A0045842  5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.7 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...
  • Page 23: Ensuring The Degree Of Protection

    Micropilot FMR63B HART Electrical connection The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.
  • Page 24: Operation Options

    (e.g. FieldCare/DeviceCare). 12.3 Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: Endress+Hauser...
  • Page 25: Access To The Operating Menu Via The Local Display

    Micropilot FMR63B HART Operation options The local display is suitable for configuring simple applications. The operating tools (FieldCare, DeviceCare, SmartBlue, AMS, PDM, ...) can be used to configure the parameters of wide-ranging applications. Wizards help the user to commission the various applications. The user is guided through the individual configuration steps.
  • Page 26 Requirement • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The range of the connection is up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.
  • Page 27: Access To The Operating Menu Via The Operating Tool

    12.6.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S 12.7...
  • Page 28: Commissioning

    Commissioning Micropilot FMR63B HART Access is via: • CDI service interface • HART communication Typical functions: • Parameterization of transmitters • Loading and saving of device data (upload/download) • Documentation of the measuring point • Visualization of the measured value memory (line recorder) and event logbook...
  • Page 29: Establishing A Connection Via Fieldcare And Devicecare

    Commubox FXA195 (USB) Field Xpert SMT70 Bluetooth modem with connecting cable (e.g., VIATOR) Transmitter 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...
  • Page 30: Configuring The Device Address Via Software

    Commissioning Micropilot FMR63B HART 13.4 Configuring the device address via software See "HART address" parameter Enter the address to exchange data via the HART protocol. • Guidance → Commissioning → HART address • Application → HART output → Configuration → HART address 13.5...
  • Page 31: Device Configuration

    Micropilot FMR63B HART Commissioning 13.6 Device configuration 13.6.1 Level measurement in liquids 100% A0016933  9 Configuration parameters for level measurement in liquids Reference point of measurement Distance Level "Empty calibration" parameter (= 0%) "Full calibration" parameter (= 100%) 13.6.2...
  • Page 32 *71575926* 71575926 www.addresses.endress.com...
