Micropilot FMR60B HART

Installation instructions

Endress+Hauser

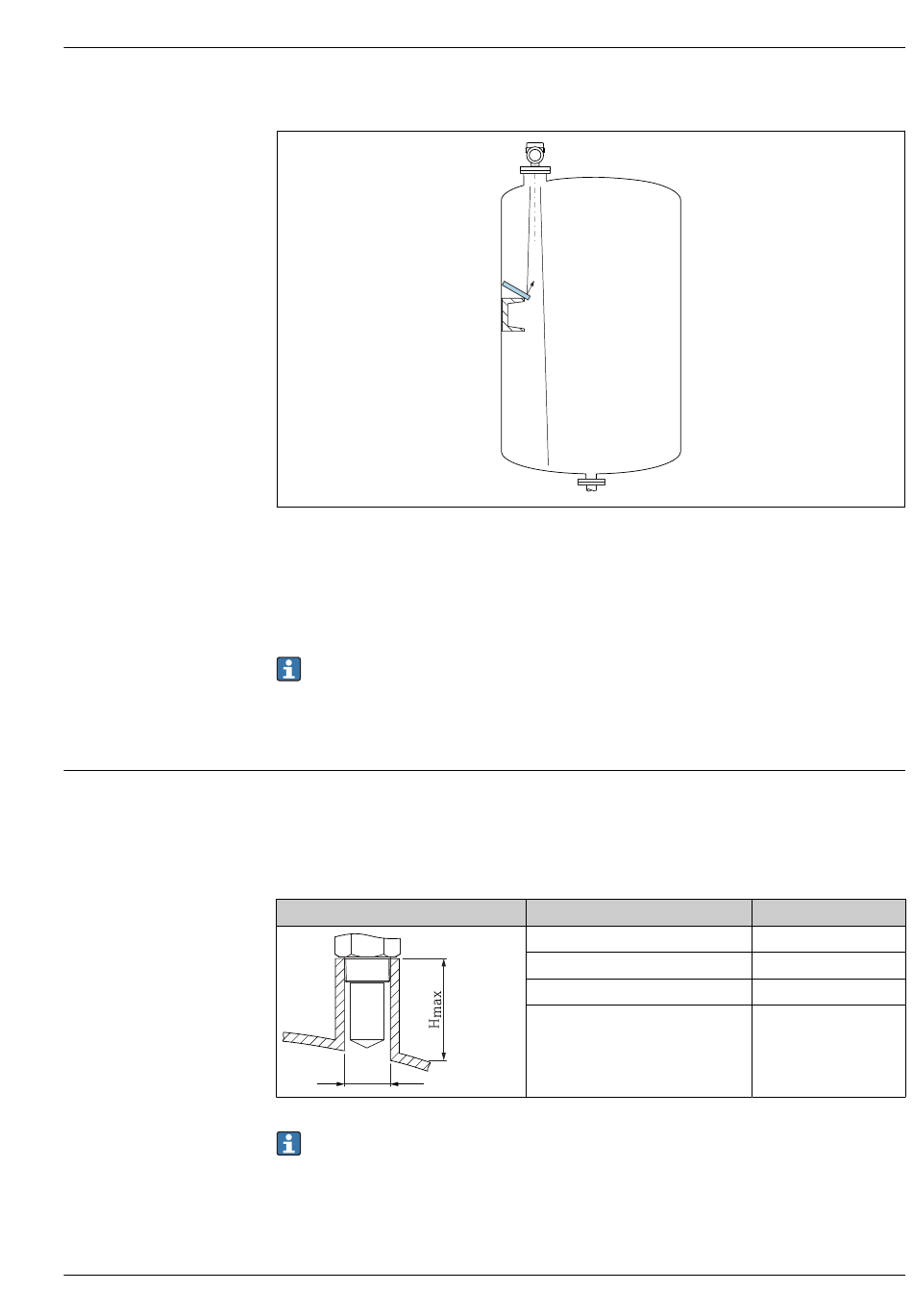

Avoiding interference echoes
Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference
echoes.
Vertical alignment of antenna axis
Align the antenna so that it is perpendicular to the product surface.
The maximum reach of the antenna can be reduced, or additional interference signals can
occur, if the antenna is not installed perpendicular to the product.
Radial alignment of the antenna
Based on the directional characteristic, radial alignment of the antenna is not necessary.
Encapsulated antenna, PVDF 40 mm (1.57 in)
Information about the mounting nozzle
The maximum nozzle length H
Maximum nozzle length H
max
øD
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer' s support department for applications with nozzles that are
higher than indicated in the table.
depends on the nozzle diameter D.
max
as a function of the nozzle diameter D
D
50 to 80 mm (2 to 3.2 in)
80 to 100 mm (3.2 to 4 in)
100 to 150 mm (4 to 6 in)
≥ 150 mm (6 in)
A0031813
H
max
600 mm (24 in)
1 000 mm (24 in)
1 250 mm (50 in)
1 850 mm (74 in)
