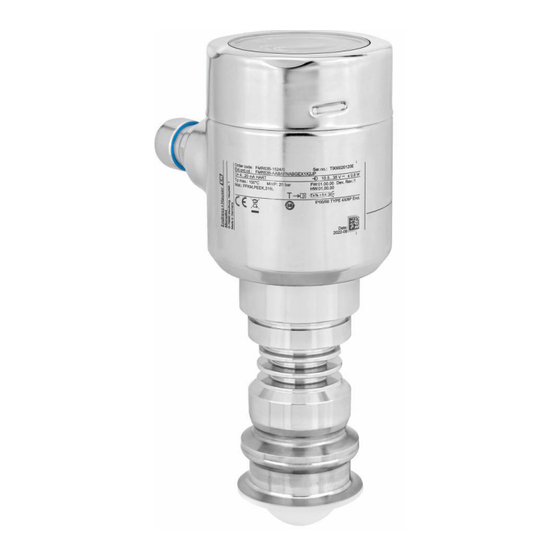

- Page 1 Products Solutions Services BA02263F/00/EN/01.23-00 71627298 2023-09-01 01.00.zz (Device firmware) Operating Instructions Micropilot FMR63B PROFIBUS PA Free space radar...
- Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...
-
Page 3: Table Of Contents
Micropilot FMR63B PROFIBUS PA Table of contents Table of contents 5.3.5 Turning the display module ..17 About this document ....5 5.3.6... - Page 4 Table of contents Micropilot FMR63B PROFIBUS PA Commissioning ....39 Repair ......55 Preliminaries .
-
Page 5: About This Document
Micropilot FMR63B PROFIBUS PA About this document About this document Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Technical Information (TI) -
Page 7: Terms And Abbreviations
Karlsruhe - Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... -
Page 8: Basic Safety Instructions
Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 9: Workplace Safety
It meets the general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. - Page 10 Basic safety instructions Micropilot FMR63B PROFIBUS PA • Write protection via hardware write protection switch • Access code (applies for operation via display, Bluetooth or FieldCare, DeviceCare, PDM) Endress+Hauser...
-
Page 11: Product Description
Micropilot FMR63B PROFIBUS PA Product description Product description Product design A0046663 1 Design of the Micropilot FMR63B Electronics housing Integrated antenna, PEEK, 20 mm (0.75 in), thread Integrated antenna, PEEK, 20 mm (0.75 in), M24 adapter Antenna, cladded flush mount, PTFE, with Tri-Clamp ISO2852... -
Page 12: Incoming Acceptance And Product
All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate. All the information about the measuring device is displayed. -
Page 13: Manufacturer Address
Micropilot FMR63B PROFIBUS PA Incoming acceptance and product identification 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. Storage and transport 4.3.1 Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks Storage temperature range See Technical Information. -
Page 14: Mounting
Mounting Micropilot FMR63B PROFIBUS PA Mounting General instructions WARNING Loss of protection rating if the device is opened in a wet environment. ‣ Only open the device in a dry environment! 1. Install the device or turn the housing so that the cable entries do not point upwards. -
Page 15: Avoiding Interference Echoes
Micropilot FMR63B PROFIBUS PA Mounting 5.2.2 Avoiding interference echoes A0031813 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. 5.2.3 Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface. -
Page 16: Antenna, Ptfe Cladded, Flush Mount 50 Mm (2 In)
Mounting Micropilot FMR63B PROFIBUS PA Maximum nozzle length H as a function of the nozzle diameter D D 40 to 50 mm (1.6 to 2 in) 200 mm (8 in) 50 to 80 mm (2 to 3.2 in) 300 mm (12 in) 80 to 100 mm (3.2 to 4 in) -
Page 17: Turning The Housing
Micropilot FMR63B PROFIBUS PA Mounting The maximum length of the nozzle H depends on the nozzle diameter D D 80 to 100 mm (3.2 to 4 in) 1 750 mm (70 in) 100 to 150 mm (4 to 6 in) 2 200 mm (88 in) ≥... -
Page 18: Changing The Installation Position Of The Display Module
Mounting Micropilot FMR63B PROFIBUS PA 4 0.7 Nm A0038224 1. If fitted: release the screw of the cover lock for the electronics compartment cover using the Allen key. 2. Unscrew the electronics compartment cover from the transmitter housing and check the cover seal. - Page 19 Micropilot FMR63B PROFIBUS PA Mounting WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the measuring device. 1 → 2 → 3 → 4 mm 0.7 Nm A0046831 A0046832 A0046833 ‣...
-
Page 20: Closing The Housing Covers
Mounting Micropilot FMR63B PROFIBUS PA 7 → A0048406 A0046928 ‣ ‣ Plug in the connection for the Screw the display cover firmly display module in the back onto the housing. If fitted: connection compartment. tighten the screw of the cover ‣... -
Page 21: Electrical Connection
Micropilot FMR63B PROFIBUS PA Electrical connection Electrical connection Connecting requirements 6.1.1 Cover with securing screw The cover is locked by a securing screw in devices for use in hazardous areas with certain explosion protection. NOTICE If the securing screw is not positioned correctly, the cover cannot provide secure sealing. -
Page 22: Connecting The Device
Electrical connection Micropilot FMR63B PROFIBUS PA A0046583 Single compartment housing, plastic Single compartment housing, aluminum Single compartment housing, 316L hygiene (Ex device) Dual compartment housing Dual compartment housing, L-form Ground terminal for connecting the potential matching line WARNING Explosion Hazard! ‣... -
Page 23: Cable Specification
Micropilot FMR63B PROFIBUS PA Electrical connection Nominal current 14 mA Failure current FDE (Fault 0 mA Disconnection Electronic) • Use only suitable and certified Profibus PA components (e.g. DP/PA segment coupler) for the power supply • FISCO/FNICO-compliant according to IEC 60079-27 •... -
Page 24: Wiring
Electrical connection Micropilot FMR63B PROFIBUS PA Devices with optional overvoltage protection • Spark-over voltage: min. 400 V • Tested according to IEC / DIN EN 60079-14 sub chapter 12.3 (IEC / DIN EN 60060-1 chapter 7) • Nominal discharge current: 10 kA... -
Page 25: Terminal Assignment
Micropilot FMR63B PROFIBUS PA Electrical connection 6.2.5 Terminal assignment Single compartment housing A0042594 4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803 5 Connection terminals and ground terminal in the connection compartment... -
Page 26: Cable Entries
Electrical connection Micropilot FMR63B PROFIBUS PA Dual compartment housing, L-form A0045842 6 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 6.2.6 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum... -
Page 27: Ensuring The Degree Of Protection
Micropilot FMR63B PROFIBUS PA Electrical connection Devices with M12 plug A0011175 7 View of the plug-in connection on the device Signal + Not assigned Signal – Ground Various M12 sockets are available as accessories for devices with M12 plugs. -
Page 28: Operation Options
• Operation via optical operating keys on the device display (optional) • Operation via Bluetooth® wireless technology (with optional device display with Bluetooth) with SmartBlue app or FieldXpert, DeviceCare • Operation via operating tool (Endress+Hauser FieldCare/DeviceCare, PDM etc.) Operating keys and DIP switches on the PROFIBUS PA electronic insert... -
Page 29: Software Addressing
Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: The local display is suitable for configuring simple applications. -
Page 30: Operation Via Bluetooth® Wireless Technology (Optional)
Prerequisite • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings. -
Page 31: Access To The Operating Menu Via The Operating Tool
7.6.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S FieldCare 7.7.1... - Page 32 Operation options Micropilot FMR63B PROFIBUS PA Typical functions: • Parameter configuration of transmitters • Loading and saving of device data (upload/download) • Documentation of the measuring point • Visualization of the measured value memory (line recorder) and event logbook For additional information about FieldCare, see Operating Instructions BA00027S...
-
Page 33: System Integration
Micropilot FMR63B PROFIBUS PA System integration System integration According to EN 50170 Volume 2, IEC 61158-2 (MBP) type 1 PROFIBUS PA Profile Version 3.02 Protocol-specific data 8.1.1 PROFIBUS PA Manufacturer ID: 17 (0x11) Ident number: 0x1568 or 0x9700 Profile version: 3.02... -
Page 34: Device Master File (Gsd)
System integration Micropilot FMR63B PROFIBUS PA Supported functions • Identification & maintenance Straightforward device identification on the part of the control system and nameplate • Automatic Ident Number adoption GSD compatibility mode for generic profile 0x9700 "Transmitter with 1 Analog Input"... -
Page 35: Compatibility With Other Devices
Micropilot FMR63B PROFIBUS PA System integration The Profile GSD that is to be used is specified in the Ident number selector parameter by selecting the 0x9700 (1AI) option or FMR6xB 0x1568 option. 8.2.3 Compatibility with other devices This device ensures compatibility in cyclic data exchange with the automation system (Class 1 master) for the following devices: Generic Transmitter 1 AI PROFIBUS PA (Profile version 3.02, ident number 0x9700) -
Page 36: Description Of The Modules
System integration Micropilot FMR63B PROFIBUS PA file (GSD) contains a description of the individual modules (input and output data) along with their individual properties. The modules are permanently assigned to the slots, i.e. when configuring the modules, the order and the arrangement of the modules must be respected. - Page 37 Micropilot FMR63B PROFIBUS PA System integration AO module (Analog Output) Transmit display information from the PROFIBUS master (Class 1) to the measuring device. An analog output value, along with the status, can be transmitted cyclically from the PROFIBUS master (Class 1) to the measuring device via the AO module and output on the local display.
- Page 38 System integration Micropilot FMR63B PROFIBUS PA The device works as a modular PROFIBUS slave. In contrast to a compact slave, a modular PROFIBUS slave has a variable design and consists of several individual modules. The GSD file contains a description of the individual modules along with their individual properties.
-
Page 39: Commissioning
Micropilot FMR63B PROFIBUS PA Commissioning Commissioning All configuration tools provide a commissioning assistant that supports the user when setting the most important configuration parameters (Guidance menu Commissioning wizard). Preliminaries The measuring range and the unit in which the measured value is transmitted correspond to the data on the nameplate. -
Page 40: Via Service Interface (Cdi)
9.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Setting the operating language 9.4.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: 1. -
Page 41: Configuring The Device
Micropilot FMR63B PROFIBUS PA Commissioning Configuring the device 9.5.1 Level measurement in liquids 100% A0016933 12 Configuration parameters for level measurement in liquids Reference point of measurement Length of antenna + 10 mm (0.4 in) 50 to 80 mm (1.97 to 3.15 in); medium εr < 2... -
Page 42: Recording The Echo Curve
Commissioning Micropilot FMR63B PROFIBUS PA Recording the Echo curve Record the current Echo curve as a reference echo curve for subsequent diagnostic purposes After the measurement has been configured, it is recommended to record the current Echo curve as a reference echo curve. -
Page 43: Operation
The Heartbeat submenu is only available if operating via FieldCare, DeviceCare or the SmartBlue app. It contains the wizards that are available with the application packages Heartbeat Verification and Heartbeat Monitoring. Documentation on the Heartbeat Technology: Endress+Hauser website: www.endress.com → Downloads. -
Page 44: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Micropilot FMR63B PROFIBUS PA Diagnostics and troubleshooting 11.1 General troubleshooting 11.1.1 General errors Device is not responding • Possible cause: Supply voltage does not match the specification on the nameplate Remedial action: Apply the correct voltage • Possible cause: The connecting cables are not in contact with the terminals... -
Page 45: Diagnostic Message
Remedial action: The standard user name is "admin" and the password is the device serial number indicated on the device nameplate (only if the password was not changed by the user beforehand) If the password has been forgotten, contact Endress+Hauser Service (www.addresses.endress.com) Connection via SmartBlue not possible •... -
Page 46: Diagnostic Information On Local
Diagnostics and troubleshooting Micropilot FMR63B PROFIBUS PA 11.3.1 Diagnostic information on local display A0043759 14 Segment display without keys Status symbol for event level Status signal with diagnostic event X X X X X X X S801 X X X X X X X A0043103 ... -
Page 47: Diagnostic Event And Event Text
Micropilot FMR63B PROFIBUS PA Diagnostics and troubleshooting 11.3.4 Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the associated status symbol is displayed in front of the diagnostic event. -
Page 48: Operating Menu
Diagnostics and troubleshooting Micropilot FMR63B PROFIBUS PA 2 → Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2 Diagnostics 3 A0051132 ‣ Select the diagnostic event and confirm Supply voltage (ID:203) S801 0d00h02m25s Increase supply voltage A0051133 ‣ Remedy informationClosing 11.4.2... - Page 49 Micropilot FMR63B PROFIBUS PA Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Build-up detected Check process conditions Warning Diagnostic of electronic Firmware incompatible 1. Check software Alarm 2. Flash or change main electronic...
-
Page 50: Event Logbook
Diagnostics and troubleshooting Micropilot FMR63B PROFIBUS PA Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of process Supply voltage too low Increase supply voltage Alarm Supply voltage too high Decrease supply voltage Warning Electronics temperature 1. -
Page 51: Filtering The Event Logbook
Micropilot FMR63B PROFIBUS PA Diagnostics and troubleshooting 11.7.2 Filtering the event logbook Filters can be used to determine which category of event messages is displayed in the Event list submenu. Navigation: Diagnostics → Event logbook Filter categories • All • Failure (F) •... -
Page 52: Resetting The Device
Diagnostics and troubleshooting Micropilot FMR63B PROFIBUS PA 11.8 Resetting the device 11.8.1 Reset password via operating tool Enter a code to reset the current "Maintenance" password. The code is delivered by your local support. Navigation: System → User management → Reset password → Reset password For detailed information on the Reset password parameter: Description of device... -
Page 53: Device Information
Micropilot FMR63B PROFIBUS PA Diagnostics and troubleshooting Resetting the device to the factory setting 12 s Display 50 ms A0050015 17 Sequence - Factory setting Reset the device to the factory setting ‣ Press operating key I for at least 12 s. -
Page 54: Maintenance
Maintenance Micropilot FMR63B PROFIBUS PA Maintenance No special maintenance work is required. 12.1 Exterior cleaning Notes on cleaning • The cleaning agents used should not corrode the surfaces and the seals • Observe the degree of protection of the device 12.2... -
Page 55: Repair
Repair concept Endress+Hauser repair concept • The devices have a modular design • Repairs can be carried out by Endress+Hauser Service or by appropriately trained customers • Spare parts are grouped into logical kits with the associated replacement instructions For more information on service and spare parts, please contact your Endress+Hauser sales representative. -
Page 56: Return
Repair Micropilot FMR63B PROFIBUS PA 13.4 Return The requirements for safe device return can vary depending on the device type and national legislation. 1. Refer to the web page for information: http://www.endress.com/support/return-material Select the region. 2. Return the device if repairs or a factory calibration are required, or if the wrong device was ordered or delivered. -
Page 57: Accessories
Micropilot FMR63B PROFIBUS PA Accessories Accessories 14.1 Weather protection cover 316L The weather protection cover can be ordered together with the device via the "Accessory enclosed" product structure. It is used to protect against direct sunlight, precipitation and ice. Weather protection cover 316L is suitable for the dual compartment housing made of aluminum or 316L. -
Page 58: Remote Display Fhx50B
Accessories Micropilot FMR63B PROFIBUS PA Material Plastic Order number for accessories: 71438291 14.3 Remote display FHX50B The remote display is ordered via the Product Configurator. If the remote display is to be used, the device version Prepared for display FHX50B must be ordered. -
Page 59: Gas-Tight Feedthrough
Micropilot FMR63B PROFIBUS PA Accessories Specification of customer-supplied connecting cable Push-in CAGE CLAMP®, connection technology, push actuation • Conductor cross-section: • Solid conductor 0.2 to 0.75 mm (24 to 18 AWG) • Fine-stranded conductor 0.2 to 0.75 mm (24 to 18 AWG) •... -
Page 60: 14.10 Rid16
Accessories Micropilot FMR63B PROFIBUS PA A0011631 Displays 8 process- or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol Technical Information TI00145R and Operating Instructions BA01267K 14.10 RID16 8-channel field indicator for fieldbus systems A0011634 Displays 8 process- or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA... - Page 61 Micropilot FMR63B PROFIBUS PA Accessories Pow er PB DP RS4 85 LAN 1 PB Err Fail ure LAN 2 Res et SFG 500 A0028262 Parallel access to PROFIBUS networks, PROFIBUS and HART device status monitoring Ethernet gateway basic mode with integrated web server and adaptive PROFIBUS master, Class 2 for communication with PROFIBUS devices.
-
Page 62: Technical Data
Technical data Micropilot FMR63B PROFIBUS PA Technical data 15.1 Input Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on "E", the empty distance entered. Measuring range The measuring range starts at the point where the beam hits the tank floor. Levels below this point cannot be measured, particularly in the case of spherical bases or conical outlets. - Page 63 Micropilot FMR63B PROFIBUS PA Technical data 100% A0051658 20 Usable measuring range Length of antenna + 10 mm (0.4 in) Usable measuring range 50 to 80 mm (1.97 to 3.15 in); medium εr < 2 Vessel height Reference point of measurement, varies depending on the antenna system For further information on the reference point, see →...
- Page 64 For the dielectric constants (DC values) of many media commonly used in industry, please refer to: • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) Measurement in storage vessel Storage vessel - measuring conditions Calm medium surface (e.g.
- Page 65 Micropilot FMR63B PROFIBUS PA Technical data Antenna, PTFE cladded flush mount, 50 mm (2 in) in storage vessel Media group Measuring range A0 (ε 1.2 to 1.4) 7 m (23 ft) A (ε 1.4 to 1.9) 12 m (39 ft) B (ε...
- Page 66 Technical data Micropilot FMR63B PROFIBUS PA Cladded antenna, PEEK, 40 mm (1.5 in) in storage vessel Media group Measuring range A0 (ε 1.2 to 1.4) 3 m (10 ft) A (ε 1.4 to 1.9) 6 m (20 ft) B (ε...
- Page 67 Micropilot FMR63B PROFIBUS PA Technical data Antenna, PTFE cladded flush mount, 80 mm (3 in) in buffer vessel Media group Measuring range A0 (ε 1.2 to 1.4) 12 m (39 ft) A (ε 1.4 to 1.9) 23 m (75 ft) B (ε...
- Page 68 Technical data Micropilot FMR63B PROFIBUS PA Integrated antenna, PEEK, 20 mm (0.75 in) in vessel with agitator Media group Measuring range A (ε 1.4 to 1.9) 1 m (3.3 ft) B (ε 1.9 to 4) 1.5 m (5 ft) C (ε...
-
Page 69: Output
Micropilot FMR63B PROFIBUS PA Technical data Cladded antenna, PEEK, 20 mm (0.75 in) in vessel with agitator Media group Measuring range A (ε 1.4 to 1.9) 1 m (3.3 ft) B (ε 1.9 to 4) 1.5 m (5 ft) C (ε... - Page 70 Technical data Micropilot FMR63B PROFIBUS PA Local display Status signal (in accordance with NAMUR Recommendation NE 107): Plain text display Operating tool via service interface (CDI) Status signal (in accordance with NAMUR Recommendation NE 107): Plain text display Operating tool via PROFIBUS PA communication...
-
Page 71: Environment
Micropilot FMR63B PROFIBUS PA Technical data Digital Input: Is only available if the "Heartbeat Verification + Monitoring" application package was selected. • 168 Build-up detected, optional (Guidance → Heartbeat Technology → Build-up detection → 168 Build-up detected) • 952 Foam detected, optional (Guidance → Heartbeat Technology → Foam detection →... - Page 72 Technical data Micropilot FMR63B PROFIBUS PA Plastic housing Plastic housing; process temperature –20 to +150 °C (–4 to +302 °F) A0032024 21 Plastic housing; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) | T : +76 °C (+169 °F)
- Page 73 Micropilot FMR63B PROFIBUS PA Technical data Plastic housing; process temperature –20 to +200 °C (–4 to +392 °F) A0032024 23 Plastic housing; process temperature –20 to +200 °C (–4 to +392 °F) = T : –20 °C (–4 °F) | T : +76 °C (+169 °F) = T...
- Page 74 Technical data Micropilot FMR63B PROFIBUS PA Restriction to a process temperature of 0 to +150 °C (+32 to +302 °F) with CSA C/US approval and plastic housing A0048826 26 Plastic housing; process temperature 0 to +150 °C (+32 to +302 °F) with CSA C/US approval = T...
- Page 75 Micropilot FMR63B PROFIBUS PA Technical data Aluminum housing, coated Aluminum housing; process temperature –20 to +150 °C (–4 to +302 °F) A0032024 29 Aluminum housing, coated; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) | T : +79 °C (+174 °F)
- Page 76 Technical data Micropilot FMR63B PROFIBUS PA Aluminum housing; process temperature –40 to +200 °C (–40 to +392 °F) A0032024 32 Aluminum housing, coated; process temperature –40 to +200 °C (–40 to +392 °F) = T : –40 °C (–40 °F) | T : +79 °C (+174 °F)
- Page 77 Micropilot FMR63B PROFIBUS PA Technical data 316L housing; process temperature –40 to +150 °C (–40 to +302 °F) A0032024 35 316L housing; process temperature range: –40 to +150 °C (–40 to +302 °F) = T : –40 °C (–40 °F) | T : +77 °C (+171 °F) = T...
- Page 78 Technical data Micropilot FMR63B PROFIBUS PA 316L housing, hygiene; process temperature –20 to +200 °C (–4 to +392 °F) A0032024 38 316L housing, hygiene; process temperature –20 to +200 °C (–4 to +392 °F) = T : –20 °C (–4 °F) | T : +76 °C (+169 °F)
- Page 79 Micropilot FMR63B PROFIBUS PA Technical data Installation height as per Generally up to 5 000 m (16 404 ft) above sea level IEC61010-1 Ed.3 Degree of protection Test as per IEC 60529 and NEMA 250-2014 Housing IP66/68, NEMA TYPE 4X/6P IP68 test condition: 1.83 m under water for 24 hours.
-
Page 80: Process
Technical data Micropilot FMR63B PROFIBUS PA 15.4 Process Process pressure range WARNING The maximum pressure for the device depends on the lowest-rated component with regard to pressure (components are: process connection, optional mounted parts or accessories). ‣ Only operate the device within the specified limits for the components! ‣... - Page 81 –1 to 25 bar (–14.5 to 362.6 psi) A0047825 The pressure range may be further restricted in the event of a CRN approval. Dielectric constant For liquids ε ≥ 1.2 Contact Endress+Hauser for applications with lower dielectric constants than indicated. Endress+Hauser...
-
Page 82: Index
Index Micropilot FMR63B PROFIBUS PA Index Access authorization to parameters Operating keys ......28 Read access . - Page 84 *71627298* 71627298 www.addresses.endress.com...
