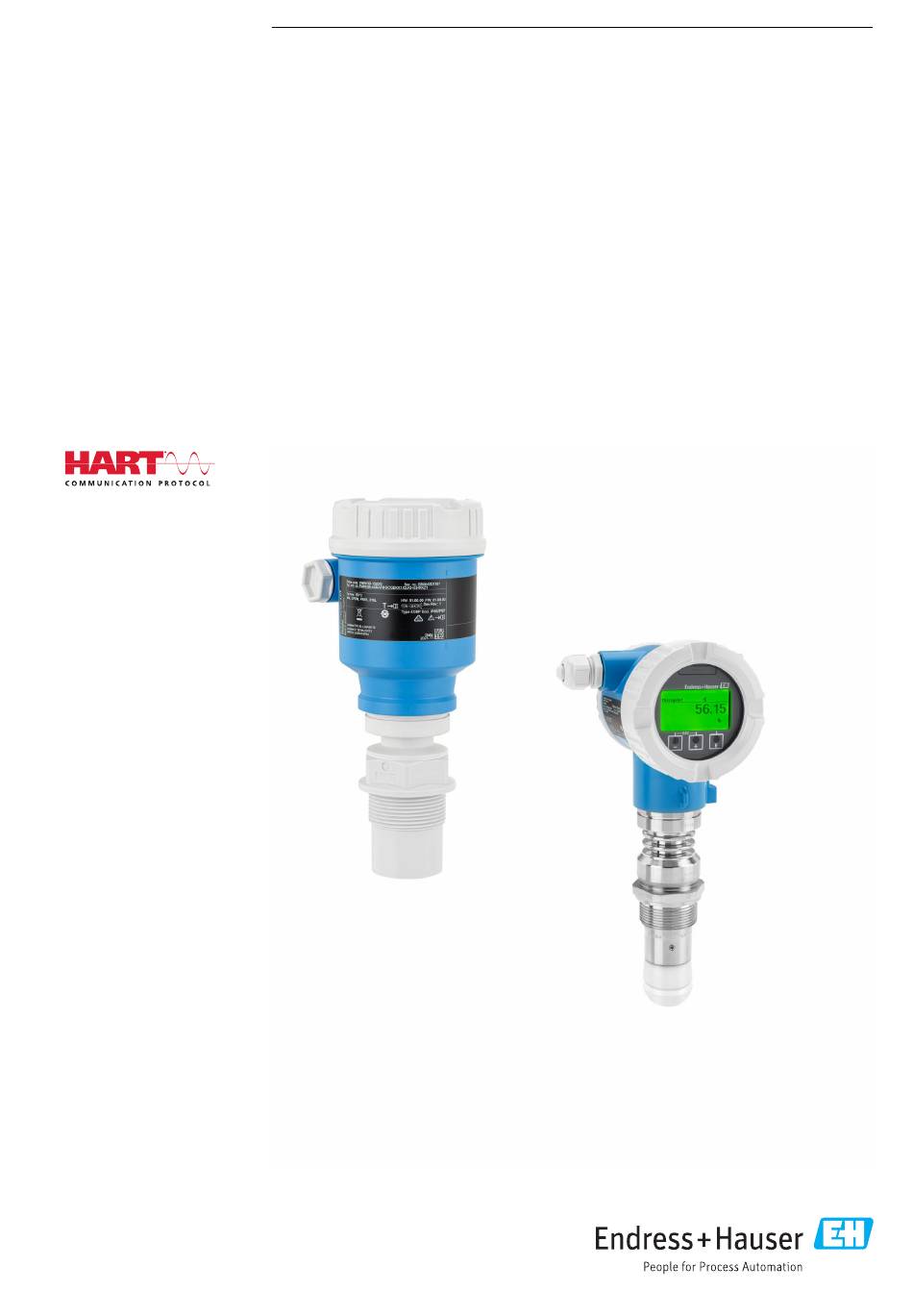

Micropilot FMR60B
Free space radar
HART
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hart Micropilot FMR60B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Hart Micropilot FMR60B

Summary of Contents for Endress+Hauser Hart Micropilot FMR60B

  • Page 1 Products Solutions Services BA02247F/00/EN/01.22-00 71575911 2022-08-01 01.00.zz (Device firmware) Operating Instructions Micropilot FMR60B Free space radar HART...
  • Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    PVDF40 mm (1.5 in) ... . . 15 Measured variables via HART protocol ..34 5.3.2 Drip-off antenna PTFE 50 mm (2 in) ....Endress+Hauser...
  • Page 4 12.1 Exterior cleaning ..... . 49 12.2 Seals ....... 49 Endress+Hauser...

  • Page 5: Document Information

    Procedures, processes or actions that are forbidden  Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Series of steps Result of a step Operation via local display Operation via operating tool Endress+Hauser...

  • Page 6: Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter serial number from nameplate. • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Technical Information (TI)

  • Page 7: Registered Trademarks

    Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 8: Basic Safety Instructions

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 9: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Functional Safety SIL (optional) The Functional Safety Manual must be strictly observed for devices that are used in functional safety applications.

  • Page 10: Device-Specific It Security

    An overview of the most important functions is provided in the following section: • Write protection via hardware write protection switch • Access code (applies for operation via display, Bluetooth or FieldCare, DeviceCare, ASM, PDM) Endress+Hauser...

  • Page 11: Product Description

    Design of the Micropilot FMR60B Electronics housing Encapsulated antenna, PVDF, 40 mm (1.5 in) Drip-off antenna 50 mm (2 in) - threaded or UNI flange process connection Integrated antenna, PEEK, 20 mm (0.75 in) Integrated antenna, PEEK, 40 mm (1.5 in) Endress+Hauser...

  • Page 12: Incoming Acceptance And Product

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.

  • Page 13: Manufacturer Address

    Micropilot FMR60B HART Incoming acceptance and product identification 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. Storage and transport 4.3.1 Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks Storage temperature range See Technical Information.

  • Page 14: Mounting

    4. A drip loop must be provided when laying the cables. Mounting requirements 5.2.1 Internal vessel fittings α A0031777 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. Endress+Hauser...

  • Page 15: Avoiding Interference Echoes

    • When screwing in, turn by the hex bolt only. • Tool: open-ended wrench 55 mm • Maximum permissible torque: 50 Nm (36 lbf ft) Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. Endress+Hauser...

  • Page 16: Drip-Off Antenna Ptfe 50 Mm (2 In)

    • The end of the nozzle must be smooth and free from burrs. • The edge of the nozzle should be rounded. • Mapping must be performed. • Please contact the manufacturer' s support department for applications with nozzles that are higher than indicated in the table. Endress+Hauser...

  • Page 17: Integrated Antenna, Peek 20 Mm (0.75 In)

    D ØD 40 to 50 mm (1.6 to 2 in) 400 mm (16 in) 50 to 80 mm (2 to 3.2 in) 550 mm (22 in) 80 to 100 mm (3.2 to 4 in) 850 mm (34 in) øD Endress+Hauser...

  • Page 18: Turning The Housing

    Tighten the securing screw (hexagon socket 4 mm (0.16 in)) with maximum 3.5 Nm (2.58 lbf ft) ± 0.3 Nm (0.22 lbf ft). 5.3.6 Turning the display module WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the measuring device. Endress+Hauser...

  • Page 19: Changing The Installation Position Of The Display Module

    If fitted: tighten the screw of the cover lock using the Allen key 0.7 Nm (0.52 lbf ft)±0.2 Nm (0.15 lbf ft). 5.3.7 Changing the installation position of the display module The installation position of the display can be changed in the case of the dual compartment housing, L-form. A0048401 Endress+Hauser...
  • Page 20 Screw this cover using the Allen key. onto the electronics compartment instead of the display cover. If fitted: tighten the screw of the cover lock using the Allen key Endress+Hauser...

  • Page 21: Closing The Housing Covers

     Is the measuring device protected against precipitation and sunlight?  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •  Ambient temperature •  Measuring range Endress+Hauser...

  • Page 22: Electrical Connection

    Please refer to the separate documentation on applications in hazardous areas for the safety instructions. For optimum electromagnetic compatibility: • Keep the potential matching line as short as possible • Observe a cross-section of at least 2.5 mm (14 AWG) Endress+Hauser...

  • Page 23: Connecting The Device

    A suitable circuit breaker must be provided for the device in accordance with IEC/EN61010-1 Device display and Bluetooth Depending on the supply voltage and current consumption (see the chart) • the background lighting is switched on or off • the Bluetooth function (order option) can be switched on or off optionally Endress+Hauser...

  • Page 24: Cable Specification

    Multimeter or ammeter The HART communication resistor of 250 Ω in the signal line is always necessary in the case of a low-impedance power supply. Take the voltage drop into consideration: Maximum 6 V for a 250 Ω communication resistor Endress+Hauser...

  • Page 25: Overvoltage Protection

    Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...

  • Page 26: Terminal Assignment

     4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803  5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...

  • Page 27: Cable Entries

    If necessary, create a drip loop or use a weather protection cover. 6.2.8 Available device plugs In the case of devices with a plug, it is not necessary to open the housing for connection purposes. Use the enclosed seals to prevent the penetration of moisture into the device. Endress+Hauser...

  • Page 28: Ensuring The Degree Of Protection

    • HAN7D plug, 90 degrees, IP65 NEMA Type 4X • M12 plug • When housing is closed and connecting cable is plugged in: IP66/67, NEMA Type 4X • When housing is open or connecting cable is not plugged in: IP20, NEMA Type 1 Endress+Hauser...

  • Page 29: Post-Connection Check

     Do the mounted cables have strain relief?  Cable glands mounted, securely tightened and leak-tight?  Does the supply voltage correspond to the specifications on the nameplate?  No reverse polarity, terminal assignment correct?  Cover screwed down correctly?  Cover lock tightened correctly? Endress+Hauser...

  • Page 30: Operation Options

    Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: The local display is suitable for configuring simple applications.

  • Page 31: Access To The Operating Menu Via The Local Display

    • Exit edit mode for a parameter without saving the changed value • Menu at a selection level: pressing the keys simultaneously takes the user back up a level in the menu • Press and hold the keys simultaneously to return to the upper level Endress+Hauser...

  • Page 32: Operation Via Bluetooth® Wireless Technology (Optional)

    Requirement • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The range of the connection is up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.

  • Page 33: Devicecare

    7.6.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S FieldCare 7.7.1...

  • Page 34: System Integration

    Application → HART output → HART output In a HART Multidrop loop, only one device may use the analog current value for signal transmission. For all other devices in the "Loop current mode" parameter, select the Disable option. Endress+Hauser...

  • Page 35: Commissioning

    Transmitter power supply unit, e.g., RN42 Connection for Commubox FXA195 and AMS Trex device communicator AMS Trex device communicator Computer with operating tool (e.g., DeviceCare/FieldCare, AMS Device View, SIMATIC PDM) Commubox FXA195 (USB) Field Xpert SMT70 Bluetooth modem with connecting cable (e.g., VIATOR) Transmitter Endress+Hauser...

  • Page 36: Via Service Interface (Cdi)

    A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Configuring the device address via software See "HART address" parameter Enter the address to exchange data via the HART protocol.

  • Page 37: Device Configuration

    The Save reference curve parameter in the Echo curve submenu is used to record the Echo curve. Diagnostics → Echo curve → Save reference curve ‣ Under the Save reference curve parameter, activate the Customer reference curve option "Simulation" submenu Simulation of a process variable, a pulse output or a diagnostic event. Endress+Hauser...

  • Page 38: Operation

    The Heartbeat submenu is only available when operating via FieldCare, DeviceCare or the SmartBlue app. It contains the wizards that are provided with the Heartbeat Verification and Heartbeat Monitoring application packages. Documentation on the Heartbeat Technology: Endress+Hauser website: www.endress.com → Downloads.

  • Page 39: Diagnostics And Troubleshooting

    Remedial action: Check the setting of the COM port on the computer and correct it if necessary Device measuring incorrectly Possible cause: Parameter configuration error Remedial action: Check and correct the parameter configuration 11.2 Error - SmartBlue operation Operation via SmartBlue is only possible on devices that have a display with Bluetooth (optionally available). Endress+Hauser...

  • Page 40: Diagnostic Information On Local Display

    Remedial action: The standard user name is "admin" and the password is the device serial number indicated on the device nameplate (only if the password was not changed by the user beforehand) If the password has been forgotten, contact Endress+Hauser Service (www.addresses.endress.com) Connection via SmartBlue not possible •...
  • Page 41 Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the corresponding status symbol is displayed in front of the diagnostic event. Endress+Hauser...

  • Page 42: Diagnostic Event In The Operating Tool

    Navigation: Diagnostics → Diagnostic settings → Configuration 11.6 Queued diagnostic messages The display alternates between the queued diagnostic messages and the measured value. Queued diagnostic messages can also be displayed in the Active diagnostics parameter. Navigation: Diagnostics → Active diagnostics Endress+Hauser...

  • Page 43: Diagnostic List

    Memory content 1. Restart device Warning inconsistent 2. Contact service Electronics and 1. Restart device Alarm HistoROM defective 2. Replace electronics and HistoROM 3. Contact service Diagnostic of configuration Data transfer failed 1. Retry data transfer Alarm 2. Check connection Endress+Hauser...
  • Page 44 HART Non-Primary Check device specific diagnosis. Warning Variable Out of Limit HART Primary Variable Check device specific diagnosis. Warning Out of Limit HART Device Variable Check device specific diagnosis. Warning Alert Echo lost Check parameter ' D C value' Warning Endress+Hauser...

  • Page 45: Event Logbook

    11.9.2 Filtering the event logbook Filters can be used to determine which category of event messages is displayed in the Event list submenu. Navigation: Diagnostics → Event logbook Filter categories • All • Failure (F) • Function check (C) Endress+Hauser...

  • Page 46: Overview Of Information Events

    Safety mode off I1956 Reset 11.10 Resetting the device 11.10.1 Resetting the device via the operating tool Reset the device configuration - either entirely or in part - to a defined state Navigation: System → Device management → Reset device Endress+Hauser...

  • Page 47: 11.10.2 Resetting The Device Via Keys On The Electronic Insert

    Press operating key I and operating key II simultaneously for at least 12 s.  Device data are reset to the factory setting, the LED flashes briefly. 11.11 Device information All the device information is contained in the Information submenu. Navigation: System → Information Endress+Hauser...

  • Page 48: 11.12 Firmware History

     For details see the "Description of device parameters" documentation. 11.12 Firmware history The firmware version can explicitly be ordered via the product structure. This makes it possible to ensure the compatibility of the firmware version with an existing or planned system integration. 11.12.1 Version 01.00.zz Original software Endress+Hauser...

  • Page 49: Maintenance

    • Observe the degree of protection of the device 12.2 Seals The process seals, located on the process connection of the device, should be replaced periodically. The interval between changes depends on the frequency of the cleaning cycles, the cleaning temperature and the medium temperature. Endress+Hauser...

  • Page 50: Repair

    Repair concept Endress+Hauser repair concept • The devices have a modular design • Repairs can be carried out by Endress+Hauser Service or by appropriately trained customers • Spare parts are grouped into logical kits with the associated replacement instructions For more information on service and spare parts, please contact your Endress+Hauser sales representative.

  • Page 51: Historom

    (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to the manufacturer for disposal under the applicable conditions. Endress+Hauser...

  • Page 52: Accessories

    The plastic weather protection cover is suitable for the single compartment housing made of aluminum. The delivery includes the holder for direct mounting on the housing. 115 (4.53) 140 (5.51) 32 (1.26) 165 (6.5) 140 (5.51) A0038280  14 Dimensions. Unit of measurement mm (in) Endress+Hauser...

  • Page 53: Mounting Bracket, Adjustable

    The mounting bracket can be ordered together with the device via the product structure "Accessory enclosed". A0048745  15 Ceiling or wall mounting 156 (6.14) 35 (1.38) 3 (0.12) 65 (2.56) 32.5 (1.28) 6 (0.24) 9 (0.35) A0048769  16 Dimensions of mounting bracket. Unit of measurement mm (in) Endress+Hauser...

  • Page 54: M12 Socket

    • 4 = BK = black • Order number: 52010285 14.5 Remote display FHX50B The remote display is ordered via the Product Configurator. If the remote display is to be used, the device version Prepared for display FHX50B must be ordered. Endress+Hauser...

  • Page 55: Gas-Tight Feedthrough

    For intrinsically safe HART communication with FieldCare via the USB interface For details, see "Technical Information" TI00404F 14.8 HART Loop Converter HMX50 Is used to evaluate and convert dynamic HART process variables to analog current signals or limit values. Endress+Hauser...

  • Page 56: Fieldport Swa50

    FDT-based plant asset management tool It can configure all smart field units in your system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition. Technical Information TI00028S Endress+Hauser...

  • Page 57: 14.15 Memograph M

    SD card or USB stick. Technical Information TI00133R and Operating Instructions BA00247R 14.16 RN42 Single-channel active barrier with wide-range power supply for safe electrical isolation of 4 to 20 mA standard signal circuits, HART transparent. Technical Information TI01584K and Operating Instructions BA02090K Endress+Hauser...

  • Page 58: Technical Data

    In principle, measurement is possible up to the tip of the antenna. To avoid any material damage from corrosive or aggressive media or deposit buildup on the antenna, the end of the measuring range should be selected 10 mm (0.4 in) before the tip of the antenna A. Endress+Hauser...
  • Page 59 The media groups and the possible measuring range are described as a function of the application and media group in the following section. If the dielectric constant of the medium is not known, to ensure a reliable measurement assume the medium belongs to group B. Endress+Hauser...
  • Page 60 For the dielectric constants (DC values) of many media commonly used in industry, please refer to: • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) Measurement in storage vessel Storage vessel - measuring conditions Calm medium surface (e.g.
  • Page 61 23 m (75 ft) C (ε 4 to 10) 40 m (131 ft) D (ε >10) 50 m (164 ft) Measurement in buffer vessel Buffer vessel - measuring conditions Moving medium surface (e.g. permanent free filling from above, mixing jets) Endress+Hauser...
  • Page 62 13 m (43 ft) C (ε 4 to 10) 28 m (92 ft) D (ε >10) 44 m (144 ft) Measurement in vessel with agitator Vessel with agitator - measuring conditions Turbulent medium surface (e.g. from filling from above, stirrers and baffles) Endress+Hauser...
  • Page 63 1.2 to 1.4) 1 m (3.3 ft) A (ε 1.4 to 1.9) 1.5 m (5 ft) B (ε 1.9 to 4) 3 m (10 ft) C (ε 4 to 10) 7 m (23 ft) D (ε >10) 11 m (36 ft) Endress+Hauser...

  • Page 64: Output

    • Minimum alarm (= factory setting): 3.6 mA • Maximum alarm: 22 mA Local display Status signal (according to NAMUR Recommendation NE 107): Plain text display Operating tool via service interface (CDI) Status signal (according to NAMUR Recommendation NE 107): Plain text display Endress+Hauser...
  • Page 65 Lmax Supply voltage Operation via handheld terminal or PC with operating program: take minimum communication resistor of 250 Ω into consideration. Protocol-specific data HART Manufacturer ID: 17 (0x11{hex}) Device type ID: 0x11C1 Device revision: HART specification: DD version: Endress+Hauser...
  • Page 66 • Not used Supported functions • Burst mode • Additional transmitter status • Device locking Wireless HART data Minimum start-up voltage: 10.5 V Start-up current: < 3.6 mA Starting time: < 15 s Minimum operating voltage: 10.5 V Multidrop current: 4 mA Endress+Hauser...

  • Page 67: Environment

    In the case of devices with plastic housings and CSA C/US approval, the selected process temperature range of –20 to +150 °C (–4 to +302 °F) is limited to 0 to +150 °C (+32 to +302 °F). Process temperature range: 0 to +150 °C (+32 to +302 °F), with CSA C/US approval Endress+Hauser...
  • Page 68 : +200 °C (+392 °F) |  T : +27 °C (+81 °F) = T : +200 °C (+392 °F) |  T : 0 °C (+32 °F) = T : 0 °C (+32 °F) |  T : 0 °C (+32 °F) Process temperature range: –40 to +80 °C (–40 to +176 °F) Endress+Hauser...
  • Page 69 : +80 °C (+176 °F) |  T : +75 °C (+167 °F) = T : +80 °C (+176 °F) |  T : 0 °C (+32 °F) = T : 0 °C (+32 °F) |  T : 0 °C (+32 °F) Process temperature range: –40 to +130 °C (–40 to +266 °F) Endress+Hauser...
  • Page 70 : +130 °C (+266 °F) |  T : +52 °C (+126 °F) = T : +130 °C (+266 °F) |  T : 0 °C (+32 °F) = T : 0 °C (+32 °F) |  T : 0 °C (+32 °F) Process temperature range: –40 to +150 °C (–40 to +302 °F) Endress+Hauser...
  • Page 71 : +150 °C (+302 °F) |  T : +25 °C (+77 °F) = T : +150 °C (+302 °F) |  T : 0 °C (+32 °F) = T : 0 °C (+32 °F) |  T : 0 °C (+32 °F) Process temperature range: –40 to +200 °C (–40 to +392 °F) Endress+Hauser...
  • Page 72 : +150 °C (+302 °F) |  T : +53 °C (+127 °F) = T : +150 °C (+302 °F) |  T : –20 °C (–4 °F) = T : –20 °C (–4 °F) |  T : –20 °C (–4 °F) Order option; process temperature range: –20 to +200 °C (–4 to +392 °F) Endress+Hauser...
  • Page 73 : +130 °C (+266 °F) |  T : +55 °C (+131 °F) = T : +130 °C (+266 °F) |  T : –40 °C (–40 °F) = T : –40 °C (–40 °F) |  T : –40 °C (–40 °F) Order option; process temperature range: –40 to +150 °C (–40 to +302 °F) Endress+Hauser...
  • Page 74 : +150 °C (+302 °F) |  T : +43 °C (+109 °F) = T : +150 °C (+302 °F) |  T : –20 °C (–4 °F) = T : –20 °C (–4 °F) |  T : –20 °C (–4 °F) Order option; process temperature range: –20 to +200 °C (–4 to +392 °F) Endress+Hauser...
  • Page 75 : +150 °C (+302 °F) |  T : +43 °C (+109 °F) = T : +150 °C (+302 °F) |  T : –40 °C (–40 °F) = T : –40 °C (–40 °F) |  T : –40 °C (–40 °F) Order option; process temperature range: –40 to +200 °C (–40 to +392 °F) Endress+Hauser...
  • Page 76 • HAN7D plug, 90 degrees, IP65 NEMA Type 4X • M12 plug • When housing is closed and connecting cable is plugged in: IP66/67 NEMA Type 4X • When housing is open or connecting cable is not plugged in: IP20, NEMA Type 1 Endress+Hauser...

  • Page 77: Process

    (–40 to +266 °F) The following temperature restriction applies for devices with the dust ignition-proof approval category 1D, 2D or 3D A0047831 PVDF encapsulated –20 to +80 °C (–4 to +176 °F) –1 to 3 bar (–14.5 to 43.5 psi) Endress+Hauser...
  • Page 78 –1 to 3 bar (–14.5 to 43.5 psi) A0047726 FFKM Kalrez –20 to +200 °C (–4 to +392 °F) –1 to 3 bar (–14.5 to 43.5 psi) The pressure range may be further restricted in the event of a CRN approval. Endress+Hauser...
  • Page 79 –1 to 20 bar (–14.5 to 290 psi) A0047833 The pressure range may be further restricted in the event of a CRN approval. Dielectric constant For liquids ε ≥  1.2 Contact Endress+Hauser for applications with lower dielectric constants than indicated. Endress+Hauser...

  • Page 80: Index

    Intended use ....... . 8 Workplace safety ......9 Endress+Hauser...
  • Page 81 Micropilot FMR60B HART Index Write access ....... 30 Endress+Hauser...
  • Page 84 *71575911* 71575911 www.addresses.endress.com...
