Geosense MEMS DPI I Instruction Manual page 27

MEMS Digital Portable Horizontal Inclinometer
V1.1
09/02/2022

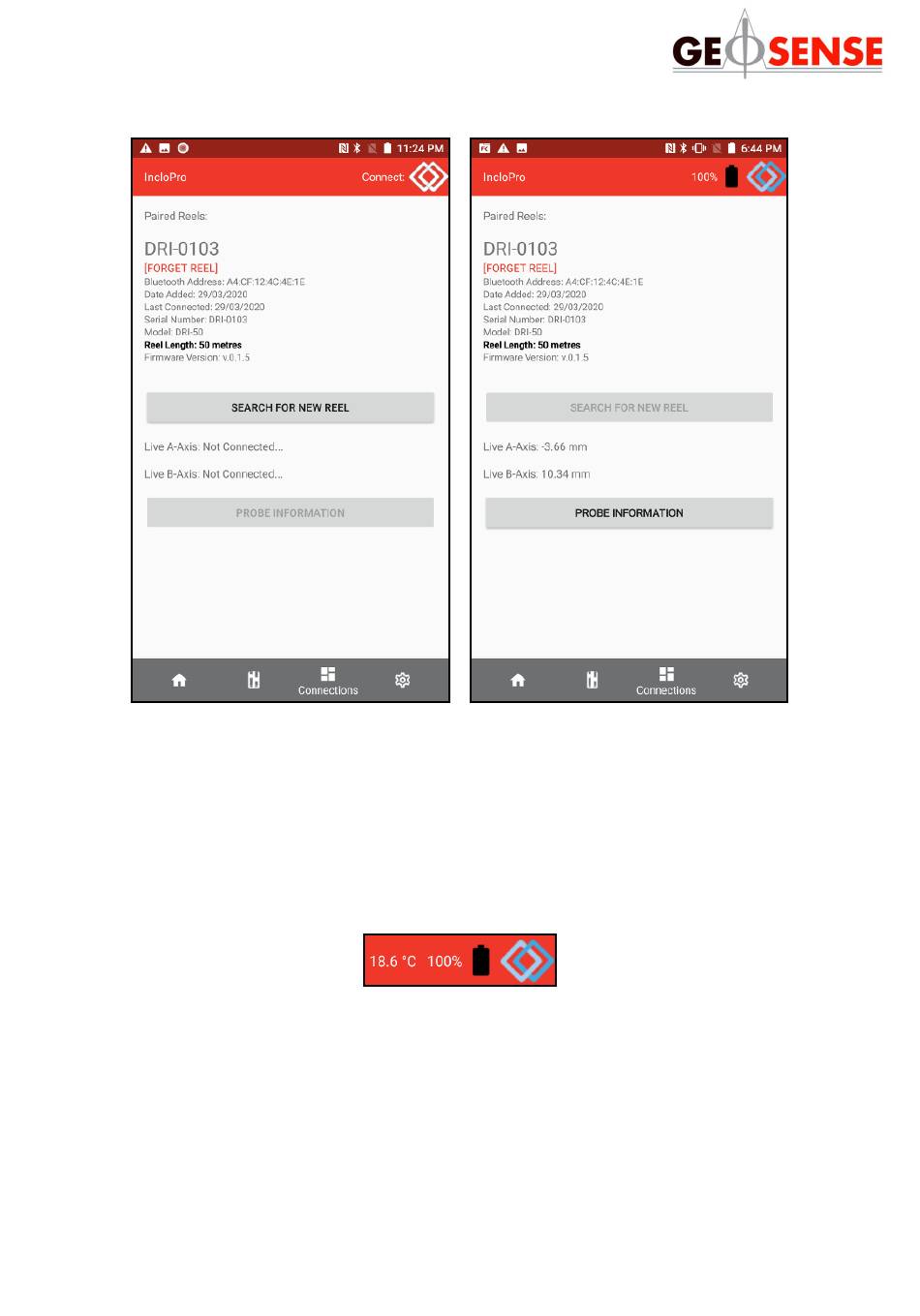

Figure 15: Paired Reels Screen
12) When using the App for the first time, it will be necessary to search for the
Reel to carry out this pairing operation. Once paired, the ASD memorises the
configuration. (Figure 15: Paired Reels Screen)
13) Tap the "Connect" icon to check the Bluetooth connection. When connected,
the connection is confirmed by displaying the Reel battery condition and the
Reel temperature.
In addition, Live probe readings are shown on the screen, above the PROBE
INFORMATION bar. (Figure 15: Paired Reels Screen)
Figure 16: Reel
Temperature, Reel Battery
Percentage and Reel
Connection Icon
26
