6.4.

Operational Modes

The Geosense® Portable Horizontal Inclinometer is designed to be used on
installations where either both ends, or only one end of the inclinometer casing is
accessible.

Installation where both ends are accessible

i.
Access End
Pull Rope
Fixed end
outside of ZoI

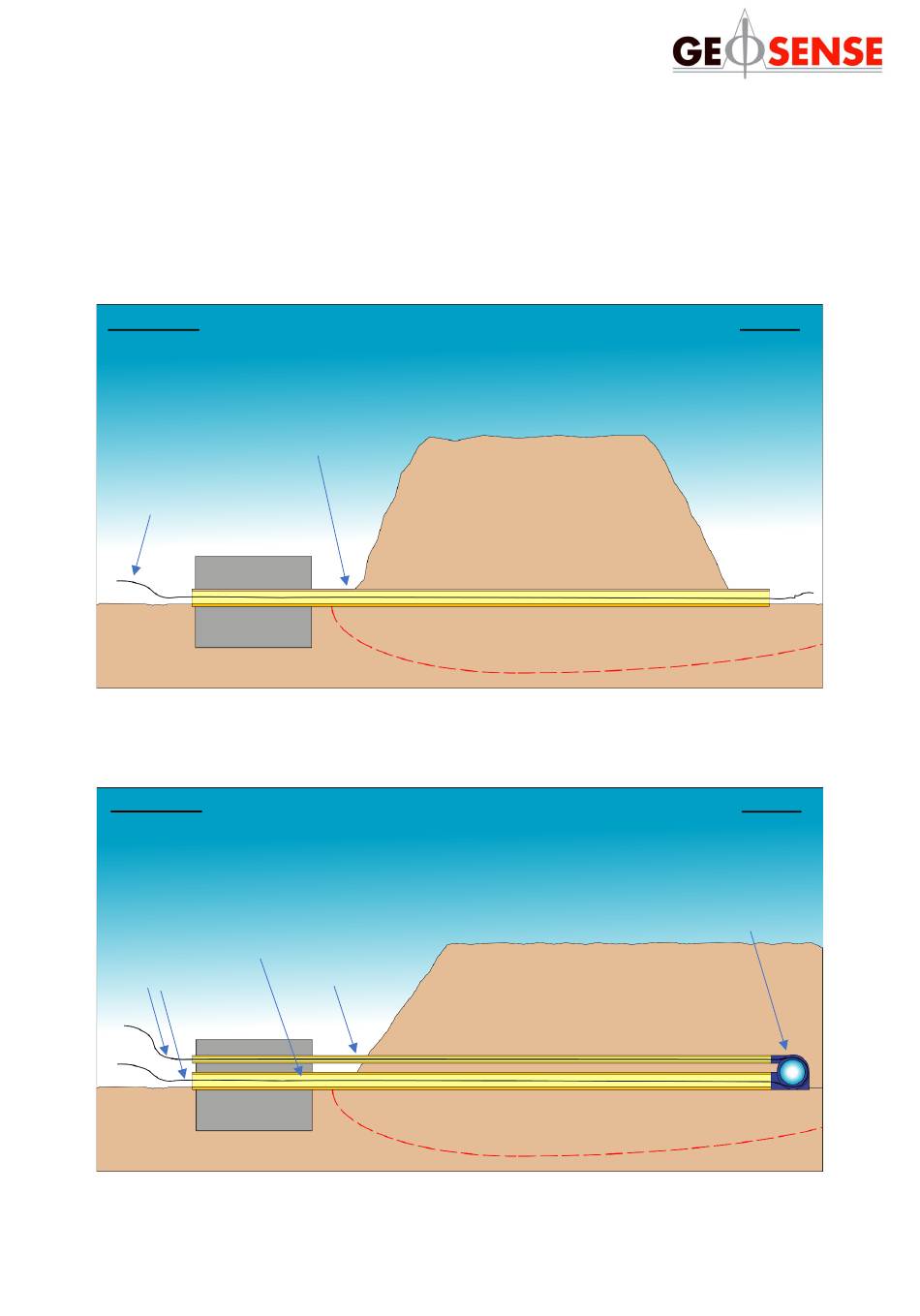

Figure 4: Inclinometer casing installation where both ends are accessible. A rope is run from one end
to the other to allow a second person to pull from the opposite end

Installation where single end is accessible

ii.
Access End
Inclinometer
Casing
Pull Rope
Fixed end
outside of ZoI
Figure 5: Inclinometer casing installation where only one end is accessible. A dead-end pulley is fitted
along with a further access tube to allow for the probe to be pulled to the far end using a rope
Inclinometer
Casing
Surcharge / Fill / Embankment
Rope
Casing
Zone of Influence
Surcharge / Fill / Embankment
Zone of Influence
14
Far End
Far End
Dead-end
Pulley
