7. OPERATION

This section of the manual is intended for all users of portable Geosense®
inclinometer equipment and is intended to provide guidance with respect to its use.
It must be remembered that no two installations will be the same and it is inevitable
that some 'fine tuning' of the following procedures will be required to suit specific site
conditions.
7.1.

System Components

The Geosense® Horizontal Portable Inclinometer consists of two carry cases. One
for the reel, and one for the sensor probe and ancillary equipment (Figure 8:
Inclinometer Carry Cases) (Figure 9: Inclinometer Probe Carry Case)

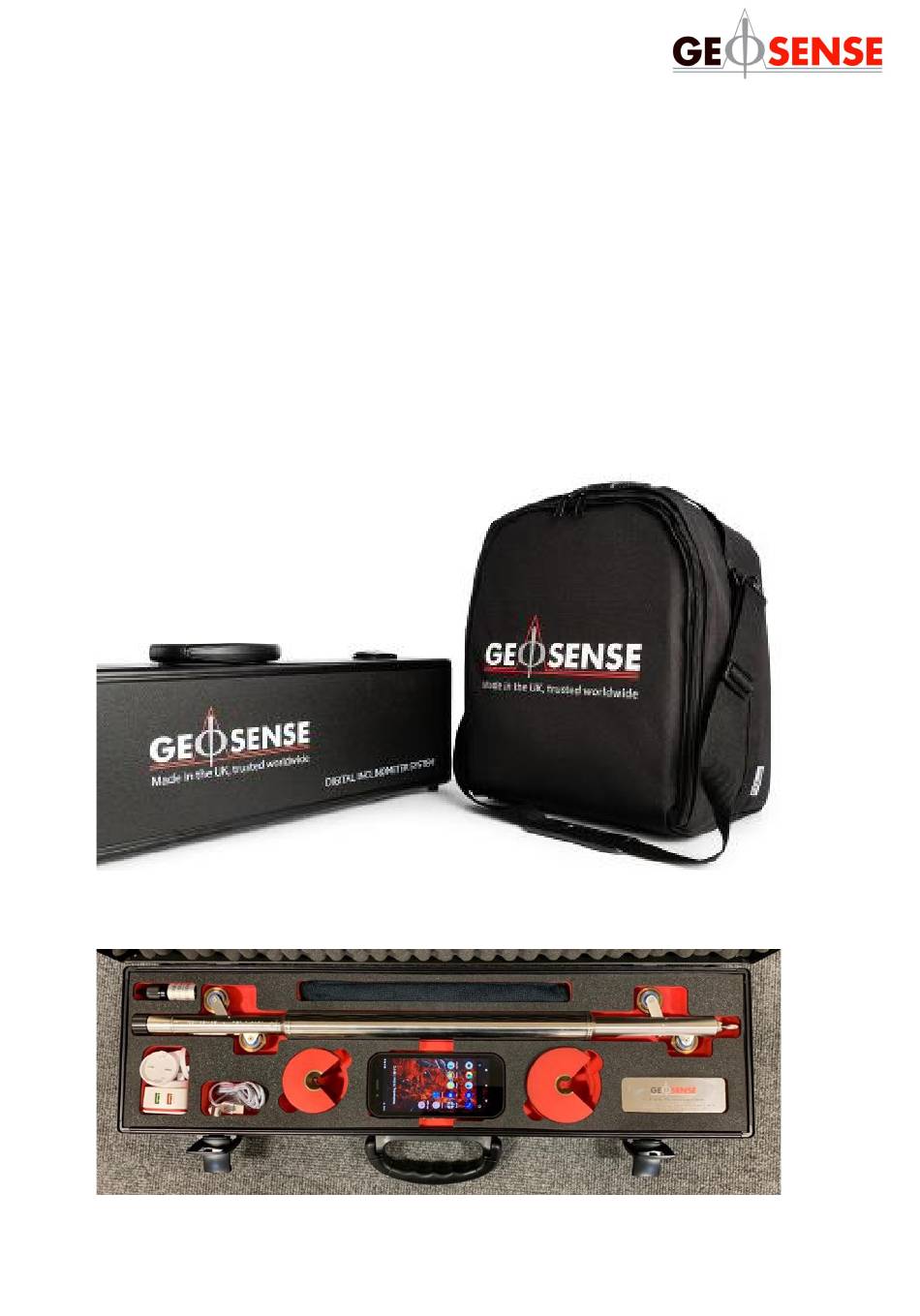

Figure 8: Inclinometer Carry Cases
Figure 9: Inclinometer Probe Carry Case
